- Supermicro SYS-110D-4C-FRDN8TP IoT Server 1U Barebone Embedded Intel Xeon D-2712T Processor
Supermicro SYS-110D-4C-FRDN8TP IoT Server 1U Barebone Embedded Intel Xeon D-2712T Processor
• Intel® QuickAssist Technology
• Networking Application, Firewall, uCPE, Telecom Application

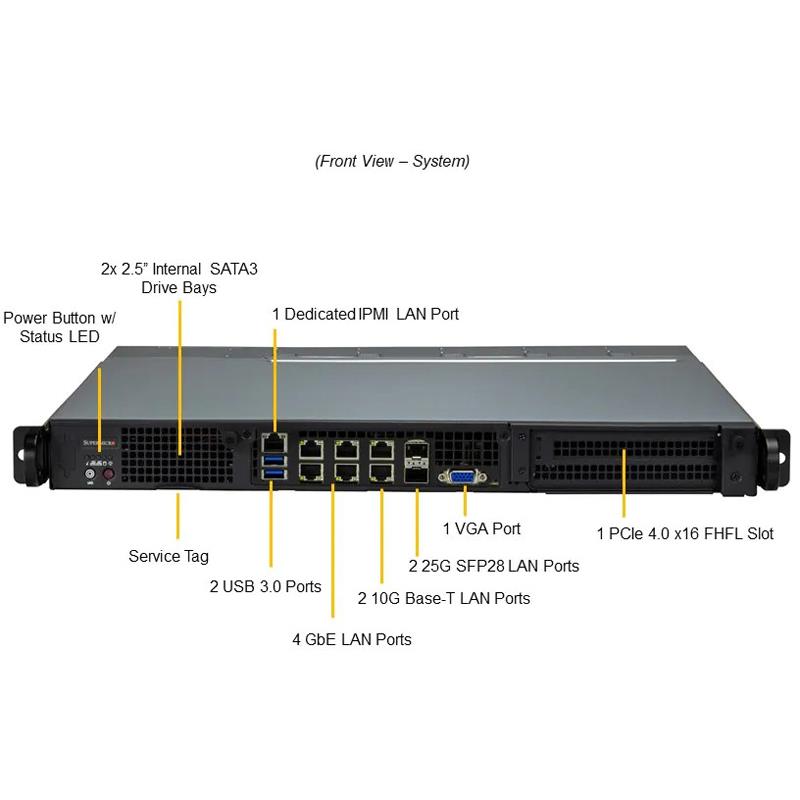

Barebone 1U Rackmount SuperServer, Embedded Intel Xeon D-2712T Processor, 1.90GHz 4-Core/4 thread. Up to 512GB DDR4-3200MHz RDIMM/LRDIMM in 4 DIMM slots, Chipset: Intel SoC, On-Board: SATA3 6Gbps via SoC controller (RAID), 2x Internal 2.5in SATA/PCIe drive bays, 1x M.2 NVMe OR 1 M.2 SATA3 (M-Key 2242/2280), 4x 1GbE LAN ports, 2x 25GbE SFP28 LAN ports, 2x 10GbE Base-T LAN ports, 1x IPMI, 1x SATA DOM, 600W DC Redundant Power Supply - (SYS-110D-4C-FRDN8TP + Super X12SDV-4C-SPT8F)
1. Intel® Xeon® Processor D-2712T, CPU TDP 65W
2. Up to 256GB Registered ECC RDIMM, DDR4-2667MHz; Up to 512GB LRDIMM LRDIMM, DDR4-2667MHz, in 4 DIMM slots
3. 2x Internal 2.5" drive bays(2x PCIe 4.0 NVMe x8 SlimSAS and 1x OCuLink options)
4. 4x GbE, 2x 25G SFP28 and 2x 10G Base-T
5. 1x M.2 M-Key 2242/2280 (SATA/PCIe 3.0 x4)
6. 5x 40x56mm Hot-swap Counter-rotation PWM Fans
7. Redundant 600 W, -48 Vdc
Extra Specifications for Supermicro SYS-110D-4C-FRDN8TP IoT Server 1U Barebone Embedded Intel Xeon D-2712T Processor
Motherboard | ||
Motherboard | Super X12SDV-4C-SPT8F | |
Processor | ||
CPU | Single FCBGA-2579 | |
Intel® Xeon® Processor D-2700 Series | ||
Support CPU TDP 65W | ||
System Memory | ||
Memory | Memory Capacity: 4 DIMM slots | |
Up to 256/512GB: ECC RDIMM/LRDIMM | ||
Memory Type: 2667MHz ECC DDR4 RDIMM/LRDIMM | ||
Memory Voltage | 1.2 V | |
Error Detection | ECC | |
On-Board Devices | ||
Chipset | Intel® SoC | |
Network Connectivity | 4x 1GbE GbE | |
2x 25GbE SFP28 | ||
2x 10GbE Base-T | ||
IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
Input / Output | ||
Video | 1 VGA port(s) | |
Management | ||
Software | SuperDoctor® 5 | |
IPMI 2.0 | ||
Power Configurations | Power-on mode for AC power recovery | |
ACPI Power Management | ||
PC Health Monitoring | ||
CPU | Monitors for CPU Cores, Chipset Voltages, Memory | |
FAN | Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control | |
Temperature | CPU thermal trip support, PEPI Monitoring for CPU and chassis environment | |
Chassis | ||
Form Factor | 1U Rackmount | |
Model | CSE-515M-R000NP2 | |
Dimensions and Weight | ||
Height | 1.7" (43mm) | |
Width | 17.2" (437mm) | |
Depth | 15.7" (399mm) | |
Package | 7.9" (H) x 26.7" (W) x 23.8" (D) | |
Weight | Net Weight: 18 lbs (8.16 kg) | |
Gross Weight: 29 lbs (13.15 kg) | ||
Available Color | Silver | |
Front Panel | ||
Buttons | UID button | |
Power On/Off | ||
LEDs | HDD activity | |
Power status | ||
LAN1 activity | ||
System information | ||
LAN2 activity | ||
Drive Bays / Storage | ||
Drive Bays | 2x 2.5" SATA/PCIe drive bays | |
M.2 | 1 M.2 NVMe OR 1 M.2 SATA3 | |
M-Key, 2242/2280 | ||
System Cooling | ||
Fans | 5 Counter-rotating, Hot-swappable 40x40x56mm Fan(s) | |
Power Supply | ||
Total Output Power | 600W : (-44) - (-65) Vdc | |
Dimension (W x H x L) | 54.5 x 40 x 220 mm | |
+12V | Max: 50A | |
5V SB | Max: 3A / Min: 0A | |
Certification | ||
Operating Environment | ||
Environmental Spec. | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | |
Operating Relative Humidity: 8% to 90% (non-condensing) | ||
Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F) | ||
Product SKUs | ||
Product SKUs | SYS-110D-4C-FRDN8TP | |
Expansion Slots | ||
PCI-Express (PCIe) | 1 PCIe Gen 4 x16 FHFL slot(s) |
Name | Part Number | Qty. | Description | |
---|---|---|---|---|
Motherboard / Chassis | MBD-X12SDV-4C-SPT8F | 1 | Super X12SDV-4C-SPT8F Motherboard | |
Motherboard / Chassis | CSE-515M-R000NP2 | 1 | 1U Chassis | |
Cable | CBL-0483L | 2 | 7pin SATA (STR to STR), 29cm, PBF | |
Cable | CBL-OTHR-1214-24 | 7 | FAN cbl,1x4,M, to 1x4,F,14CM,3A/pin,22AWG,RoHS | |
Cable | CBL-PWCD-0974 | 2 | 48VDC input power cable, 2M, 12AWG, 3 wires, RoHS/REACH,RoHS | |
Cable | CBL-0191L | 1 | FRONT CTL CABLE 20 PIN TO 20 PIN W/TUBE,50CM,PBF | |
Cable | CBL-PWCD-0160-IS | 2 | PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH | |
Fan | FAN-0207L4 | 5 | 40x40x56 mm, 13K-11K RPM,Counter-rotating, Hot-swappable Fan | |
Parts | MCP-260-00099-0B | 1 | 1U Black I/O Shield for A2SDi-TP8F with EMI Gasket | |
Parts | MCP-260-00078-0B | 1 | 1U I/O shield for X11 Server MB with 5X5mm vent hole and EMI Gasket, Black | |
Air Shroud | MCP-310-51504-0B | 1 | Mylar Air Shroud for SC515M + X11 SDW | |
Manual | MNL-2541-QRG | 1 | 110D-4C/8C/16C/20C-FRA(D)N8TP Quick Reference Guide | |
Power Supply | PWS-601D-1R | 2 | -48V DC input, 12V and 5Vsb 600W output for 1U redundancy | |
Riser Card | RSC-S-6G4 | 1 | 1U LHS Standard riser card with one PCIe 4.0 x16 slot,HF,Ro | |
*Power Distributor | PDB-PT515M-2424 | 1 | 1U support redundancy up to 800W for SC515M chassis with ATX | |
*Drive Tray(s) | MCP-220-00137-0N | 1 | Dual 2.5 HDD bracket (bracket base follow std 2.5 | |
*Rear Window | MCP-240-51505-0N | 1 | Rear window for SC515M Redundant PWS chassis | |
*Front Panel | MCP-280-80901-0N | 1 | SC809 FRONT CONTROL PANEL ASSY | |
*Rail Set | MCP-290-00102-0N | 1set | Outer rail, quick-release type, 25.6 | |
*Rail Set | MCP-290-00108-0B | 1 set | Inner rail, front, short (quick) for 1U 17.2 | |
*Fan Holder | MCP-320-51501-0N | 2 | 1U hot-swap 4056 dummy fan tray for SC515M (no venting hole) | |
*Fan Holder | MCP-320-51502-0N | 1 | 1U hot-swap 4056 fan tray for FAN-0207L4 in SC515M (with venting hole) |
Note:
• Parts with * are inside the chassis
• Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
