- Supermicro SYS-510D-4C-FN6P IoT Server 1U Barebone Embedded Intel Xeon D-1718T Processor

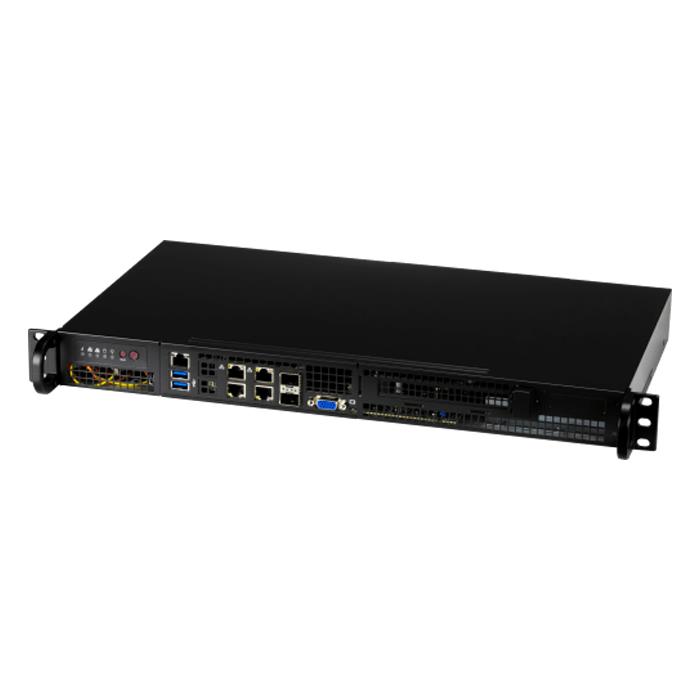

Supermicro SYS-510D-4C-FN6P IoT Server 1U Barebone Embedded Intel Xeon D-1718T Processor
• Retail Application, Firewall, Gateway, uCPE
Barebone 1U Rackmount SuperServer, Embedded Intel Xeon D-1718T Processor, 2.60GHz 4-Core/8 thread. Up to 256GB DDR4-2933MHz RDIMM in 4 DIMM slots, Chipset: Intel SoC, On-Board: SATA3 6Gbps via SoC controller (RAID), 4x Internal 2.5in SATA/PCIe drive bays, 1 M.2 NVMe OR 2 M.2 SATA3, (Key M,B,E, 2280/2230/3042/3052), 4x 1GbE LAN ports, 2x 25GbE SFP28 LAN ports, 1x IPMI, 1 SATA DOM, 200W Power Supply - (SYS-510D-4C-FN6P + Super X12SDV-4C-SP6F)
1. Intel® Xeon® Processor D-1718T, CPU TDP 46W
2. Up to 256GB Registered ECC RDIMM, DDR4-2933MT/s, in 4 DIMM slots
3. 4 GbE and Dual 25G SFP28
4. 1 Internal 3.5" or 4 Internal 2.5" drive bays
5. 3x 40x28mm 4-PIN PWM fans
6. 200W Low-noise AC-DC power supply
7. 1x VGA, 2 USB 3.0
Extra Specifications for Supermicro SYS-510D-4C-FN6P IoT Server 1U Barebone Embedded Intel Xeon D-1718T Processor
| Motherboard | ||
| Motherboard | Super X12SDV-4C-SP6F | |
| Processor | ||
| CPU | Single FCBGA-2227 | |
| Intel® Xeon® Processor D-1700 Series | ||
| Support CPU TDP 46W | ||
| System Memory | ||
| Memory | Memory Capacity: 4 DIMM slots | |
| Up to 256GB: ECC RDIMM | ||
| Memory Type: 2933MHz ECC DDR4 RDIMM | ||
| Memory Voltage | 1.2 V | |
| Error Detection | ECC | |
| On-Board Devices | ||
| Chipset | Intel® SoC | |
| Network Connectivity | 4x 1GbE GbE | |
| 2x 25GbE SFP28 | ||
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Input / Output | ||
| Video | 1 VGA port(s) | |
| Management | ||
| Software | SuperDoctor® 5 | |
| IPMI 2.0 | ||
| Power Configurations | Power-on mode for AC power recovery | |
| ACPI Power Management | ||
| PC Health Monitoring | ||
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory | |
| FAN | Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control | |
| Temperature | CPU thermal trip support, PEPI Monitoring for CPU and chassis environment | |
| Chassis | ||
| Form Factor | Mini-1U | |
| Model | CSE-505-203B | |
| Dimensions and Weight | ||
| Height | 1.7" (43mm) | |
| Width | 17.2" (437mm) | |
| Depth | 9.8" (249mm) | |
| Package | 6.1" (H) x 25.8" (W) x 18.3" (D) | |
| Weight | Gross Weight: 10 lbs (4.54 kg) | |
| Available Color | Black | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| System Reset button | ||
| LEDs | Power LED | |
| System Information LED | ||
| Network activity LEDs | ||
| Information LED (temp., status) | ||
| Hard drive activity LED | ||
| Drive Bays / Storage | ||
| Drive Bays | 4x 2.5" SATA/PCIe drive bays | |
| M.2 | 1 M.2 NVMe OR 2 M.2 SATA3 | |
| M,B,E, 2280/2230/3042/3052 | ||
| System Cooling | ||
| Fans | 4x 4-PIN PWM 40x28mm Fan(s) (optional) | |
| Power Supply | ||
| Dimension (W x H x L) | 76.5 x 40.3 x 192.8 mm | |
| AC Input | 200W: 100-240Vac / 2.6A Max / 50-60Hz | |
| +12V | Max: 16A / Min: 0A (100Vac-240Vac) | |
| Certification | Gold Level | |
| Operating Environment | ||
| Environmental Spec. | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F) | ||
| Product SKUs | ||
| Product SKUs | SYS-510D-4C-FN6P | |
| Expansion Slots | ||
| PCI-Express (PCIe) | 1 PCIe Gen 4 x16 FHHL slot(s) | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X12SDV-4C-SP6F | 1 | Super X12SDV-4C-SP6F Motherboard | |
| Motherboard / Chassis | CSE-505-203B | 1 | Mini-1U Chassis | |
| Cable | CBL-SAST-0538 | 2 | 7pin SATA (STR to RA),29cm,PBF | |
| Cable | CBL-0087 | 1 | CBL,FRONT CNTL,16 TO 16 PIN,Ribbon,50CM | |
| Cable | CBL-0260L | 1 | US POWER CORD 18 AWG, PBF | |
| Fan | FAN-0065L4 | 3 | 4028mm 13K RPM 4-PIN PWM FAN for SC813MF, SC113M | |
| Drive Tray(s) | MCP-220-00051-0N | 2 | Single 2.5 | |
| Rear Window | MCP-240-00091-0N | 2 | 1U universal riser card bracket for standard chassis,HF,RoHS/REACH,PBF | |
| Parts | MCP-260-00100-0B | 1 | 1U I/O Shield | |
| Parts | MCP-260-00064-0B | 1 | 1U I/O shield for X9/X10 STD Server I/O use in SC510, SC505, SC504 with EMI Gasket,RoHS/REACH,PBF | |
| Parts | MCP-290-51001-0N | 1 | SC510 card retainer | |
| Fan Holder | MCP-320-81302-0B | 3 | Optional fan tray for one 40x28mm fan in SC813T/SC813LT-single PWS (Fan tray only) | |
| Manual | MNL-2530-QRG | 1 | 510D-4C/8C/10C-FN6P Quick Reference Guide | |
| Riser Card | RSC-S-6G4 | 1 | 1U LHS Standard riser card with one PCIe 4.0 x16 slot,HF,Ro | |
| *Power Supply | PWS-203-1H | 1 | 1U 200W Multi-output 80Plus Gold PWS | |
| *Front Panel | FPB-FP813-D | 1 | Front control board dual color for SC815,SC813M (C) |
