| Motherboard |
| Motherboard | Super X12SDV-4C-SP6F |
| Processor |
| CPU | Single FCBGA-2227 |
| Support CPU TDP 46W |
| Intel® Xeon® Processor D-1718T, 4 Cores/8 Threads |
| Cores | Up to 4C/8T; Up to 10MB Cache |
| System Memory |
| Memory | Memory Capacity: 4 DIMM slots |
| Up to 256GB: DDR4 RDIMM;UDIMM ECC |
| Memory Type: 2933MHz ECC DDR4 RDIMM;UDIMM |
| Memory Voltage | 1.2 V |
| Error Detection | ECC |
| On-Board Devices |
| Chipset | Intel® SoC |
| Network Connectivity | 2x 25GbE SFP28 |
| 4x 1GbE BaseT with Intel® i210-AT and Intel® I350-AM2 |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Input / Output |
| Video | 1 VGA port(s) |
| LAN | 1 RJ45 Dedicated IPMI LAN port |
| 4 RJ45 GbE LAN ports |
| 2 SPF28 25GbE |
| USB | 2 USB 3.0 port(s) (2 USB) |
| System BIOS |
| BIOS Type | AMI 32MB UEFI |
| BIOS Features | UEFI 2.7 |
| ACPI 6.3 |
| PCI FW 3.0 |
| SMBIOS 3.3 |
| Management |
| Software | Watch Dog |
| SuperDoctor® 5 |
| IPMI 2.0 |
| Power Configurations | Power-on mode for AC power recovery |
| ACPI Power Management |
| Chassis |
| Form Factor | Mini-1U |
| Model | CSE-E300 |
| Dimensions and Weight |
| Height | 1.7" (43mm) |
| Width | 10" (254mm) |
| Depth | 8.9" (226mm) |
| Package | 10.87" (H) x 15" (W) x 5.59" (D) |
| Weight | Net Weight: 2.76 lbs (1.25 kg) |
| Gross Weight: 3.7 lbs (1.68 kg) |
| Available Color | Black |
| Front Panel |
| Buttons | UID button |
| Power On/Off |
| LEDs | HDD activity |
| Power status |
| LAN1 activity |
| System information |
| LAN2 activity |
| Drive Bays / Storage |
| Drive Bays | 1x 2.5" SATA drive bays (Optional) |
| M.2 | 1x E-Key 2230 (PCIe 3.0 x1 / USB2.0) |
| 1x B-Key 2280/3042/3052 (PCIe 3.0 x2 / SATA3.0 / USB3.0) |
| 1x M-Key 2280 (PCIe 3.0 x4 (NVMe) / SATA3.0) |
| System Cooling |
| Fans | 3x 4-PIN PWM 40x40x28mm Fan(s) |
| 2x 4-PIN PWM 40x40x28mm Fan(s) |
| Power Supply |
| AC Input | 180W: 100-240Vac / 15A Max / 47-63Hz |
| Operating Environment |
| Environmental Spec. | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F) |
| Product SKUs |

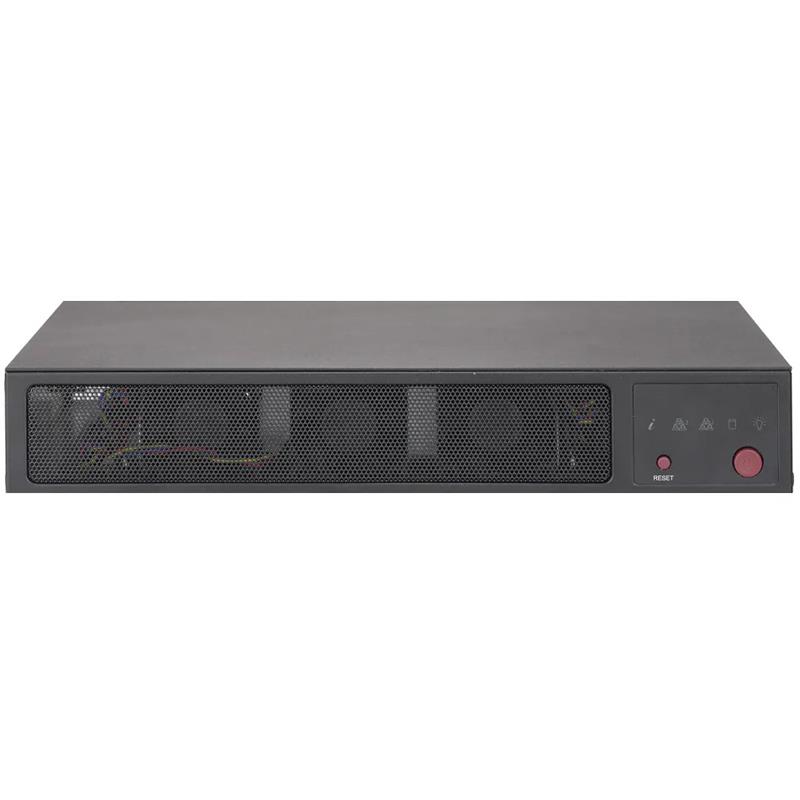

| Product SKUs | SYS-E300-12D-4CN6P |
| Expansion Slots |
| PCI-Express (PCIe) | 1 1x PCIe 4.0 x16 Low Profile slot(s) |
| Note | Either support expansion slot or one 2.5" drive. |
| Need to order optional riser card for expansion slot. |
