- Supermicro SYS-421GU-TNXR GPU 4U Barebone Dual Intel Xeon Scalable Processors 5th and 4th Generation

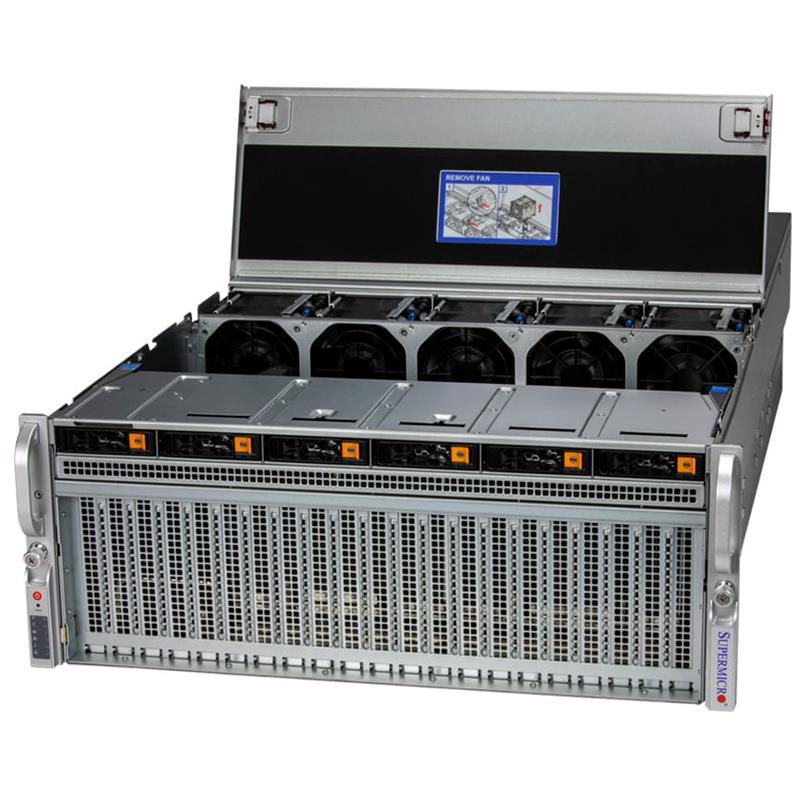

Supermicro SYS-421GU-TNXR GPU 4U Barebone Dual Intel Xeon Scalable Processors 5th and 4th Generation
• High Performance Computing
• AI/Deep Learning Training
• Large Language Model (LLM) Natural Language Processing
Barebone 4U Rackmount SuperServer, Supports Dual Socket E (LGA-4677), Supporting Intel Xeon Scalable Processors 5th and 4th Generation, Up to 56C/112T, Up to 112.5MB Cache per CPU. Intel C741 Chipset, Up to 8TB in 32 DIMM slots, RDIMM, Supported GPU: HGX H100 4-GPU SXM5 Multi-GPU Board, On-Board: Controller SATA3, 6x 2.5in Hot-swap NVMe/SATA Drive Bays (6x 2.5in NVMe Hybrid), 2 M.2 NVMe OR 2 M.2 SATA3, Network Connectivity : 2x 10GbE BaseT, IPMI 2.0 with virtual media over LAN and KVM-over-LAN support, 3000W Power Supply - (SYS-421GU-TNXR + X13DGU)
1. 32 DIMM slots Up to 8TB: 32x 256 GB DRAM Memory Type: 4800MHz ECC DDR5 32 DIMM slots Up to 8TB: 32x 256 GB DRAM Memory Type: 5600MTs ECC DDR5
2. 8 PCIe Gen 5.0 X16 LP Slots
3. Flexible networking options
4. 2 M.2 NVMe and SATA for boot drive only 6x 2.5" Hot-swap NVMe/SATA/SAS drive bays
Extra Specifications for Supermicro SYS-421GU-TNXR GPU 4U Barebone Dual Intel Xeon Scalable Processors 5th and 4th Generation
| Product SKUs | ||
| Product SKUs | SYS-421GU-TNXR | |
| Motherboard | ||
| Motherboard | Super X13DGU | |
| Processor | ||
| CPU | Dual Socket E (LGA-4677) | |
| 4th Gen Intel® Xeon® Scalable processors | ||
| Note | Supports up to 350W TDP CPUs (Liquid Cooled) | |
| Supports up to 350W TDP CPUs (Air Cooled) | ||
| GPU | ||
| Supported GPU | HGX H100 4-GPU SXM5 Multi-GPU Board | |
| CPU-GPU Interconnect | PCIe 5.0 x16 CPU-to-GPU Interconnect | |
| GPU-GPU Interconnect | NVIDIA® NVLink™ | |
| System Memory | ||
| Memory | Memory Capacity: 32 DIMM slots | |
| Up to 8TB: 32x 256 GB DRAM | ||
| Memory Type: 4800MHz ECC DDR5 DRAM | ||
| Memory Voltage | 1.1 V | |
| Error Detection | ECC | |
| On-Board Devices | ||
| Chipset | Intel® C741 | |
| Network Connectivity | 2x 10GbE BaseT with Intel® X710-AT2 | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Input / Output | ||
| Video | 1 VGA port(s) | |
| System BIOS | ||
| BIOS Type | AMI 32MB SPI Flash EEPROM | |
| Management | ||
| Software | Watch Dog | |
| NMI | ||
| KVM with dedicated LAN | ||
| Redfish API | ||
| SuperDoctor® 5 | ||
| Intel® Node Manager | ||
| IPMI 2.0 | ||
| SUM | ||
| SSM | ||
| SPM | ||
| OOB Management Package (SFT-OOB-LIC ) | ||
| Power Configurations | Power-on mode for AC power recovery | |
| ACPI Power Management | ||
| PC Health Monitoring | ||
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory | |
| 8+4 Phase-switching voltage regulator | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for fan connectors | ||
| Chassis | ||
| Form Factor | 4U Rackmount | |
| Model | CSE-458GTS-R3K06P | |
| Dimensions and Weight | ||
| Height | 7" (175.6mm) | |
| Width | 17.67" (449mm) | |
| Depth | 32.79" (833mm) | |
| Package | 14.57" (H) x 27.55" (W) x 49.6" (D) | |
| Weight | Net Weight: 105 lbs (48 kg) | |
| Gross Weight: 140 lbs (64 kg) | ||
| Available Color | Black Front & Silver Body | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| System Reset button | ||
| LEDs | Network activity LEDs | |
| Hard drive activity LED | ||
| Power status LED | ||
| System Overheat & Power Fail LED | ||
| Expansion Slots | ||
| PCI-Express (PCIe) | 8 PCIe 5.0 X16 slot(s) | |
| Drive Bays / Storage | ||
| Hot-swap | 6x 2.5" hot-swap NVMe/SATA drive bays (6x 2.5" NVMe hybrid) | |
| M.2 | 2 M.2 NVMe OR 2 M.2 SATA3 | |
| System Cooling | ||
| Fans | 5 heavy duty fans with optimal fan speed control | |
| Air Shroud | 1 Air Shroud(s) | |
| Liquid Cooling | Direct to Chip (D2C) Cold Plate (optional) | |
| Power Supply | ||
| AC Input | 3000W: | |
| DC Output | 3000W | |
| Output Type | Backplanes (connector) | |
| Certification | Titanium Level | |
| Operating Environment | ||
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X13DGU | 1 | Super X13DGU Motherboard | |
| Motherboard / Chassis | CSE-458GTS-R3K06P | 1 | 4U Chassis | |
| Backplane | BPN-NVME5-HE211N-S6 | 1 | 1U 6-port all hybrids backplane support up to 6x SAS3/SATA3/NVME5 storage devices | |
| Cable | CBL-0223L | 4 | BLADE PWS POWER CORD C-19 TO C-20, PBF | |
| Cable | CBL-CDAT-0680-55 | 1 | NCSI,2x10F to 2x10F,IDC,PH2.54,55cm,shield,28AWG,RoHS | |
| Cable | CBL-LPST-1395QQL4-100 | 2 | SlimSASLP x4 (STR to STR),95CM,32#,100 OHM,RoHS | |
| Cable | CBL-MCIO-1245M5FJ2 | 1 | MCIO x8 (STR to STR),FFC,Fold,45cm,30AWG,RoHS | |
| Cable | CBL-MCIO-1250M5FJ1 | 1 | MCIO x8 (STR to STR),FFC,Fold,50cm,30AWG,RoHS | |
| Cable | CBL-MCIO-1255M5 | 1 | MCIO x8 (STR to STR),55CM,30AWG,RoHS | |
| Cable | CBL-MCIO-1338RM5B1 | 2 | 2 MCIO X8 (RA to STR),35/38cm,32AWG,RoHS | |
| Cable | CBL-MCIO-1338RM5B2 | 2 | 2 MCIO X8 (RA to STR),27/36cm,32AWG,RoHS | |
| Cable | CBL-MCIO-1339RM5B1 | 2 | 2 MCIO x8 (RA to STR),29/39cm,32AWG,RoHS | |
| Cable | CBL-MCIO-1339RM5B2 | 2 | 2 MCIO x8 (RA to STR),32/37cm,32AWG,RoHS | |
| Cable | CBL-PWEX-1129-60 | 1 | Micro Hi,2x2,PH3.0 to ATXPWR,2x2F,60cm,8A/p,18AWG,RoHS | |
| Cable | CBL-PWEX-1131-30 | 4 | MicroHi (2x2 to 2x2),PH3.0,30CM,9.5A/p,18 AWG, RoHS | |
| Cable | CBL-PWEX-1141B-50 | 1 | MicroHi (2x4F to 2x4F), PH3.0, 50cm, 10.5 A/p, 16AWG, R | |
| Drive Tray(s) | MCP-220-00178-0B | 6 | 2.5 thin profile drive tray, Orange tab (for hotswap NVMe drive), for SC119UH | |
| Air Shroud | MCP-310-45809-0B | 1 | CSE-458G 4U Plastic Air Shroud for X13 MB | |
| Riser Card | RSC-G-66G5 | 2 | 1U LHS GPU Riser card with two PCIe 5.0 X16 slots,HF,Ro | |
| Riser Card | RSC-GR-66G5 | 2 | 1U RHS GPU Riser card with two PCIe 5.0 X16 slots,HF,Ro | |
| Software | SFT-OOB-LIC | 1 | License key for enabling OOB BIOS management | |
| Heatsink / Retention | SNK-P0088PB | 2 | 2U Proprietary L-shape Passive CPU HS for X13 Universal GPU System | |
| *Power Supply | PWS-3K06G-2R | 4 | AC-DC 3000W, Titanium efficiency, DC output: 54Vdc/45A | |
| *Power Distributor | PDB-PT458G-48 | 1 | Input 4 powers with 54V and 12V also 12Vsb pass through boar |
