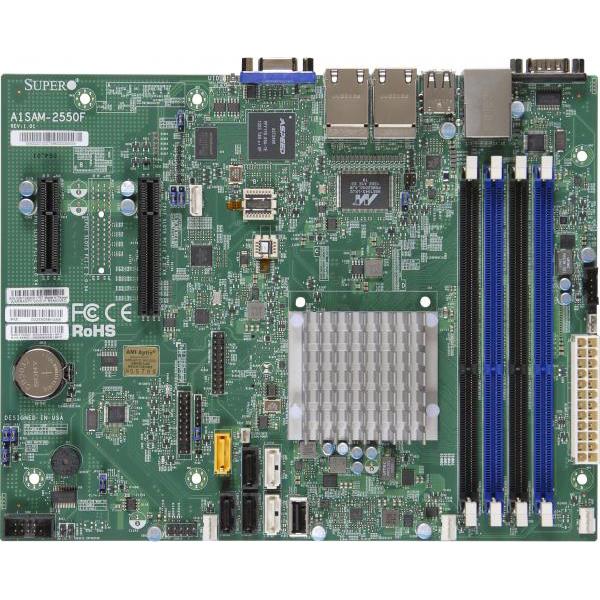

Supermicro A1SAM-2550F Motherboard mATX w/ Intel Atom C2550
Motherboard mATX w/ Intel Atom C2550

Supermicro A1SAM-2550F Motherboard mATX w/ Intel Atom C2550

  • Embedded Intel Atom C2550 processor

  • Features SoC controller for 4 SATA2 ports 2 SATA3 ports

  • Includes Quad LAN with SoC I354 Built in Quad LAN GbE MACs

  • Handles up to 64GB ECC/non-ECC UDIMM DDR3 memory across 4 DIMM slots

Motherboard MicroATX w/ Intel Atom C2550, System-on-Chip - Supports up to 64GB DDR3 up to 1600MHz (4x 240-pin DDR3 DIMM Socket) - Onboard : C2000 SoC SATA-600 / SATA-300 Controller, C2000 SoC 1354 4x Gigabit Ethernet Controller, IPMI with dedicated LAN, BMC Integrated Aspeed AST2400 VGA, 1x SATA DOM (Disk on Module) power connector - MBD-A1SAM-2550F

$ 310.50$ 310.50310.5USD

$ 310.50

Option not available

InStock
2 lb

Contact us for volume discounts

    This combination does not exist.

    Add to Cart

    1. Intel® Atom® Processor C2550 Single Socket FCBGA-1283 supported, CPU TDP support Up to 14W TDP
    2. System on Chip
    3. 64GB Unbuffered ECC/non-ECC UDIMM, DDR3-1600MHz, in 4 DIMM slots x8 data width
    4. 1 PCI-E 2.0 x8 1 PCI-E 2.0 x4
    5. 1 port
    6. SoC controller for 4 SATA2 (3 Gbps) ports; 2 SATA3 (6 Gbps)
    7. Quad LAN with SoC I354 Built in Quad LAN GbE MACs

    Extra Specifications for Supermicro A1SAM-2550F Motherboard mATX w/ Intel Atom C2550

    System Memory
    DIMM SizesN/A
    Memory Capacity4 DIMM slots
    64GB Unbuffered ECC/non-ECC UDIMM, DDR3-1600MHz
    Memory VoltageN/A
    Memory TypeN/A
    On-Board Devices
    ChipsetSystem on Chip
    Network ControllersQuad LAN with SoC, I354 Built in Quad LAN GbE MACs
    SATA2 SATA3 (6 Gbps) ports; RAID 0/1
    SoC controller for 4 SATA2 (3 Gbps) ports
    Graphics1 ASPEED AST2400 BMC port(s)
    Input / Output
    Others1 SMC SATA DOM built in power support
    USB7 USB 2.0 port(s) (2 via header; 1 Type A; 4 rear)
    Video Output1 port(s)
    Serial Port2 COM Port(s) (1 header; 1 rear)
    2 fast UART 16550 Serial
    TPM1 TPM Header
    System BIOS
    BIOS TypeAMI UEFI
    Product SKUs
    Product SKUsMBD-A1SAM-2550F
    Physical Stats
    Form FactormATX
    DimensionN/A
    Processor
    CPUIntel® Atom® Processor C2550
    Single Socket FCBGA-1283 supported, CPU TDP supports Up to 14W TDP
    Expansion Slots
    PCIe1 PCIe 2.0 x8
    1 PCIe 2.0 x4
    Management
    SoftwareSuperDoctor® 5, NMI, IPMI2.0 , Watchdog
    PC Health Monitoring
    VoltageSystem level control, Supports system management utility, Chassis intrusion header, +5V standby, +5V, +3.3V, +12V, +1.8V
    FANFan speed control
    PWM fan speed control
    System level control
    Thermal control tachometer fan connectors
    Overheat LED indication
    3x 4-pin fan headers (up to 3 fans)
    Other FeaturesWOL, UID, System level control, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, ATX Power connector, ACPI power management
    Operating Environment
    Operating Temperature Range0°C - 60°C (32°F - 140°F)

    Warranty:3 years labor, 1 year parts, 120 days advance replacement (doa)
    Coverage:Replacement or repair
    Average Service Time:Overnight replacement for 120 days, 2 weeks afterward
    E-mail:returnservices@wiredzone.com

    If you need Technical Support for this item please contact:

    Provider:Supermicro
    Type of Support:FULL
    Phone No.:408-503-8000
    URL:Click here for Manufacturer Website
