- Supermicro AOC-IBH-XDS InfiniBand Mezzanine Card Single Port 4x DDR 20-Gbps

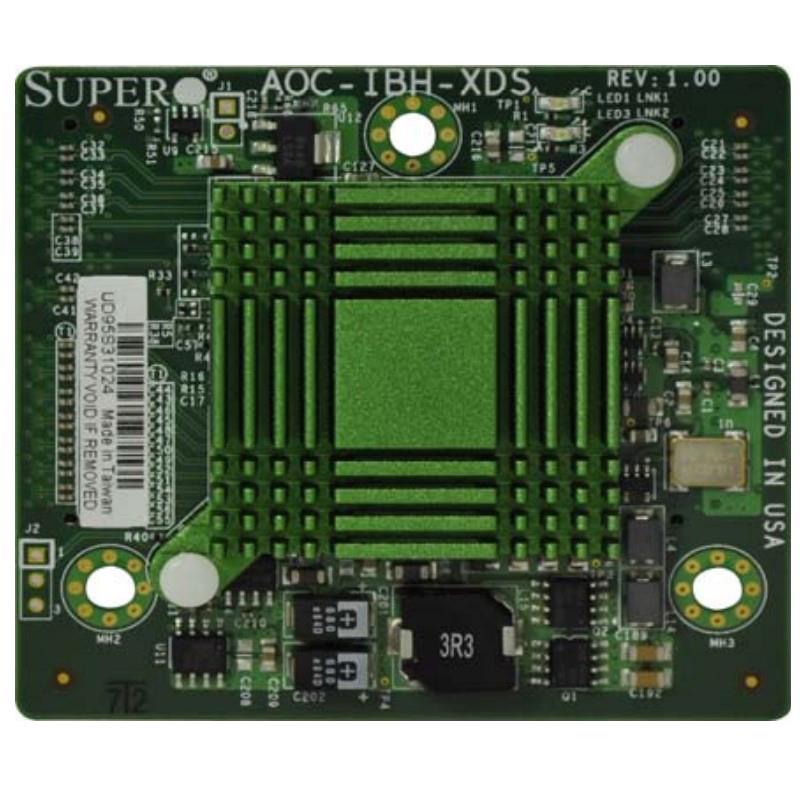

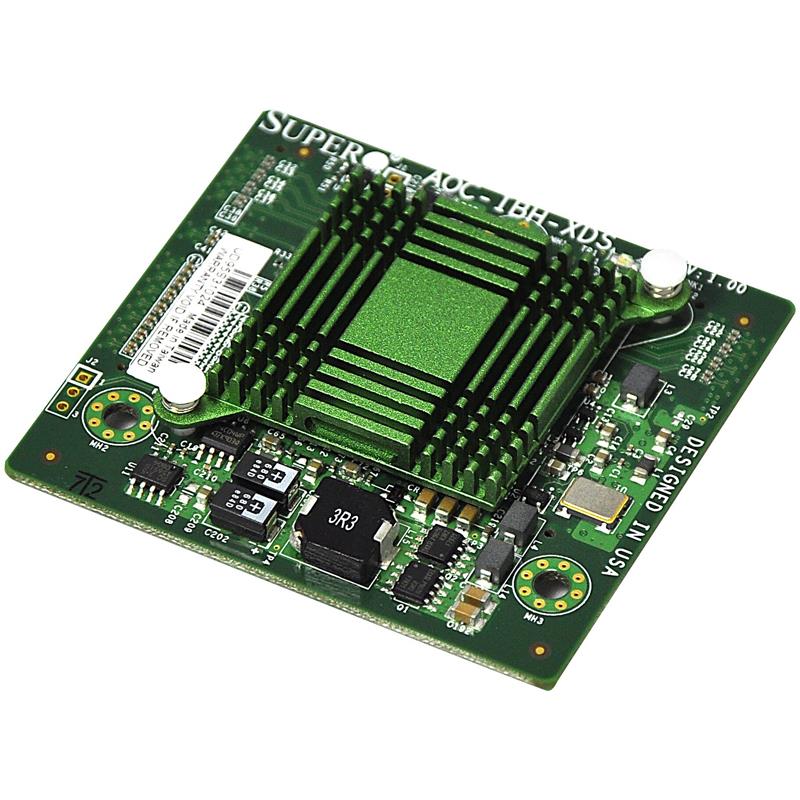

Supermicro AOC-IBH-XDS InfiniBand Mezzanine Card Single Port 4x DDR 20-Gbps
- Hardware-based I/O virtualization
- CPU offload of transport operations
- End-to-end QoS and congestion control
- One 20Gb/s InfiniBand port or 10Gb/s Ethernet port
InfiniBand mezzanine card, Single 20Gbs InfiniBand port or 10Gbs Ethernet port, Base on Mellanox ConnectX IB DDR Chip, Compatible with Supermicro SBM-XEM-002M and SBM-XEM-X10SM 10Gbps Ethernet switch - (AOC-IBH-XDS)
Single Port, Low Latency InfiniBand Adapter Cards For SuperBlade
AOC-IBH-XDS This InfiniBand mezzanine card for the SuperBlade delivers low-latency and high-bandwidth for performance-driven server and storage clustering applications in Enterprise Data Centers, High-Performance Computing, and Embedded environments. Clustered databases, parallelized applications, transactional services, and high-performance embedded I/O applications will achieve significant performance improvements resulting in reduced completion time and lower cost per operation. AOC-IBH-XDS simplifies network deployment by consolidating clustering, communications, storage, and management I/O and by providing enhanced performance in virtualized server environments. In addition to this outstanding InfiniBand capability, the AOC-IBH-XDS can be configured alternatively as a 10-Gigabit Ethernet NIC when used with the Supermicro SBM-XEM-002M 10-Gigabit Pass-Through module or the SBM-XEM-X10SM 10Gbps Ethernet switch.
Extra Specifications for Supermicro AOC-IBH-XDS InfiniBand Mezzanine Card Single Port 4x DDR 20-Gbps
| Main Specifications | ||
| Device Type | InfiniBand mezzanine card | |
| Interface | SuperBlade Mezzanine Card | |
| Port | Single 20Gb/s InfiniBand port or 10Gb/s Ethernet port | |
| InfiniBand | Mellanox ConnectX IB DDR Chip, Single 4X InfiniBand port, 20Gb/s, RDMA, Send/Receive semantics, Hardware-based congestion control, Atomic operations | |
| CPU Offloads | TCP/UDP/IP stateless offload, Intelligent interrupt coalescence, Full support for Intel I/OAT, Compliant to Microsoft RSS and NetDMA | |
| Storage Capacity | TIO compliant data integrity field support, Fibre Channel over InfiniBand or Fibre Channel over Ethernet | |
| On-Board Devices | ||
| Chipset | Mellanox ConnectX IB DDR Chip | |
| Connectivity | ||
| Connectivity | Interoperable with InfiniBand switches through SuperBlade InfiniBand Switch (SBM-IBS-001), Interoperable with 10 Gigabit Ethernet switches through SuperBlade 10G Ethernet Pass-Through Module (SBM-XEM-002) | |
| Networking | ||
| Hardware-based I/O Virtualization | Address translation and protection, Multiple queues per virtual machine, Native OS performance, Complimentary to Intel and AMD I/OMMU | |
| Software / System Requirements | ||
| OS Supported | Operating Systems/Distributions (InfiniBand): Novell, RedHat, Fedora and others, Microsoft Windows Server | |
| Operating Systems/Distributions (Ethernet): RedHat Linux | ||
| Environmental | ||
| Operating Environment | Operating Temperature: 0°to 50°C | |
| Miscellaneous | ||
| Compatible Servers | All Enterprise Blade Servers | |
| Compliant Standards | RoHS Compliant | |
| Warranty: | 3 years, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
