• 4U Active CPU Heat Sink
• Supported CPU TDP: Up to 95 Watts
• Fully tested and validated by Supermicro
• Designed for CPU E3-1200 v2/v3/v4/v5 Series

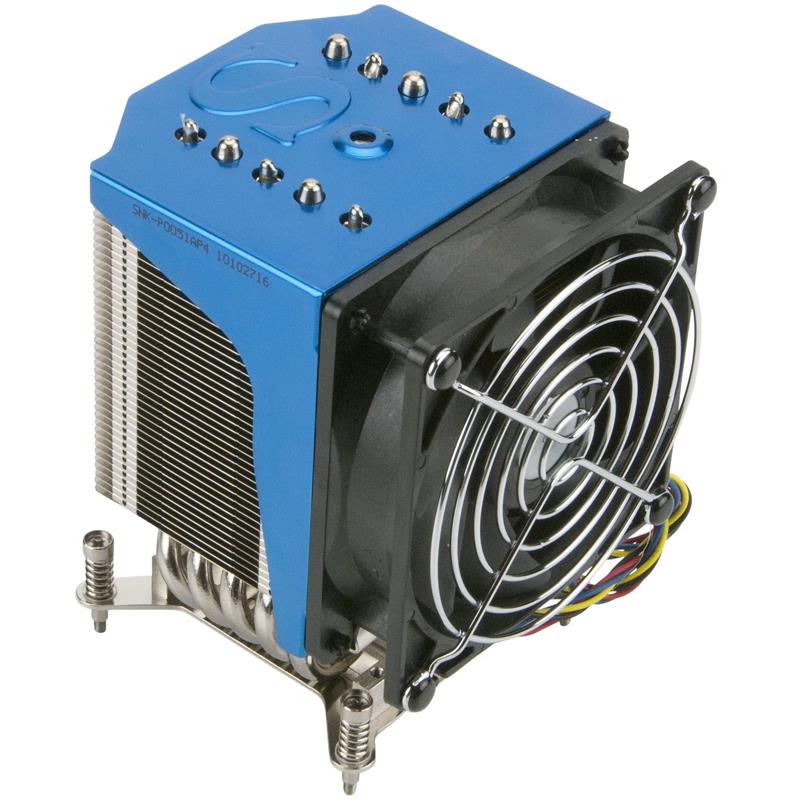

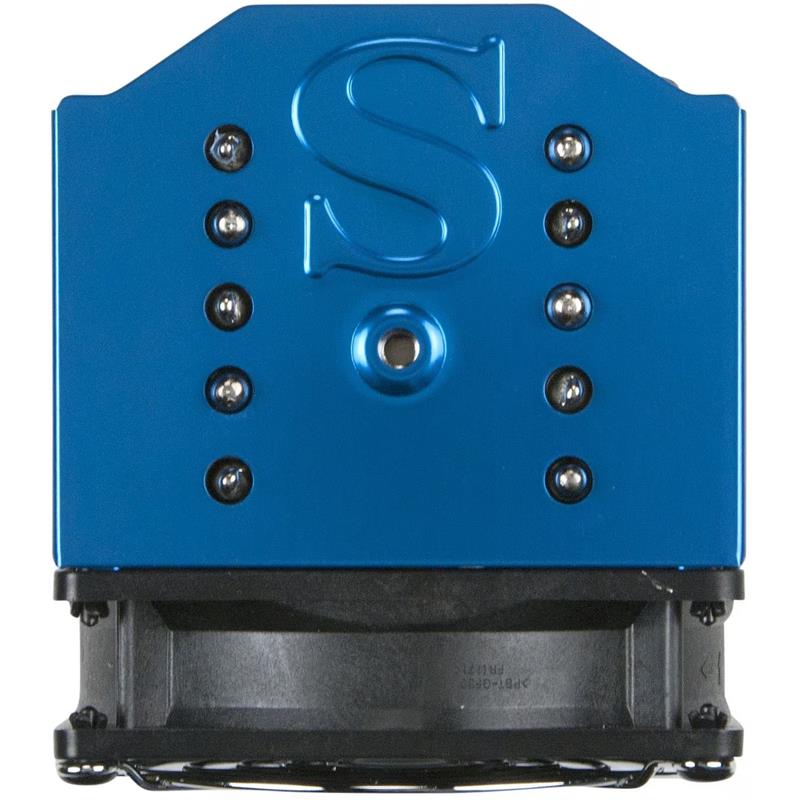

4U Active CPU Heatsink for Gaming and Socket H UP Systems, PBFree
This CPU fan heat sink is designed for Supermicro 4U servers/workstations equipped with Intel Xeon E3-1200 v2/v3/v4/v5 series processors. The heat sink has been fully tested and validated by Supermicro to ensure the best quality and cooling performance.
| Main Specifications | ||
| Device Type | Active CPU Heat Sink | |
| Form Factor | 4U | |
| Cooling Type | Active | |
| CPU Configuraton | Uni Processor | |
| Supported CPUs | Intel Xeon Processor E3-1200, E3-1200 v2, E3-1200 v3, E3-1200 v4, and E3-1200 v5 Series | |
| Supported CPU Socket | FCLGA1150, FCLGA1151, FCLGA1155 | |
| Supported CPU TDP | Up to 95 Watts | |
| Attached Cooling Fan | Speed Control: 4-pin PWM | |
| Rated Voltage: 12.0 VDC | ||
| Rated Speed: 3,800 RPM | ||
| Acoustic Noise: 38.0 dB(A) at Rated Speed | ||
| MTBF/MTTF: 108,798 Hours | ||
| Position: Front Side | ||
| Dimensions: 92L x 92H x 25W (mm) | ||
| Miscellaneous | ||
| Environmental Compliance | RoHS and REACH compliant | |
| Warranty: | 3 years, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | Supermicro |
| Type of Support: | FULL |
| Phone No.: | 408-503-8000 |
| URL: | Click here for Manufacturer Website |
