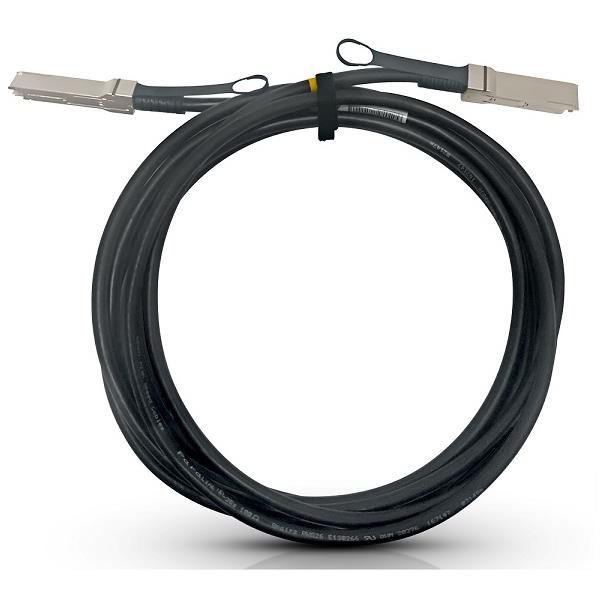

The Mellanox MCP1650-H0xxEyy DAC (Direct Attach Copper) cables are high-speed, cost-effective alternatives to fiber optics in 200Gb/s InfiniBand HDR applications.
The Mellanox QSFP56 passive copper cable1 contains eight high-speed copper pairs, each operating at data rates of up to 50Gb/s. Each QSFP56 port comprises an EEPROM providing product information, which can be read by the host system. Mellanox’s unique quality passive copper cable solutions provide power-efficient connectivity for short-distance interconnects. It enables higher port bandwidth, density and configurability at a low cost and reduced power requirements in the data centers.
Rigorous cable production testing ensures best out-of-the-box installation experience, performance and durability.
Key Features
IBTA IB HDR compliant
Up to 200Gb/s data rate
4x 50Gb/s PAM4 modulation
SFF-8665 compliant
Operating case temperature 0-70°C
Single 3.3V supply voltage
Enables BER (Bit Error Rate) better than 10-15 with Mellanox IB HDR systems
Hot-pluggable
RoHS compliant
LSZH (Low Smoke Zero Halogen) jacket
LF (Lead-Free) HF (Halogen Free) PCB
SFF-8636 compliant I2C management interface
