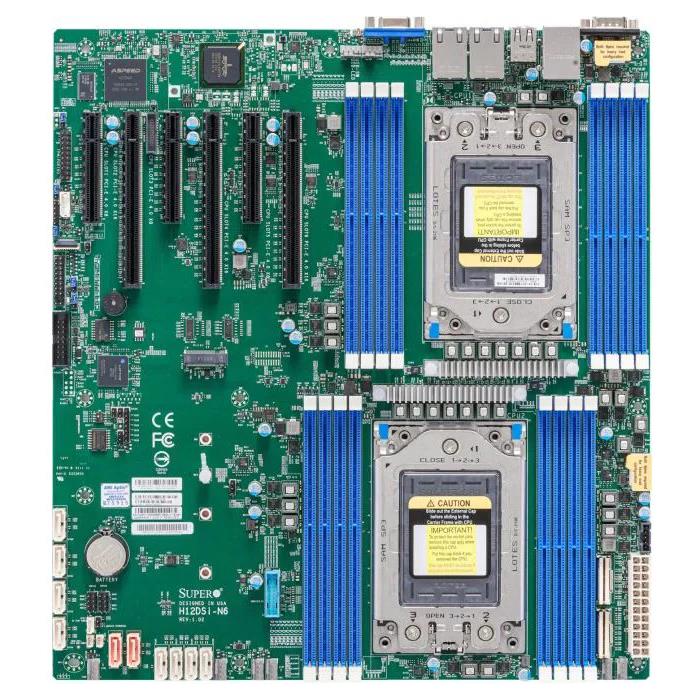

- Supermicro H12DSI-N6 Motherboard EATX Dual Socket (SP3) for AMD EPYC 7003/7002 Processors
Supermicro H12DSI-N6 Motherboard EATX Dual Socket (SP3) for AMD EPYC 7003/7002 Processors
Ideal for High-Density Data Center applications
Supports Dual AMD EPYC 7003/7002 Series Processors
Eight SATA3 ports, Four NVMe ports, Two SATA DOM ports
Offer Two 1Gbe ports (Broadcom 5720L), and 1 IPMI LAN Port
Motherboard EATX Supports Dual Socket SP3, Supporting AMD EPYC 7003/7002 Series Processors (Up to 64-Core). Up to 4TB DDR4-3200MHz DIMM in 16 DIMM slots - On-Board: SATA3 6Gbps controller - 2x 1GbE LAN ports, 1 RJ45 Dedicated IPMI LAN port, 2 SATA DOM, 3 PCI-E 4.0 x16 slots, 3 PCI-E 4.0 x8 slots, Form Factor: 2280, 22110 (Key: M-key) - (MBD-H12DSi-N6)
The H12DSi-N6 motherboards offer maximum I/O expandability, energy efficiency, and data reliability in a 7-nm process architecture, and is optimized for high-performance computing, NVMe storage solutions, and ideal for High-Density Data Center applications.
Key Features
Dual AMD EPYC 7003/7002 Series Processors (The latest AMD EPYC 7003 Series Processor with AMD 3D V-Cache Technology requires BIOS version 2.3 or newer)
4TB Registered ECC DDR4 3200MHz SDRAM in 16 DIMMs
Expansion slots: 3 PCI-E 4.0 x16 slots, 3 PCI-E 4.0 x8 slots
M.2 Interface: 1 PCI-E 4.0 x4
M.2 Form Factor: 2280, 22110
M.2 Key: M-key
10 SATA3, 2 SATADOM, 4 NVMe
Dual Gigabit LAN ports, 1 dedicated IPMI LAN Port
ASPEED AST2600 BMC graphics
2 USB 2.0 ports (rear), 4 USB 3.0 ports (2 rear, 2 headers)
8x 4-pin PWM Fans & Speed control
Extra Specifications for Supermicro H12DSI-N6 Motherboard EATX Dual Socket (SP3) for AMD EPYC 7003/7002 Processors
| Main Specifications | ||
| Device Type | Motherboard | |
| Form Factor | EATX | |
| Dimensions (WxDxH) | 12" x 13.05" (30.5cm x 33.1cm) | |
| Processor | ||
| Compatible Processors | Dual AMD EPYC 7003/7002 Series Processors (The latest AMD EPYC 7003 Series Processor with AMD 3D V-Cache Technology requires BIOS version 2.3 or newer) | |
| Compatible Socket | SP3 (4094-pin) | |
| Cores | Up to 64 Cores | |
| CPU | Monitors CPU Core Voltages, +1.5V, +1.8V, +12V, +5V, +5V standby, CPU switching voltage regulator, VBAT | |
| On-Board Devices | ||
| Chipset | System-on-Chip | |
| SATA/SAS | SATA3 (6 Gbps) | |
| IPMI | Support for Intelligent Platform Management Interface v. 2.0, IPMI 2.0 with virtual media over LAN and KVM-over-LAN support, ASPEED AST2600 BMC | |
| Network Controllers | Dual LAN via Broadcom BCM5720L Gigabit Ethernet Controller | |
| Graphics | ASPEED AST2600 BMC | |
| System Memory | ||
| Memory Capacity | 16 DIMM slots, Supports up to 4TB Registered ECC DDR4 3200MHz SDRAM, 8-channel memory bus, For Dual CPUs: Recommended that memory be populated equally in adjacent memory banks | |
| Memory Type | DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs | |
| DIMM Sizes | 8GB, 16GB, 32GB, 64GB, 128GB, 256GB | |
| Memory Voltage | 1.2 V | |
| Error Detection | Corrects single-bit errors, Detects double-bit errors (using ECC memory) | |
| Input / Output | ||
| SATA | 10 SATA3 (6 Gbps) ports | |
| LAN | 2x 1GbE LAN ports, 1 RJ45 Dedicated IPMI LAN port | |
| USB(s) | 2 USB 2.0 ports (rear), 4 USB 3.0 ports (2 rear, 2 headers) | |
| VGA | 1 VGA port | |
| Others | 1 COM port (rear), 2 SATA DOM power connectors, 4 PCI-E 4.0 NVMe x4 internal ports, TPM 2.0 header | |
| Expansion / Connectivity | ||
| Expansion Slots Total (Free) | 3 PCI-E 4.0 x16 slots, 3 PCI-E 4.0 x8 slots | |
| M.2 | Form Factor: 2280, 22110 | |
| Key: M-key | ||
| Interface: 1 PCI-E 4.0 x4 | ||
| Chassis Optimized for | ||
| 2U Chassis | SCLA25TQC-R609LP, SCLA26AC12-R920LP1 | |
| 3U Chassis | SC835TQC-R1K03B | |
| Miscellaneous | ||
| Compatible Servers | AS -2024S-TR | |
| System BIOS | ||
| BIOS Type | AMI 256Mb SPI Flash EEPROM | |
| BIOS Features | Plug and Play (PnP), DMI 2.3, PCI 2.2, ACPI 6.2, USB Keyboard Support, SMBIOS 3.1.1 | |
| Management | ||
| Software | Super Doctor 5, Watch Dog, NMI, SUM, IPMI 2.0, KVM with dedicated LAN | |
| Power Configurations | ACPI Power Management, Power-on mode control for AC power loss recovery | |
| FAN | Up to 8 fan status tachometer monitoring, Up to 8x 4-pin fan headers, Status monitor for speed control, Pulse Width Modulated (PWM) fan connectors | |
| PC Health Monitoring | ||
| Temperature | Monitoring for CPU and chassis environment, CPU Thermal Trip Support, Thermal control for 8x Fan connectors, I²C Temperature Sensing Logic | |
| LED | CPU / System Overheat LED | |
| Other Features | Chassis intrusion detection, Chassis intrusion header | |
| Environmental | ||
| Operating Environment | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Operating Temperature: 10°C to 35°C (50°F to 95°F) | ||
| Parts List | ||
| I/O Shield | 1x MCP-260-00042-0N | |
| I/O Cables | 2x CBL-0044L | |
| Warranty: | 3 years, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
| E-mail: | returnservices@wiredzone.com |
