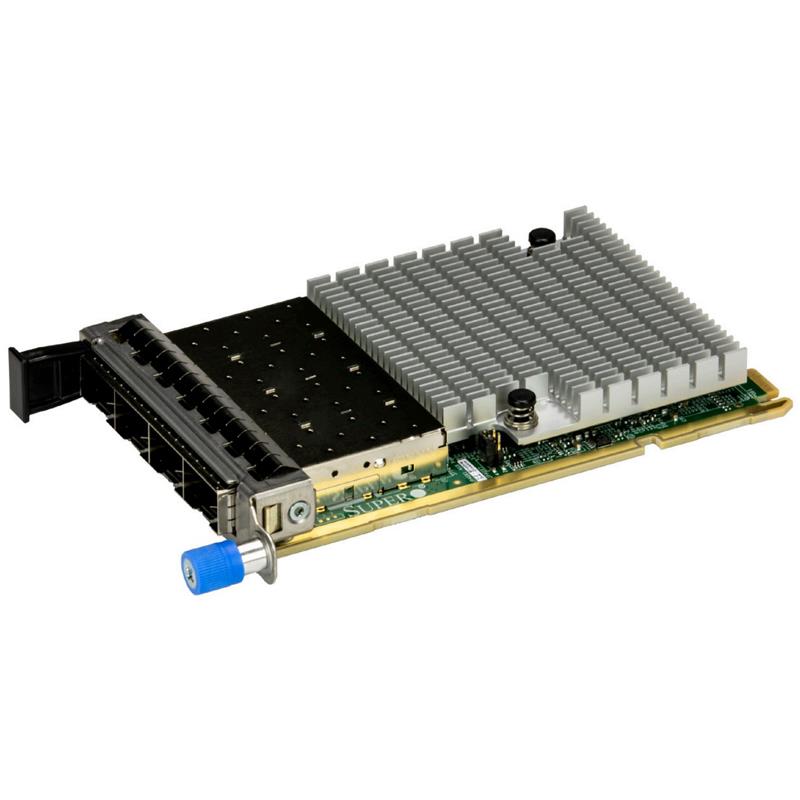

- Supermicro AOC-A25G-i4SM E810-CAM1 25GbE Network Adapter - Gen 4 PCIe x16 Quad-port SFP28 Connectors Advanced I/O Module (AIOM) OCP 3.0 Form Factor
Supermicro AOC-A25G-i4SM E810-CAM1 25GbE Network Adapter - Gen 4 PCIe x16 Quad-port SFP28 Connectors Advanced I/O Module (AIOM) OCP 3.0 Form Factor
Network Adapter Base on Intel Columbiaville E810-CAM1 controller, Advanced I/O Module (AIOM) Form Factor, PCIe Gen 4.0 (backward compatible to PCI-E 3.0), Quad Port SFP28 connectors, Support for 25GbE and 10GbE Speed - RoHS Compliant
Advanced I/O Module (AIOM) Form Factor
Intel Columbiaville E810-CAM1 25GbE controller
Support for 25GbE and 10GbE Speed
Quad Port SFP28 connectors
PCIe Gen 4.0 x16 (backward compatible to PCI-E 3.0)
Low Latency RDMA over Converged Ethernet (iWARP and RoCE v2)
Intel® Ethernet Adaptive Virtual Function (Intel® Ethernet AVF)
Intel® Ethernet Flow Director – Application Device Queues (ADQ)
Dynamic Device Personalization (DDP)
Hardware Root of Trust with Firmware Recovery
VXLAN, NVGRE and Geneve
Asset Management Features with thermal sensor
Network Controller Sideband Interface (NC-SI) for Remote Management
Extra Specifications for Supermicro AOC-A25G-i4SM E810-CAM1 25GbE Network Adapter - Gen 4 PCIe x16 Quad-port SFP28 Connectors Advanced I/O Module (AIOM) OCP 3.0 Form Factor
| Add-on Card | ||
| Add-on Card | Supermicro® Advanced I/O Modules (AIOM) are the latest form factor designed to provide a wide range of networking options as well as other I/O technologies. The AOC-A25G-i4SM is one of the most feature rich and low power consumption 25GbE controllers in the market. Based on the Intel Columbiaville E810-CAM1 Ethernet controller with features such as VxLAN, NVGRE, RDMA, and others, it provides unparalleled density, performance, and functionality. The Supermicro® AOC-A25G-i4SM is the most versatile 25GbE controller in the market with the best total cost of ownership for 25GbE deployments in cloud, telco, and enterprise data centers. To order, contact your distributor. This product is only available through Supermicro. | |
| Downloads | ||
| User's Guide | [ https://www.supermicro.com/about/policies/disclaimer_manuals.cfm?url=/manuals/other/AOC-A25G-i4SM.pdf ] | |
| Datasheet | [ https://www.supermicro.com/manuals/other/datasheet-AOC-A25G-i4SM.pdf ] | |
| Driver | Choose the latest CDR-NIC folder, and then click on Intel folder for driver [ https://www.supermicro.com/wdl/Networking_Drivers/ ] | |
| Driver CD | Click on the latest CDR-NIC ISO file to download [ https://www.supermicro.com/wdl/Networking_Drivers/ ] | |
| Specifications | ||
| Converged Storage Network: | iSCSI | |
| SMB Direct | ||
| iSER | ||
| NVMe over RDMA (iWARP and RoCEv2) | ||
| Storage Performance Development Kit (SPDK) | ||
| NVMe over TCP | ||
| RDMA | iWARP | |
| RoCEv2 | ||
| Management and Control: | NC-SI over MCTP | |
| NC-SI over SMBus | ||
| MCTP over PCIe | ||
| BMC | ||
| PLDM and PLDM based firmware update | ||
| Remote Boot: | Signed UEFI option ROM compatible with HTTPS boot | |
| UEFI PXE Boot | ||
| Precision Clocks Synchronization IEEE 802.3ae 10 Gigabit Ethernet | IEEE 1588 (also known as the Precision Time Protocol (PTP)) | |
| Power Consumption: | ACPI Compliant power management | |
| Pass through Energy Efficient Ethernet (IEEE802.3az-2010) | ||
| Maximum: 14W | ||
| Operating Conditions: | Storage Temperature: -40 °C to 115 °C | |
| Physical Dimensions: | Advanced I/O Module (AIOM) Form Factor | |
| Card PCB dimensions: 76mm x 115mm (W x D) | ||
