| Main Specifications |
| Device Type | SuperChassis |
| Dimensions (WxDxH) | Height 3.5" (89 mm) x Width 17.2" (437 mm) x Depth 25.5" (647 mm) |
| Color | Black |
| Form Factor | Support up to 12"x13" MB with rear 2.5" HDD option installed |
| 2U chassis support for SMC Proprietary WIO motherboards, max. motherboard size - 12" x 13", 13" x 13.68" |
| Weight | 52 lbs (23.6kg) |
| Processor Support |
| Processor Support | Supports dual, single Intel / AMD processors |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | WIO Slots (4x Full-height, Full-length + 3x Low-profile) |
| Drive Bays |
| Hot-swap | 12x 3.5" Hot-swap SAS3/SATA Drive Bays and Optional 2x 2.5" Hot-swap SATA3 Drive Bays for OS mirroring - *SAS or enterprise SATA HDD only recommended |
| Front Panel |
| Buttons | Power On/Off button, System Reset button |
| System Cooling |
| Fans | FAN-0126L4 |
| 3x 80mm 7K RPM Chassis middle fan w/ housing |
| SAS / SATA Backplane |
| SAS / SATA Backplane | SAS3 Single Expander Backplane features: Up to 12Gbps support, In-band SES-2 Enclosure Management Support, SAS3/SATA3 support, 4x Mini-SAS HD connectors, Scalability through cascading |
| Operating Environment (System) |
| Operating Temperature Range | Non-Operating Humidity Range 5 - 95% non-condensing |
| Humidity Range 8 - 90% non-condensing |
| Operating Temperature Range 10 - 35C (50 - 95F) |
| Non-Operating Temperature Range -40 - 60C (-40 - 140F) |
| Power Supply |
| Certification | 80PLUS Platinum Certified |
| Power Supply | PWS-920P-SQ |
| 920W high-efficiency (94+%) power supply with PMBus |
| Regulatory Safety / EMC | USA - UL listed, Canada - CUL listed, Germany - TUV Certified, EN 60950/IEC 60950-Compliant, CB Report, CCC Certification |
| Parts List - (Items Included) |
| Air Shroud | MCP-310-29001-0N |
| Backplane | BPN-SAS3-826EL1 |
| Drive Trays | MCP-220-00075-0B, MCP-290-82607-0N |
| Mounting Rails | MCP-410-00007-0N, MCP-290-00053-0N |
| Parts List |
| Cables | CBL-0160L, CBL-0182L, CBL-0217L, CBL-0071L |
| Standard Parts List |

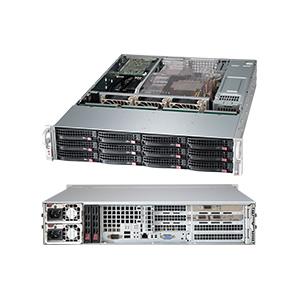

| Chassis | CSE-826BE1C-R920WB |
| Front Panel | FP826-D, TB826 |
| Power Distributor | PDB-PT826-S8824 |
| Rear Window | MCP-240-82609-0N |
