Main Specifications |
Device Type | SuperChassis |
Dimensions (WxDxH) | Height 3.5" (89 mm) x Width 17.2" (437 mm) x Depth 25.5" (647 mm) |
Color | Black |
Form Factor | 2U chassis support for max. motherboard size - 13.68" x 13" and E-ATX |
| Support up to E-ATX 12"x13" MB with rear 2.5" HDD option installed |
Weight | 52 lbs (23.6kg) |
Processor Support |
Processor Support | Supports dual, single Intel / AMD processors |
Expansion / Connectivity |
Expansion Slots Total (Free) | 7x low-profile full-length expansion slots |
Drive Bays |
Hot-swap | 12x 3.5" Hot-swap SAS3/SATA drive trays and Optional 2x 2.5" Hot-swap SATA3 Drive Bays for OS mirroring - *SAS or enterprise SATA HDD only recommended |
Front Panel |
Buttons | Power On/Off button, System Reset button |
System Cooling |
Fans | FAN-0126L4 |
| 3x 80mm 7K RPM Chassis middle fan w/ housing |
SAS / SATA Backplane |
SAS / SATA Backplane | SAS3 Dual Expander Backplane features: Up to 12Gbps support, In-band SES-2 Enclosure Management Support, SAS3/SATA3 support, 8x Mini-SAS HD connectors, Scalability through cascading, Redundancy support through SAS drive only |
Operating Environment (System) |
Operating Temperature Range | Non-Operating Humidity Range 5 - 95% non-condensing |
| Humidity Range 8 - 90% non-condensing |
| Operating Temperature Range 10 - 35C (50 - 95F) |
| Non-Operating Temperature Range -40 - 60C (-40 - 140F) |
Power Supply |
Certification | 80PLUS Platinum Certified |
Power Supply | PWS-920P-SQ |
| 920W high-efficiency (94+%) power supply with PMBus |
Regulatory Safety / EMC | USA - UL listed, Canada - CUL listed, Germany - TUV Certified, EN 60950/IEC 60950-Compliant, CB Report, CCC Certification |
Parts List - (Items Included) |
Air Shroud | MCP-310-29001-0N |
Backplane | BPN-SAS3-826EL2 |
Drive Trays | MCP-220-00075-0B, MCP-290-82607-0N |
Mounting Rails | MCP-290-00053-0N, MCP-410-00007-0N |
Parts List |
Cables | CBL-0182L, CBL-0217L, CBL-0071L, CBL-0160L |
Standard Parts List |

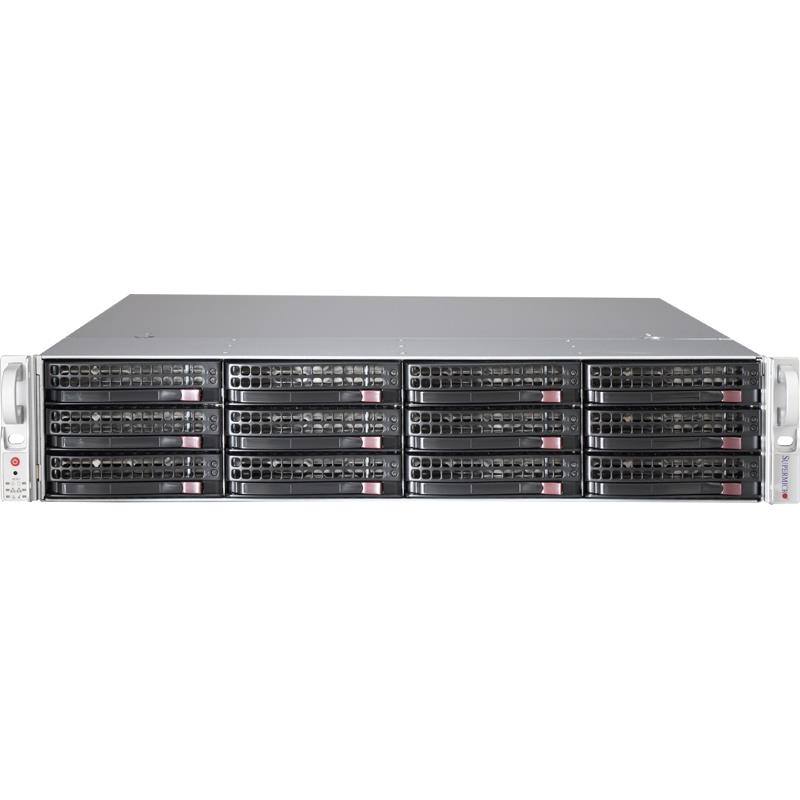

Chassis | CSE-826BE2C-R920LPB |
Front Panel | FP826-D, TB826 |
Power Distributor | PDB-PT826-8824 |
Rear Window | MCP-240-82608-0N |
