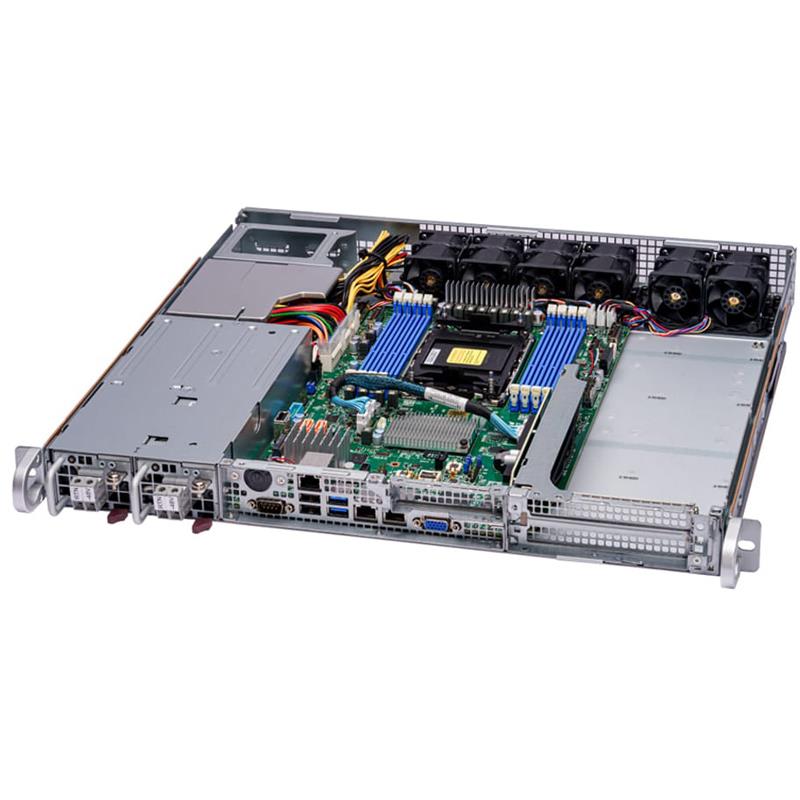

Supermicro SYS-111E-FDWTR IoT 1U Barebone Single Intel Xeon Scalable Processors 5th and 4th Generation
• Multi-Access Edge Computing
• Flex-RAN, Open-RAN vBBU
• Artificial Intelligence (AI) on Edge
• DU of 5G Application
• Satellite Communication
Barebone 1U Rackmount SuperServer, Supports Single Socket E (LGA-4677), Supporting Intel Xeon Scalable Processors 5th and 4th Generation, Intel C741 Chipset, Up to 2TB in 8 DIMM slots, RDIMM, On-Board: Controller SATA3 (6Gbps), 2x 2.5in SATA Drive Bays, 1x M-Key 22110/2280 (PCIe 3.0 x2 NVMe), Network Connectivity: 2x 10GbE ports, 1 RJ45 Dedicated IPMI LAN port, 600W Power Supply - (SYS-111E-FDWTR + X13SEW-TF)
1. Support 5th and 4th Gen Intel® Xeon® Scalable processors
2. 8 DIMMs; Up to 2TB 3DS ECC DDR5-5600 RDIMM
3. 2x 2.5" drive bays; 1 M.2 NVMe (PCIe 3.0 x2 from PCH)
4. 6 heavy duty fans with optimal fan speed control; 1 Air Shroud(s)
5. 600W DC Redundant Power Supplies Level
Extra Specifications for Supermicro SYS-111E-FDWTR IoT 1U Barebone Single Intel Xeon Scalable Processors 5th and 4th Generation
Product SKUs | ||
Product SKUs | SYS-111E-FDWTR | |
Motherboard | ||
Motherboard | Super X13SEW-TF | |
Processor | ||
CPU | 4th Gen Intel® Xeon® Scalable processors | |
Single Socket E (LGA-4677) | ||
Cores | Up to 32C/64T; Up to 60MB Cache | |
Note | Supports up to 205W TDP CPUs (Air Cooled) | |
System Memory | ||
Memory | Memory Capacity: 8 DIMM slots | |
Memory Type: 4800MHz ECC DDR5 RDIMM | ||
Up to 2TB: DDR5 ECC RDIMM | ||
Memory Voltage | 1.1 V | |
Error Detection | ECC | |
On-Board Devices | ||
SATA | SATA3 (6Gbps); RAID 0/1 support | |
Chipset | Intel® C741 | |
Network Connectivity | 2x 10GbE port(s) | |
IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
Input / Output | ||
LAN | 1 RJ45 Dedicated IPMI LAN port | |
2 RJ45 10GbE (Intel® X550-AT2) | ||
USB | 2 USB 3.0 port(s) (2 USB) | |
2 USB 2.0 port(s) (2 USB) | ||
Video | 1 VGA port(s) | |
Others | 1x COM Port COM port | |
Management | ||
Software | IPMI 2.0 | |
Power Configurations | Power-on mode for AC power recovery | |
ACPI Power Management | ||
PC Health Monitoring | ||
CPU | Monitors for CPU Cores, Chipset Voltages, Memory | |
FAN | Status monitor for speed control | |
Pulse Width Modulated (PWM) fan connectors | ||
Fans with tachometer monitoring | ||
Temperature | Monitoring for CPU and chassis environment | |
CPU thermal trip support, PEPI | ||
Chassis | ||
Form Factor | 1U | |
Model | CSE-515B-R601W | |
Dimensions and Weight | ||
Height | 1.7" (43mm) | |
Width | 17.2" (437mm) | |
Depth | 16.9" (429mm) | |
Package | 8" (H) x 27" (W) x 24" (D) | |
Weight | Gross Weight: 25.2 lbs (11.43 kg) | |
Available Color | No Paint | |
Front Panel | ||
Buttons | Power On/Off | |
LEDs | ||
Expansion Slots | ||
PCI-Express (PCIe) | 1 PCIe 5.0 x16 LP slot(s) | |
2 PCIe 5.0 x16 FHFL slot(s) | ||
Drive Bays / Storage | ||
Drive Bays | 2x 2.5" SATA drive bays | |
M.2 | 1x M-Key 22110/2280 (PCIe 3.0 x2 (NVMe)) | |
System Cooling | ||
Fans | 6 heavy duty fans with optimal fan speed control | |
Air Shroud | 1 Air Shroud(s) | |
Power Supply | ||
Total Output Power | 600W : (-44) - (-65) Vdc | |
Dimension (W x H x L) | 54.5 x 40 x 220 mm | |
+12V | Max: 50A | |
5V SB | Max: 3A / Min: 0A | |
Certification | ||
Operating Environment | ||
Environmental Spec. | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | |
Operating Relative Humidity: 8% to 90% (non-condensing) | ||
Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F) |
Name | Part Number | Qty. | Description | |
---|---|---|---|---|
Motherboard / Chassis | MBD-X13SEW-TF | 1 | Super X13SEW-TF Motherboard | |
Motherboard / Chassis | CSE-515B-R601W | 1 | 1U Chassis | |
Cable | CBL-0082L | 1 | Y SPLIT SATA POWER ADAPTER, PB FREE | |
Cable | CBL-0483L | 2 | 7pin SATA (STR to STR), 29cm, PBF | |
Cable | CBL-PWCD-0974 | 2 | 48VDC input power cable, 2M, 12AWG, 3 wires, RoHS/REACH,RoHS | |
Cable | CBL-MCIO-1218M5 OR | 1 | MCIO x8 (STR to STR),18CM,85OHM,RoHS | |
Cable | CBL-MCIO-1218M5-1 | 0 | MCIO x8 (STR to STR),18CM,85OHM,RoHS | |
Fan | FAN-0167L4 | 2 | 40x40x56 mm, 20.5K-17.6K RPM, Counter-rotating Fan for SC947 SBB and 1U Twin Pro Series Servers | |
Manual | MNL-2570-QRG | 1 | 111E-FWTR/FDWTR Quick Reference Guide | |
Riser Card | RSC-W-66G5 | 1 | 1U LHS WIO Riser card with two PCIe 5.0 X16 slots,HF,R | |
Riser Card | RSC-WR-6G5+ | 1 | 1U RHS WIO Riser card with one PCIe 5.0 X16 slot,HF,RoH | |
Software | SFT-OOB-LIC | 1 | License key for enabling OOB BIOS management | |
Heatsink / Retention | SNK-P0087P | 1 | 1U Passive CPU HS for X13 EGS and X14-SP BHS-SP Systems | |
*Power Supply | PWS-601S-1R | 2 | 1U 600W Redundant DC48V input w/PMBus power supply, W54.5xH4 | |
*Power Distributor | PDB-PT514-2824 | 1 | 1U redundant power distributor board for SC514, SC113 etc., (rename from PDB-PT514-1824),RoHS/REACH |
Note:
• Parts with * are inside the chassis
• Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
