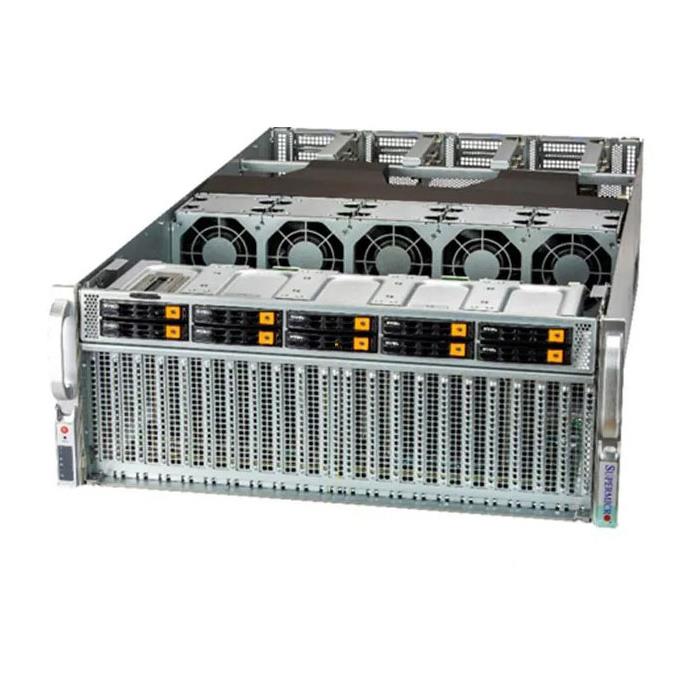

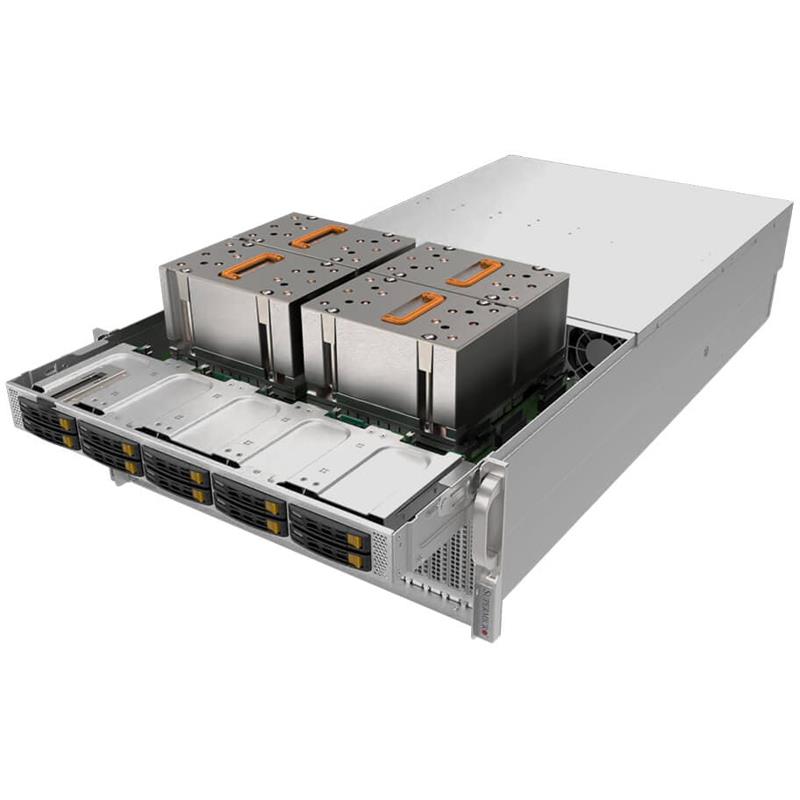

Supermicro AS-4124GQ-TNMI GPU 4U Barebone Dual AMD EPYC 7003 Series Processor
• High Performance Computing
• AI / Deep Learning
Barebone 4U Rackmount SuperServer, Supports Dual Socket SP3, Supporting AMD EPYC 7003 Series Processors, Up to 128 Cores (64 cores, 128 threads per CPU), Supports CPU TDP up to 280W - Supported GPUs: AMD Instinct MI250 OAM Accelerator, NVIDIA HGX A100 4-GPU SXM4 Multi-GPU Board, System on Chip, Supports Up to 8TB DDR4-3200MHz L/RDIMM in 32 DIMM slots, On-Board : SATA3 6Gbps, 10x hot-swap 2.5in U.2 NVMe/SATA/SAS hybrid drive bays, Network Controller: Provided via IO Board, 1x Dedicated IPMI LAN Port, 3000W Power Supply - (CSE-458GTS-R3K06P + H12DGQ-NT6) - AS -4124GQ-TNMI
To maintain quality and integrity, this product is sold only as a completely-assembled system (with fully-populated universal baseboard GPUs, minimum 2 CPUs, Min of 512GB Memory, 1 Storage device, and 1 NIC included in IO board). OSNBD3 is highly recommended.
1. Supports AMD Instinct™ MI200 Series Accelerators with AMD Infinity™ Fabric™ GPU-GPU Interconnect, 1:1 GPU-to-NIC ratio
2. Supports MI250 OAM Accelerator with 128GB (HBM2e) and Infinity Interconnect
3. Dual AMD EPYC™ 7003 Series Processors
4. 8TB Registered ECC DDR4 3200MHz SDRAM in 32 DIMMs
5. 8 PCI-E 4.0 x16 via PLX 2 PCI-E 4.0 x16 LP via CPUs (for 5U SKU)

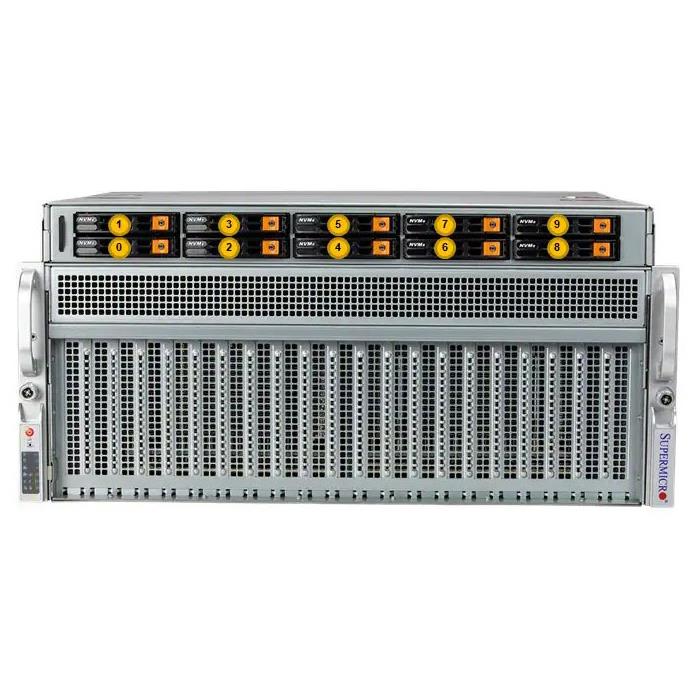

6. 10 hot-swap 2.5" U.2 NVMe/SATA/SAS hybrid drive bays
7. 1 dedicated IPMI LAN Port
8. 5 hot-swap heavy-duty cooling fans
Extra Specifications for Supermicro AS-4124GQ-TNMI GPU 4U Barebone Dual AMD EPYC 7003 Series Processor
| Motherboard | ||

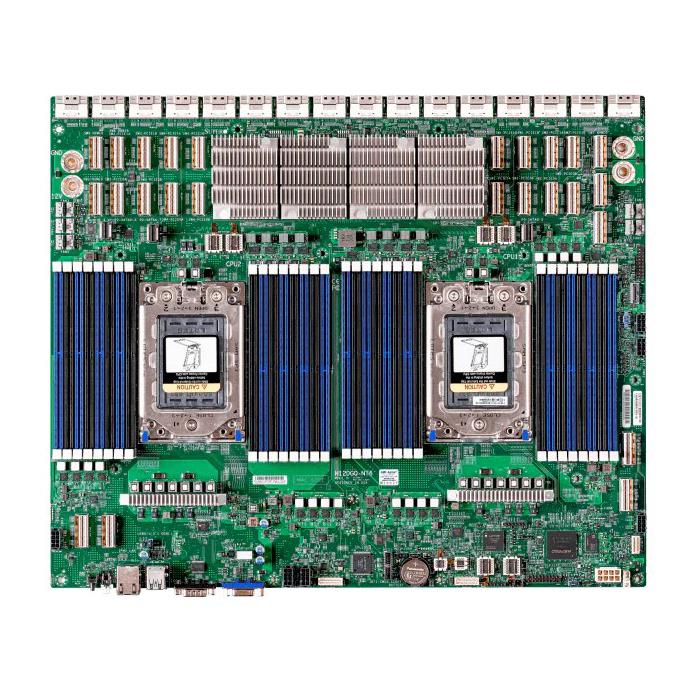

| Motherboard | Super H12DGQ-NT6 | |
| Processor | ||
| CPU | Dual AMD EPYC™ 7003 Series Processors | |
| Socket SP3 | ||
| Supports CPU TDP up to 280W * | ||
| Cores | Up to 128 Cores (64 cores, 128 threads per CPU) | |
| Note | * Certain CPUs with high TDP may be supported only under specific conditions. Please contact Supermicro Technical Support for additional information about specialized system optimization | |
| GPU | ||
| Supported GPUs | AMD Instinct™ MI250 OAM Accelerator | |
| CPU-GPU Interconnect | PCI-E 4.0 x16 CPU-to-GPU Interconnect | |
| GPU-GPU Interconnect | AMD Infinity Fabric™ | |
| System Memory | ||
| Memory Capacity | 32 DIMM slots | |
| Up to 8TB 3DS ECC DDR4-3200MH RDIMM/LRDIMM | ||
| Memory Type | 3200MHz ECC DDR4 RDIMM/LRDIMM | |
| On-Board Devices | ||
| Chipset | System on Chip (SoC) | |
| SATA | SATA3 (6Gbps) | |
| Network Controllers | Provided via IO Board | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Graphics | ASPEED AST2600 BMC | |
| Input / Output | ||
| SATA | 12 SATA3 (6Gbps) ports | |
| NVMe | 10 NVMe | |
| LAN | 1 RJ45 Dedicated IPMI LAN port | |
| Via IO Board | ||
| USB | 2 USB 3.1 Gen1 ports (front) | |
| Video | 1 VGA Connector (front) | |
| COM Port | 1 COM port (header) | |
| System BIOS | ||
| BIOS Type | AMI 256Mb SPI Flash ROM | |
| Management | ||
| Software | Watchdog | |
| KVM with dedicated LAN | ||
| SuperDoctor® 5 | ||
| IPMI 2.0 | ||
| SSM , SPM , SUM | ||
| PC Health Monitoring | ||
| CPU | 4+1 Phase-switching voltage regulator | |
| Monitors for CPU Cores, Chipset Voltages, Memory. | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for fan connectors | ||
| Chassis | ||
| Form Factor | 4U Rackmount | |
| Model | CSE-458GTS-R3K06P | |
| Note | *5U with 1U height module kit. | |
| Dimensions | ||
| Height | 6.91" (175.6mm) | |
| Width | 17.67" (449mm) | |
| Depth | 32.79" (833mm) | |
| Package | 14.57" (370mm) H x 27.55" (700mm) W x 49.60" (1260mm) D | |
| Weight | Net Weight: 166.0 lbs (75.3 kg) | |
| Gross Weight: 225.0 lbs (102.1 kg) | ||
| Drive Bays / Storage | ||
| Hot-swap | 10 hot-swap 2.5" U.2 NVMe/SATA/SAS hybrid drive bays | |
| Expansion Slots | ||
| PCI-Express | 8 PCI-E 4.0 x16 via PLX | |
| 2 PCI-E 4.0 x16 LP via CPUs (for 5U SKU) | ||
| Note | *8 PCI-E 4.0 slots in 4U. 2 additional PCI-E 4.0 slots in 5U with 1U height module kit supporting 2 AIOM cards or 2 PCI-E cards. | |
| System Cooling | ||
| Fans | 5 x hot-swap 11.5K RPM heavy duty fans | |
| Power Supply | ||
| Power Supply | 4x 3000W Redundant Titanium Level Power Supplies | |
| Dimension (W x H x L) | 106.5 x 82.4 x 203.5 mm | |
| Certification | Titanium Level | |
| Operating Environment | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
| Product SKUs | ||
| Product SKUs | A+ Server 4124GQ-TNMI | |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| Required Kit for 4U | MCP-310-45801-0B | 1 | 4U Plastic Air Shroud | |||
| Required Kit for 4U | SNK-P1043V | $ 59.00 | 2 | 1U Passive CPU Heat Sink | ||
| Required Kit for Extra 1U (for 5U w/AIOM or 5U PCI-E) | MCP-460-45801-0N | 1 | 1U height module kit for CSE-458G | |||
| Required Kit for Extra 1U (for 5U w/AIOM or 5U PCI-E) | MCP-310-45804-0B | 1 | Air shroud for 5U-height design | |||
| Required Kit for Extra 1U (for 5U w/AIOM or 5U PCI-E) | SNK-P0063P | $ 44.50 | 2 | 2U Passive CPU Heat Sink | ||
| Required Kit for 5U w/AIOM | AOM-AIOM-2X8-P | $ 9.00 | 2 | AIOM Board (cable solution) | ||
| Required Kit for 5U w/AIOM | CBL-PWEX-1099-34 | 1 | FLAT,IDC 2X11F/P1.27 TO IDC 2X11F/P1.27,NCSI,0.5A,35CM | |||
| Required Kit for 5U w/AIOM | CBL-CDAT-1060-30 | $ 27.50 | 2 | 2x15,PH1.0 to 2x15,PH1.0,28AWG,30CM,1A/pin | ||
| Required Kit for 5U w/AIOM | CBL-SAST-1245LP-85 | $ 39.50 | 2 | SlimSASLP (x8 STR to x8 STR),43CM,85 OHM | ||
| Required Kit for 5U w/AIOM | CBL-SAST-1242LP-85 | $ 38.00 | 2 | SlimSASLP (x8 RA to x8 STR),41CM,85 OHM | ||
| Required Kit for 5U PCI-E | RSC-G-6G5 | 2 | 1U LHS GPU Riser card with one PCI-E 5.0 X16 slot | |||
| Required Kit for 5U PCI-E | CBL-MCIO-1208L5-J | $ 9.00 | 2 | MCIO to SlimSASLP) x8,STR,8CM,G5,32AWG,85Ohm | ||
| Required Kit for 5U PCI-E | CBL-MCIO-1208L5-X | $ 9.00 | 2 | (MCIO to SlimSASLP) x8,STR,8CM,G5,32AWG,85Ohm | ||
| Required Kit for 5U PCI-E | CBL-PWEX-0973-30 | 2 | (MicroFit 2x4 to MicroHi 2x2),PH3.0,30cm,9A/p,18AWG | |||
| MI250 GPU Kit | GPU-AMDMI250-OAM-0029H | 4 | AMD Instinct MI250 OAM 64GBx2 530W HBM2e PCIe Gen5 | |||
| MI250 GPU Kit | CBL-PWEX-1280 | $ 25.00 | 2 | Microfit,(2X5 to 2X5),PH3.0,53CM,54V,9A/pin,16AWG | ||
| MI250 GPU Kit | CBL-MCIO-1278S5FYB1 | $ 301.50 | 1 | 4 MCIO-124p to 2 SlimSAS X8 Cable KIT, A-D | ||
| MI250 GPU Kit | CBL-MCIO-1278S5FYB2 | $ 299.50 | 1 | 4 MCIO-124p to 2 SlimSAS X8 Cable KIT, E-H | ||
| MI250 GPU Kit | MCP-310-45802-0B | 1 | Black 4pcs mylar airshroud kit for MI200 installion in CSE-458G | |||
| MI250 GPU Kit | MCP-240-45801-0N | 1 | Metal stiffener bracket for MI200 UBB assembly | |||
| MI250 GPU Kit | AOM-MCM-Q-P | 1 | OAM Universal Baseboard for MI200 GPU system | |||
| MI250 GPU Kit | MCP-240-45809-0N | 1 | Sheet-metal tray for MI200/PVC UBB assembly in SC458G chassis | |||
| Required Cable for RAID Card* | CBL-SAST-1296F-100 | $ 42.50 | 1 | Slimline x8 (LE) to 2x Slimline x4 (STR),FFC,96/96CM | ||
| Global Services & Support | OS4HR3/2/1 | 0 | 3/2/1-year onsite 24x7x4 service | |||
| Global Services & Support | OSNBD3/2/1 | 0 | 3/2/1-year onsite NBD service | |||
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
