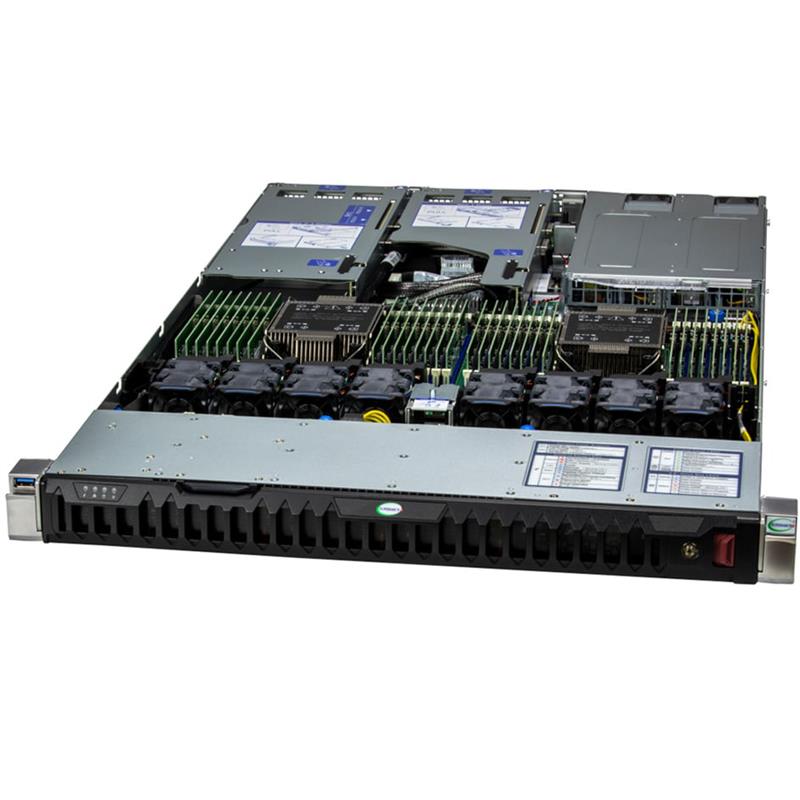

Supermicro SYS-121H-TNR Hyper 1U Barebone Dual Intel Xeon Scalable Processors 5th/4th Generation and Intel Xeon CPU Max Series
• Virtualization
• Software-defined Storage
• AI Inference and Machine Learning
• Cloud Computing
• Enterprise Server
Barebone 1U Rackmount SuperServer, Supports Dual Socket E (LGA-4677), Supporting Intel Xeon Scalable Processors 5th and 4th Generation and Supports Intel Xeon CPU Max Series With High Bandwidth memory (HBM), Up to 64C/128T, Up to 320MB Cache per CPU. Intel C741 Chipset, Up to 8TB in 32 DIMM slots, DIMM, On-Board: SATA3 (6Gbps) Controller RAID 0/1/5/10 support, 2 M.2 NVMe OR 2 M.2 SATA3, M-Key 2280/2210, Network Connectivity: Flexible networking Options with 1 AIOM Networking Slot (OCP NIC 3.0 compatible), 1 RJ45 Dedicated BMC LAN port, 800W/1200W Power Supply - (SYS-121H-TNR + X13DEM)
1. Dual Socket E (LGA-4677) 5th/4th Gen Intel® Xeon® Scalable processors
2. 32 DIMM slots supporting up to 8TB of memory; RDIMMs up to DDR5-5600
3. 3 PCIe 5.0 x16 slots with support for GPU/Accelerator cards
4. Flexible networking options with 1 AIOM networking slot (OCP NIC 3.0 compatible)
5. 8x 2.5" hot-swap NVMe/SATA/SAS drive bays; Optional 4x 2.5" hot-swap NVMe/SAS/SATA drive bays; 2x internal M.2 NVMe/SATA drive slots; Optional RAID support via storage add-on card
6. 8 heavy duty hot-swap fans with optimal fan speed control
Extra Specifications for Supermicro SYS-121H-TNR Hyper 1U Barebone Dual Intel Xeon Scalable Processors 5th/4th Generation and Intel Xeon CPU Max Series
Product SKUs | ||
Product SKUs | SYS-121H-TNR | |
Motherboard | ||
Motherboard | Super X13DEM | |
Processor | ||
CPU | Dual Socket E (LGA-4677) | |
4th Gen Intel® Xeon® Scalable processors | ||
Intel Xeon CPU Max Series with high bandwidth memory (HBM) | ||
Note | CPUs (air-cooled) with TDP over 250W are only supported under specific conditions. Contact customer support for details. | |
Supports up to 350W TDP CPUs (Air-Cooled) | ||
Supports up to 350W TDP CPUs (Liquid-Cooled) | ||
System Memory | ||
Memory | Memory Capacity: 32 DIMM slots | |
Up to 8TB: 32x 256 GB DRAM | ||
Memory Type: 4800MHz ECC DDR5 | ||
Memory Voltage | 1.1 V | |
Error Detection | ECC | |
On-Board Devices | ||
SATA | SATA3 (6Gbps); RAID 0/1/5/10 support | |
NVMe | NVMe; RAID 0/1/5/10 support (Intel® VROC RAID key required) | |
Chipset | Intel® C741 | |
Network Connectivity | 2x 1GbE BaseT with Intel® i350-AM2 (optional) | |
2x 10GbE SFP+ with Intel® X710-BM2 (optional) | ||
4x 10GbE SFP+ with Intel® XL710-BM1 (optional) | ||
4x 10GbE RJ45/SFP+ with Intel® X710-TM4 (optional) | ||
2x 25GbE SFP28 with Broadcom® BCM57414 (optional) | ||
4x 25GbE RJ45/SFP28 with Mellanox® CX-4 Lx EN Intel® X550-AT2 (optional) | ||
2x 100GbE QSFP28 with Broadcom® BCM57508 (optional) | ||
2x 10GbE BaseT with Intel® X550-AT2 (optional) | ||
4x 1GbE BaseT or 4x 1GbE SFP with Intel® i350-AM4 (optional) | ||
IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
Input / Output | ||
LAN | 1 RJ45 Dedicated BMC LAN port | |
USB | 2 USB 2.0 port(s) (2 rear) | |
1 USB 3.0 port(s) (1 front) | ||
Video | 1 VGA port(s) | |
System BIOS | ||
BIOS Type | AMI 256MB SPI Flash | |
Management | ||
Software | Watch Dog | |
NMI | ||
KVM with dedicated LAN | ||
Redfish API | ||
SuperDoctor® 5 | ||
Intel® Node Manager | ||
IPMI 2.0 | ||
SUM | ||
SSM | ||
SPM | ||
Power Configurations | Power-on mode for AC power recovery | |
ACPI Power Management | ||
PC Health Monitoring | ||
CPU | Monitors for CPU Cores, Chipset Voltages, Memory | |
FAN | Status monitor for speed control | |
Pulse Width Modulated (PWM) fan connectors | ||
Fans with tachometer monitoring | ||
Temperature | Monitoring for CPU and chassis environment | |
Thermal Control for fan connectors | ||
Chassis | ||
Form Factor | 1U Rackmount | |
Model | CSE-HS119-R1K24P2 | |
Dimensions and Weight | ||
Height | 1.7" (43mm) | |
Width | 17.2" (437mm) | |
Depth | 29.4" (747mm) | |
Package | 8.1" (H) x 23.8" (W) x 40.6" (D) | |
Weight | Net Weight: 34 lbs (15.4 kg) | |
Gross Weight: 49 lbs (22.2 kg) | ||
Available Color | N/A | |
Front Panel | ||
Buttons | UID button | |
Power On/Off | ||
LEDs | HDD activity | |
LAN1 activity | ||
System information | ||
Power | ||
Expansion Slots | ||
PCI-Express (PCIe) | 1 PCIe 5.0 x16 FH, 6.6"L slot(s) | |
2 PCIe 5.0 x16 FH, 10.5"L slot(s) | ||
Drive Bays / Storage | ||
Hot-swap | 8x 2.5" hot-swap NVMe/SATA/SAS drive bays (Configurable option for 12x 2.5" hot-swap NVMe/SAS/SATA drive bays. NVMe, SATA, or SAS support requires additional parts. Please see the Optional Parts list.) | |
M.2 | 2 M.2 NVMe OR 2 M.2 SATA3 | |
M-Key, 2280/2210 | ||
System Cooling | ||
Fans | 8x 4cm heavy duty fans with optimal fan speed control | |
Air Shroud | 2 Air Shroud(s) | |
Liquid Cooling | Direct to Chip (D2C) Cold Plate (optional) | |
Power Supply | ||
Dimension (W x H x L) | 73.5 x 40 x 265 mm | |
AC Input | 800W: 100-127Vac / 9.8A-7A / 50-60Hz | |
1200W: 200-240Vac / 7.5A-6A / 50-60Hz | ||
+12V | Max: 83A / Min: 0A (100Vac-127Vac) | |
Max: 100A / Min: 0A (200Vac-240Vac) | ||
12V SB | Max: 2.1A / Min: 0A | |
Output Type | 25 Pairs Gold Finger Connector | |
Certification | Titanium Level | |
Operating Environment | ||
Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | ||
Operating Relative Humidity: 8% to 90% (non-condensing) | ||
Non-operating Relative Humidity: 5% to 95% (non-condensing) |
