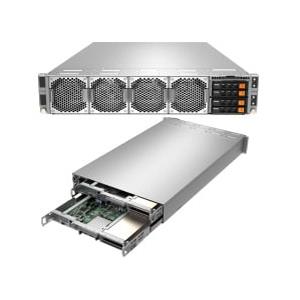

  3. Supermicro AS-2114GT-DPNR GPU 2U Barebone Single AMD Ryzen Threadripper PRO 5000WX/3000WX Series Processor
Supermicro AS-2114GT-DPNR GPU 2U Barebone Single AMD Ryzen Threadripper PRO 5000WX/3000WX Series Processor

Supermicro AS-2114GT-DPNR GPU 2U Barebone Single AMD Ryzen Threadripper PRO 5000WX/3000WX Series Processor

• Media/Video Streaming
• AI Inference and Machine Learning
• GPU Virtualization (VDI)
• Industrial Automation, Retail,
• Smart Medical Expert Systems

Barebone 2U Rackmount SuperServer Two Nodes, Each Node Supports: Single Socket SP3, Supporting AMD Ryzen Threadripper PRO 5000WX/3000WX Series Processor (Up to 64 Core), System on Chip, Supports Up to 2TB DDR4-3200MHz SDRAM in 8 DIMM slots, 2x front Hot-swap 2.5in U.2 NVMe Gen4 drive bays, Flexible networking provided by AIOM, 1GbE Dedicated IPMI management port, 2600W Power Supply - (CSE-227GTS-R2K63P + H12SSG-ANP6) - AS -2114GT-DPNR

$ 4,440.00$ 4,440.004440.0USD

$ 4,440.00

Option not available

    This combination does not exist.

    Add to Cart

    Two hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
    1. AMD Ryzen™ Threadripper™ PRO 5000WX/3000WX Series Processor, up to 64 Cores
    2. 2TB Registered ECC DDR4 3200MHz SDRAM in 8 DIMMs
    3. 2 PCI-E Gen 4 x16 external slots, 1 PCI-E 4.0 x8 AIOM slot (or optional x16 AIOM w/ additional parts) M.2 Interface : 2 PCI-E 4.0 x4 M.2 Form Factor : 2280, 22110 M.2 Key : M-key
    4. Integrated IPMI 2.0 + KVM with dedicated LAN • Software Out of Band License key ( SFT-OOB-LIC ) included for OOB BIOS management
    5. 2 front Hot-swap 2.5" U.2 NVMe Gen4 drive bays
    7. 2600W Redundant (1+1) Power Supplies Titanium Level (96%) (Full redundancy based on configuration and application load)

    Extra Specifications for Supermicro AS-2114GT-DPNR GPU 2U Barebone Single AMD Ryzen Threadripper PRO 5000WX/3000WX Series Processor

    Motherboard (per Node)
    Motherboard (per Node)Super H12SSG-ANP6
    Processor (per Node)
    CPUSocket SP3
    Supports CPU TDP up to 280W *
    AMD Ryzen™ Threadripper™ PRO 5000WX/3000WX Series Processor, up to 64 Cores
    CoresUp to 64 Cores
    ChipsetSystem on Chip (SoC)
    Note* Certain CPUs with high TDP may be supported only under specific conditions. Please contact Supermicro Technical Support for additional information about specialized system optimization
    System Memory (per Node)
    Memory Capacity8 DIMM slots
    Up to 2TB 3DS ECC DDR4-3200MH SDRAM
    Memory Type3200MHz ECC DDR4 SDRAM
    On-Board Devices (per Node)
    NetworkFlexible networking via AIOM
    IPMISupport for Intelligent Platform Management Interface v.2.0
    IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    Graphics & System ManagementASPEED AST2600 BMC
    Input / Output (per Node)
    SATAN/A
    LANFlexible networking provided by AIOM
    1 RJ45 1GbE Dedicated IPMI management port
    USB2 USB 3.0 ports (rear)
    Video1 VGA Connector (rear)
    Others1 COM port (header)
    1 TPM 2.0 (header)
    System BIOS (per Node)
    BIOS TypeAMI 256Mb SPI Flash ROM
    Management (per Node)
    SoftwareIPMI 2.0
    KVM with dedicated LAN
    SuperDoctor® 5
    SSM , SPM , SUM
    Watchdog
    PC Health Monitoring
    CPU4+1 Phase-switching voltage regulator
    Monitors for CPU Cores, Chipset Voltages, Memory.
    FANStatus monitor for speed control
    Pulse Width Modulated (PWM) fan connectors
    Fans with tachometer monitoring
    TemperatureMonitoring for CPU and chassis environment
    Thermal Control for fan connectors
    Chassis
    Form Factor2U Rackmountable
    ModelCSE-227GTS-R2K63P
    Dimensions
    Height3.47" (88mm)
    Width17.6" (447mm)
    Depth29.9" (760mm)
    Available ColorsBlack
    Drive Bays / Storage (per Node)
    Hot-swap2 front Hot-swap 2.5" U.2 NVMe Gen4 drive bays
    Expansion Slots (per Node)
    PCI-Express2 PCI-E Gen 4 x16 external slots
    1 PCI-E Gen 4 x8 AIOM networking slot (or optional x16 AIOM w/ additional parts)
    System Cooling
    Fans4 Hot-swap heavy duty 80mm PWM fans
    Power Supply
    Power Supply2600W Redundant Power Supplies with PM Bus
    Total Output Power and Input2600W with Input 200-240Vac
    2600W with Input 200-240Vdc (for CQC only)
    Dimension (W x H x L)40 x 73.5 x 265 mm
    +12VMax: 216A / Min: 0A (200-240 Vac)
    +12VsbMax: 4.5A / Min: 0A
    Output TypeGold Finger Connector
    Certification (Pending)Titanium Level
    Operating Environment
    RoHSRoHS Compliant
    Environmental Spec.Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
    Operating Relative Humidity: 8% to 90% (non-condensing)
    Non-operating Relative Humidity: 5% to 95% (non-condensing)
    Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
    Product SKUs
    Product SKUsA+ Server 2114GT-DPNR (Black)
    NamePart NumberPriceAdd to CartQty.Description
    Up to 5x NVIDIA A10 per nodeRSC-GFR-66G4$ 9.001 per node1U Front RHS GPU Riser card with two PCI-E4.0x16slots
    CBL-PWEX-1059$ 31.501 per nodeGPU,2x4F/RA/CPU to two (2x3F+2x1F)/PCIe,P4.2, 36CM,17/20AWG
    CBL-PWEX-1040$ 25.002 per nodePWYCB,GPU,2x4M/CPU to two (2x3F+2x1F)/PCIe,P4.2, 5CM,16/20AW
    CBL-SAST-1295LP-85$ 9.002 per nodeSlimlineLP x8 (RA) to SlimlineLP x8 (STR),12CM,85 OHM
    CBL-SAST-1202LPB-85$ 9.001 per node2x SlimSASLP x8 (STR) to 2x SlimSASLP x8 (STR),BNDL,FOL
    CBL-SAST-1228LP-85$ 9.003 per nodeSlimlineLP x8 (STR) to Slimline x8 (STR),28CM,85 OHM
    CBL-SAST-1224LP-85$ 37.001 per nodeSlimlineLP x8 (STR) to SlimlineLP x8 (RE),24CM,85 OHM
    MCP-120-22710-0N$ 71.002 per nodeNVIDIA GPU A10 PCIe internal bracket for SC227G
    MCP-310-22713-0B$ 17.501 per nodeSponge air block-B for SC227G
    3x NVIDIA A40 per nodeMCP-310-22713-0B$ 17.501 per nodeSponge air block-B for SC227G
    MCP-120-22709-0N$ 71.001 per nodeNVIDIA GPU universal internal bracket (w/ DW) for SC227G
    2x NVIDIA A100/A30 per nodeMCP-120-22709-0N$ 71.002 per nodeNVIDIA GPU universal internal bracket (w/ DW) for SC227G
    3x NVIDIA A100/A30 per nodeMCP-120-22709-0N$ 71.002 per nodeNVIDIA GPU universal internal bracket (w/ DW) for SC227G
    MCP-310-22713-0B$ 17.501 per nodeSponge air block-B for SC227G
    2x NVIDIA A16MCP-120-22709-0N$ 71.002 per nodeNVIDIA GPU universal internal bracket (w/ DW) for SC227G
    3x NVIDIA A16MCP-120-22709-0N$ 71.002 per nodeNVIDIA GPU universal internal bracket (w/ DW) for SC227G
    MCP-310-22713-0B$ 17.501 per nodeSponge air block-B for SC227G
    1x RTX 5000 ADA per nodeCBL-PWEX-0960-30 → in GPU slot21 per node12VHPWR 2x6+4S to 2 X4,ATX PH4.2,50cm,9.5A/p,16AWG,RoHS
    SNK-P0062V*1 per node1U Passive Proprietary Vapor Chamber
    MCP-310-22714-0B*1 per nodeMylar air shroud-C2 H12SSG-AN6 for SC227G
    CBL-SAST-1209F-85**2 per nodeSlimSAS (x8 STR to x8 STR),9CM,FFC,FOLD,85 OHM,RoHS
    CBL-SAST-1224LP-85**1 per nodeSlimlineLP x8 (STR) to SlimlineLP x8 (RE),24CM,85 OHM
    CBL-SAST-1201LL4FB-85**1 per node2x (SlimSAS LP,x8 to x8,STR),BNDL,FLD,FFC,85 OHM,RoHS
    2x RTX 5000 ADA per nodeCBL-PWEX-0960-50 → in GPU slot3 & slot52 per node12VHPWR 2x6+4S to 2 X4,ATX PH4.2,50cm,9.5A/p,16AWG,RoHS
    SNK-P0062V*1 per node1U Passive Proprietary Vapor Chamber
    MCP-310-22714-0B*1 per nodeMylar air shroud-C2 H12SSG-AN6 for SC227G
    CBL-SAST-1209F-85**2 per nodeSlimSAS (x8 STR to x8 STR),9CM,FFC,FOLD,85 OHM,RoHS
    CBL-SAST-1224LP-85**1 per nodeSlimlineLP x8 (STR) to SlimlineLP x8 (RE),24CM,85 OHM
    CBL-SAST-1201LL4FB-85**1 per node2x (SlimSAS LP,x8 to x8,STR),BNDL,FLD,FFC,85 OHM,RoHS
    3x RTX 5000 ADA per nodeCBL-PWEX-0960-50 → for GPU slot3 & slot52 per node12VHPWR 2x6+4S to 2 X4,ATX PH4.2,50cm,9.5A/p,16AWG,RoHS
    CBL-PWEX-0960-30 → for GPU slot21 per node12VHPWR 2x6+4S to 2X4F,ATX PH4.2,30cm,9.5A/p,16# RoHS
    SNK-P0062V*1 per node1U Passive Proprietary Vapor Chamber
    MCP-310-22714-0B*1 per nodeMylar air shroud-C2 H12SSG-AN6 for SC227G
    CBL-SAST-1209F-85**2 per nodeSlimSAS (x8 STR to x8 STR),9CM,FFC,FOLD,85 OHM,RoHS
    CBL-SAST-1224LP-85**1 per nodeSlimlineLP x8 (STR) to SlimlineLP x8 (RE),24CM,85 OHM
    CBL-SAST-1201LL4FB-85**1 per node2x (SlimSAS LP,x8 to x8,STR),BNDL,FLD,FFC,85 OHM,RoHS
    2x RTX A6000 per nodeMCP-120-22709-0N$ 71.002 per nodeNVIDIA GPU universal internal bracket (w/ DW) for SC227G
    2x RTX A5000 per node-CBL-PWEX-10591 per node
    CBL-PWEX-1040$ 25.001 per nodePWYCB,GPU,2x4M/CPU to two (2x3F+2x1F)/PCIe,P4.2, 5CM,16/20AW
    MCP-120-22709-0N$ 71.002 per nodeNVIDIA GPU universal internal bracket (w/ DW) for SC227G
    3x RTX A5000 per node-CBL-PWEX-10591 per node
    CBL-PWEX-1040$ 25.002 per nodePWYCB,GPU,2x4M/CPU to two (2x3F+2x1F)/PCIe,P4.2, 5CM,16/20AW
    MCP-310-22713-0B$ 17.501 per nodeSponge air block-B for SC227G
    MCP-120-22709-0N$ 71.002 per nodeNVIDIA GPU universal internal bracket (w/ DW) for SC227G
    1x RTX A4500 per node-CBL-PWEX-10401 per node
    MCP-120-22709-0N$ 71.001 per nodeNVIDIA GPU universal internal bracket (w/ DW) for SC227G
    CBL-SAST-1201LL4FB-85*1 per node2x (SlimSAS LP,x8 to x8,STR),BNDL,FLD,FFC,85 OHM,RoHS
    2x RTX A4500 per node-CBL-PWEX-10591 per node
    CBL-PWEX-1040$ 25.001 per nodePWYCB,GPU,2x4M/CPU to two (2x3F+2x1F)/PCIe,P4.2, 5CM,16/20AW
    MCP-120-22709-0N$ 71.002 per nodeNVIDIA GPU universal internal bracket (w/ DW) for SC227G
    CBL-SAST-1201LL4FB-85*1 per node2x (SlimSAS LP,x8 to x8,STR),BNDL,FLD,FFC,85 OHM,RoHS
    3x RTX A4500 per node-CBL-PWEX-10591 per node
    CBL-PWEX-1040$ 25.002 per nodePWYCB,GPU,2x4M/CPU to two (2x3F+2x1F)/PCIe,P4.2, 5CM,16/20AW
    MCP-120-22709-0N$ 71.002 per nodeNVIDIA GPU universal internal bracket (w/ DW) for SC227G
    MCP-310-22713-0B$ 17.501 per nodeSponge air block-B for 3rd DW GPU in SC227G
    CBL-SAST-1201LL4FB-85*1 per node2x (SlimSAS LP,x8 to x8,STR),BNDL,FLD,FFC,85 OHM,RoHS
    Up to 4x NVIDIA A4000 (GPU-NVQRTX-A4000)-RSC-GFR-66G41 per node
    CBL-PWEX-1059$ 31.501 per nodeGPU,2x4F/RA/CPU to two (2x3F+2x1F)/PCIe,P4.2, 36CM,17/20AWG
    CBL-PWEX-1040$ 25.002 per nodePWYCB,GPU,2x4M/CPU to two (2x3F+2x1F)/PCIe,P4.2, 5CM,16/20AW
    CBL-SAST-1295LP-85$ 9.002 per nodeSlimlineLP x8 (RA) to SlimlineLP x8 (STR),12CM,85 OHM
    CBL-SAST-1202LPB-85$ 9.001 per node2x SlimSASLP x8 (STR) to 2x SlimSASLP x8 (STR),BNDL,FOL
    CBL-SAST-1228LP-85$ 9.003 per nodeSlimlineLP x8 (STR) to Slimline x8 (STR),28CM,85 OHM
    CBL-SAST-1224LP-85$ 37.001 per nodeSlimlineLP x8 (STR) to SlimlineLP x8 (RE),24CM,85 OHM
    MCP-120-22708-0N2 per nodeNVIDIA GPU RTX-A4000 PCIe internal bracket for SC227G
    MCP-310-22713-0B*1 per nodeSponge air block-B for SC227G
    SNK-P0062V**1 per node1U Passive Proprietary Vapor Chamber CPU HS, AS-2114GT-DNR
    MCP-310-22714-0B**1 per nodeMylar air shroud-C2 H12SSG-AN6 for SC227G
    CBL-SAST-1201LL4FB-85***1 per node2x (SlimSAS LP,x8 to x8,STR),BNDL,FLD,FFC,85 OHM,RoHS
    Up to 6x T4-RSC-GFR-66G41 per node
    CBL-SAST-1295LP-85$ 9.002 per nodeSlimlineLP x8 (RA) to SlimlineLP x8 (STR),12CM,85 OHM
    CBL-SAST-1202LPB-85$ 9.001 per node2x SlimSASLP x8 (STR) to 2x SlimSASLP x8 (STR),BNDL,FOL
    CBL-SAST-1228LP-85$ 9.003 per nodeSlimlineLP x8 (STR) to Slimline x8 (STR),28CM,85 OHM
    CBL-SAST-1224LP-85$ 37.001 per nodeSlimlineLP x8 (STR) to SlimlineLP x8 (RE),24CM,85 OHM
    MCP-310-22713-0B$ 17.501 per nodeSponge air block-B for SC227G
    MCP-120-22705-0N$ 71.002 per nodeNVIDIA GPU T4 PCIe internal bracket for SC227G
    Up to 6x A2-RSC-GFR-66G41 per node
    CBL-SAST-1295LP-85$ 9.002 per nodeSlimlineLP x8 (RA) to SlimlineLP x8 (STR),12CM,85 OHM
    CBL-SAST-1202LPB-85$ 9.001 per node2x SlimSASLP x8 (STR) to 2x SlimSASLP x8 (STR),BNDL,FOL
    CBL-SAST-1228LP-85$ 9.003 per nodeSlimlineLP x8 (STR) to Slimline x8 (STR),28CM,85 OHM
    CBL-SAST-1224LP-85$ 37.001 per nodeSlimlineLP x8 (STR) to SlimlineLP x8 (RE),24CM,85 OHM
    MCP-310-22713-0B$ 17.501 per nodeSponge air block-B for SC227G
    MCP-120-22710-0N$ 71.002 per nodeNVIDIA GPU universal internal bracket(w/ SW) for SC227G
    2x MI100 per node-CBL-PWEX-10591 per node
    CBL-PWEX-1040$ 25.001 per nodePWYCB,GPU,2x4M/CPU to two (2x3F+2x1F)/PCIe,P4.2, 5CM,16/20AW
    MCP-120-22711-0N2 per nodeAMD GPU MI100 PCIe internal bracket for SC227G
    3x MI100 per node-CBL-PWEX-10591 per node
    CBL-PWEX-1040$ 25.002 per nodePWYCB,GPU,2x4M/CPU to two (2x3F+2x1F)/PCIe,P4.2, 5CM,16/20AW
    MCP-310-22713-0B$ 17.501 per nodeSponge air block-B for SC227G
    MCP-120-22711-0N2 per nodeAMD GPU MI100 PCIe internal bracket for SC227G
    2x MI210 per node-MCP-120-22711-0N2 per node
    3x MI210 per node-MCP-120-22711-0N2 per node
    MCP-310-22713-0B$ 17.501 per nodeSponge air block-B for SC227G
    TPM security module-AOM-TPM-9671V-
    AOM-TPM-9670V$ 56.500TPM 2.0 module (Vertical) with Infineon 9670
    Global Services & SupportOS4HR3/2/103/2/1-year onsite 24x7x4 service
    Global Services & SupportOSNBD3/2/103/2/1-year onsite NBD service

    Warranty:3 years labor, 1 year parts, 1 year advance replacement (doa)
    Coverage:Replacement or repair
    Average Service Time:1 year of overnight replacement
    E-mail:returnservices@wiredzone.com

    If you need Technical Support for this item please contact:

    Provider:Supermicro
    Type of Support:FULL
    Phone No.:408-503-8000
    URL:Click here for Manufacturer Website
