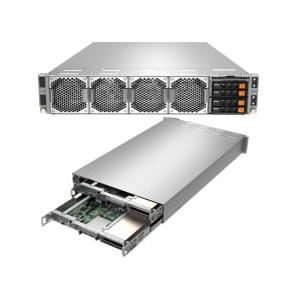

- Supermicro AS-2114GT-DPNR GPU 2U Barebone Single AMD Ryzen Threadripper PRO 5000WX/3000WX Series Processor
Supermicro AS-2114GT-DPNR GPU 2U Barebone Single AMD Ryzen Threadripper PRO 5000WX/3000WX Series Processor
• Media/Video Streaming
• AI Inference and Machine Learning
• GPU Virtualization (VDI)
• Industrial Automation, Retail,
• Smart Medical Expert Systems
Barebone 2U Rackmount SuperServer AMD Ryzen Threadripper PRO 5000WX/3000WX Series Processor, System on Chip, Supports Up to 2TB DDR4-3200MHz SDRAM in 8 DIMM slots, 2x front Hot-swap 2.5in U.2 NVMe Gen4 drive bays, Flexible networking provided by AIOM, 1GbE Dedicated IPMI management port, 2600W Power Supply - (CSE-227GTS-R2K63P + H12SSG-ANP6) - AS -2114GT-DPNR
To maintain quality and integrity, this product is sold only as a completely-assembled system (Per node, minimum 1 CPU, 2 DIMMs, 1 U.2 or M.2 NVMe, 1 AIOM, 1 GPU installed). Add on Cards (AOC) are recommended to be installed by Supermicro due to optimized density of the 2U form factor. OSNBD3 is highly recommended.
Two hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
1. AMD Ryzen™ Threadripper™ PRO 5000WX/3000WX Series Processor, up to 64 Cores
2. 2TB Registered ECC DDR4 3200MHz SDRAM in 8 DIMMs
3. 2 PCI-E Gen 4 x16 external slots, 1 PCI-E 4.0 x8 AIOM slot (or optional x16 AIOM w/ additional parts) M.2 Interface : 2 PCI-E 4.0 x4 M.2 Form Factor : 2280, 22110 M.2 Key : M-key
4. Integrated IPMI 2.0 + KVM with dedicated LAN • Software Out of Band License key ( SFT-OOB-LIC ) included for OOB BIOS management
5. 2 front Hot-swap 2.5" U.2 NVMe Gen4 drive bays
7. 2600W Redundant (1+1) Power Supplies Titanium Level (96%) (Full redundancy based on configuration and application load)
Extra Specifications for Supermicro AS-2114GT-DPNR GPU 2U Barebone Single AMD Ryzen Threadripper PRO 5000WX/3000WX Series Processor
| Motherboard (per Node) | ||
| Motherboard (per Node) | Super H12SSG-ANP6 | |
| Processor (per Node) | ||
| CPU | Socket SP3 | |
| Supports CPU TDP up to 280W * | ||
| AMD Ryzen™ Threadripper™ PRO 5000WX/3000WX Series Processor, up to 64 Cores | ||
| Cores | Up to 64 Cores | |
| Chipset | System on Chip (SoC) | |
| Note | * Certain CPUs with high TDP may be supported only under specific conditions. Please contact Supermicro Technical Support for additional information about specialized system optimization | |
| System Memory (per Node) | ||
| Memory Capacity | 8 DIMM slots | |
| Up to 2TB 3DS ECC DDR4-3200MH SDRAM | ||
| Memory Type | 3200MHz ECC DDR4 SDRAM | |
| On-Board Devices (per Node) | ||
| Network | Flexible networking via AIOM | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Graphics & System Management | ASPEED AST2600 BMC | |
| Input / Output (per Node) | ||
| SATA | N/A | |
| LAN | Flexible networking provided by AIOM | |
| 1 RJ45 1GbE Dedicated IPMI management port | ||
| USB | 2 USB 3.0 ports (rear) | |
| Video | 1 VGA Connector (rear) | |
| Others | 1 COM port (header) | |
| 1 TPM 2.0 (header) | ||
| System BIOS (per Node) | ||
| BIOS Type | AMI 256Mb SPI Flash ROM | |
| Management (per Node) | ||
| Software | IPMI 2.0 | |
| KVM with dedicated LAN | ||
| SuperDoctor® 5 | ||
| SSM , SPM , SUM | ||
| Watchdog | ||
| PC Health Monitoring | ||
| CPU | 4+1 Phase-switching voltage regulator | |
| Monitors for CPU Cores, Chipset Voltages, Memory. | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for fan connectors | ||
| Chassis | ||
| Form Factor | 2U Rackmountable | |
| Model | CSE-227GTS-R2K63P | |
| Dimensions | ||
| Height | 3.47" (88mm) | |
| Width | 17.6" (447mm) | |
| Depth | 29.9" (760mm) | |
| Available Colors | Black | |
| Drive Bays / Storage (per Node) | ||
| Hot-swap | 2 front Hot-swap 2.5" U.2 NVMe Gen4 drive bays | |
| Expansion Slots (per Node) | ||
| PCI-Express | 2 PCI-E Gen 4 x16 external slots | |
| 1 PCI-E Gen 4 x8 AIOM networking slot (or optional x16 AIOM w/ additional parts) | ||
| System Cooling | ||
| Fans | 4 Hot-swap heavy duty 80mm PWM fans | |
| Power Supply | ||
| Power Supply | 2600W Redundant Power Supplies with PM Bus | |
| Total Output Power and Input | 2600W with Input 200-240Vac | |
| 2600W with Input 200-240Vdc (for CQC only) | ||
| Dimension (W x H x L) | 40 x 73.5 x 265 mm | |
| +12V | Max: 216A / Min: 0A (200-240 Vac) | |
| +12Vsb | Max: 4.5A / Min: 0A | |
| Output Type | Gold Finger Connector | |
| Certification (Pending) | Titanium Level | |
| Operating Environment | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
| Product SKUs | ||
| Product SKUs | A+ Server 2114GT-DPNR (Black) | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-H12SSG-ANP6 | 2 | Super H12SSG-ANP6 Motherboard | |
| Motherboard / Chassis | CSE-227GTS-R2K63P | 1 | 2U chassis | |
| Cable 1 | CBL-CDAT-1056 | 1 | 2x5,PH2.54 to 2x5,PH2.54,7cm,28AWG,RoHS | |
| Cable 2 | CBL-PWCD-0376-IS | 2 | PWCD,US,IEC60320 C19 TO C20,940mm (3ft),14AWG,15A,250V,Black | |
| Cable 3 | CBL-PWEX-1026 | 2 | GPU,2x4F/RA/CPU to 2x4F/CPU,P4.2, 35CM, 17AWG, 8A/pin,RoHS | |
| Cable 4 | CBL-PWEX-1042 | 4 | GPU,2x4F/CPU to 2x4F/CPU,P4.2, 50CM,16AWG,10A/pin, -40~105C, | |
| Cable 5 | CBL-PWEX-1093-36 | 2 | MicroFit,2x2, P3.0,F to MicroFit,2x2,P3.0,F,36CM,10A/pin | |
| Cable 6 | CBL-PWEX-1257 | 1 | 2x4,PH3.0 to 2x4,PH3.0,7CM,4A,22AWG,RoHS | |
| Cable 7 | CBL-SAST-1201LPB-85 | 2 | 3x SlimlineLP x8 (STR) to 3x SlimlineLP x8 (STR),BNDL,F | |
| Cable 8 | CBL-SAST-1209F-85 | 2 | SlimSAS (x8 STR to x8 STR),9CM,FFC,FOLD,85 OHM,RoHS | |
| Cable 9 | CBL-SAST-1235-85 | 2 | Slimline x8 (STR) to Slimline x8 (STR),INT,35CM,85 OHM | |
| Cable 10 | CBL-SAST-1289LP-85 | 2 | SlimsasLP x8 (STR) to SlimsasLP x8 (STR),FOLD,85 OHM,Ro | |
| Cable 11 | CBL-SAST-1295LP-85 | 2 | SlimSASLP x8 (RA) to SlimSASLP x8 (STR),8CM,85 OHM,R | |
| Fan Holder | MCP-220-82620-0N | 2 | Dual 2.5 NVMe4 Drive Kit for 216B/826B/417B/846X/847B,RoHS | |
| Air Shroud | MCP-310-22702-0B | 2 | Mylar air shroud sets H12SSG-AN6 for SC227G(2x GPU) | |
| Riser Card | RSC-GB-66G4 | 2 | 1U Rear LHS GPU Riser card with twoPCI-E4.0x16slots,HF,R | |
| Riser Card | RSC-GF-66G4 | 2 | 1U Front LHS GPU Riser card with two PCI-E 4.0x16slotsHF | |
| Riser Card | RSC-GF-6G4 | 2 | 1U Front LHS GPU Riser card with onePCI-E4.0x16slot,HF,R | |
| Control Board | SCC-P2N2FG4-P1A-A | 1 | Gen4 2xNVMe power and fan control board A | |
| Control Board | SCC-P2N2FG4-P1A-B | 1 | Gen4 2xNVMe power and fan control board B | |
| Software | SFT-OOB-LIC | 2 | License key for enabling OOB BIOS management | |
| Heatsink / Retention | SNK-P0062P | 2 | 1U Passive CPU Heat Sink for AMD Socket SP3 Processors | |
| *Power Supply | PWS-2K63A-1R | 2 | 1U 2600Wredundant single outpupowersupply with wide range in | |
| *Cable 12 | CBL-PWEX-1251 | 2 | FAN,2x4 to 2x 1x4 and 1x4,5A/pin,42.5CM,22/24AWG | |
| *Cable 13 | CBL-PWEX-1252 | 2 | FAN,2x4 to 2x 1x4 and 1x4,5A/pin,58CM,22/24AWG | |
| *FAN 1 | FAN-0219L4 | 4 | 80x80x80 mm, 14.2K-15K RPM Counter-rotating, Hot-swappable F | |
| *Front Panel | FPB-FP827BR | 1 | 2U BigTwin front control board - right side | |
| *Rail Set | MCP-290-00144-0N | 1 | 2U fixed rail set, quick release, default for 2,3U 17.6"W | |
| *Front Panel | FPB-FP827BR | 1 | 2U BigTwin front control board - right side | |
| *Rail Set | MCP-290-00145-0N | 1 | Left fixed rail (quick) for 2U 17.6";W chassis | |
| *Rail Set | MCP-290-00146-0N | 1 | Right fixed rail (quick) for 2U 17.6";W chassis |
Note:
• Parts with * are inside the chassis
• Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| Up to 5x NVIDIA A10 per node | RSC-GFR-66G4 | 1 per node | 1U Front RHS GPU Riser card with two PCI-E4.0x16slots | |||
| CBL-PWEX-1059 | $ 27.00 | 1 per node | GPU,2x4F/RA/CPU to two (2x3F+2x1F)/PCIe,P4.2, 36CM,17/20AWG | |||
| CBL-PWEX-1040 | $ 20.50 | 2 per node | PWYCB,GPU,2x4M/CPU to two (2x3F+2x1F)/PCIe,P4.2, 5CM,16/20AW | |||
| CBL-SAST-1295LP-85 | 2 per node | SlimlineLP x8 (RA) to SlimlineLP x8 (STR),12CM,85 OHM | ||||
| CBL-SAST-1202LPB-85 | 1 per node | 2x SlimSASLP x8 (STR) to 2x SlimSASLP x8 (STR),BNDL,FOL | ||||
| CBL-SAST-1228LP-85 | 3 per node | SlimlineLP x8 (STR) to Slimline x8 (STR),28CM,85 OHM | ||||
| CBL-SAST-1224LP-85 | $ 32.50 | 1 per node | SlimlineLP x8 (STR) to SlimlineLP x8 (RE),24CM,85 OHM | |||
| MCP-120-22710-0N | $ 67.50 | 2 per node | Nvidia GPU A10 PCIe internal bracket for SC227G | |||
| MCP-310-22713-0B | $ 12.50 | 1 per node | Sponge air block-B for SC227G | |||
| 3x NVIDIA A40 per node | MCP-310-22713-0B | $ 12.50 | 1 per node | Sponge air block-B for SC227G | ||
| MCP-120-22709-0N | $ 67.50 | 1 per node | NVIDIA GPU universal internal bracket (w/ DW) for SC227G | |||
| 2x NVIDIA A100/A30 per node | MCP-120-22709-0N | $ 67.50 | 2 per node | NVIDIA GPU universal internal bracket (w/ DW) for SC227G | ||
| 3x NVIDIA A100/A30 per node | MCP-120-22709-0N | $ 67.50 | 2 per node | NVIDIA GPU universal internal bracket (w/ DW) for SC227G | ||
| MCP-310-22713-0B | $ 12.50 | 1 per node | Sponge air block-B for SC227G | |||
| 2x Nvidia A16 | MCP-120-22709-0N | $ 67.50 | 2 per node | NVIDIA GPU universal internal bracket (w/ DW) for SC227G | ||
| 3x Nvidia A16 | MCP-120-22709-0N | $ 67.50 | 2 per node | NVIDIA GPU universal internal bracket (w/ DW) for SC227G | ||
| MCP-310-22713-0B | $ 12.50 | 1 per node | Sponge air block-B for SC227G | |||
| 2x RTX A6000 per node | MCP-120-22709-0N | $ 67.50 | 2 per node | NVIDIA GPU universal internal bracket (w/ DW) for SC227G | ||
| 2x RTX A5000 per node | - | CBL-PWEX-1059 | 1 per node | |||
| CBL-PWEX-1040 | $ 20.50 | 1 per node | PWYCB,GPU,2x4M/CPU to two (2x3F+2x1F)/PCIe,P4.2, 5CM,16/20AW | |||
| MCP-120-22709-0N | $ 67.50 | 2 per node | NVIDIA GPU universal internal bracket (w/ DW) for SC227G | |||
| 3x RTX A5000 per node | - | CBL-PWEX-1059 | 1 per node | |||
| CBL-PWEX-1040 | $ 20.50 | 2 per node | PWYCB,GPU,2x4M/CPU to two (2x3F+2x1F)/PCIe,P4.2, 5CM,16/20AW | |||
| MCP-310-22713-0B | $ 12.50 | 1 per node | Sponge air block-B for SC227G | |||
| MCP-120-22709-0N | $ 67.50 | 2 per node | NVIDIA GPU universal internal bracket (w/ DW) for SC227G | |||
| 1x RTX A4500 per node | - | CBL-PWEX-1040 | 1 per node | |||
| MCP-120-22709-0N | $ 67.50 | 1 per node | NVIDIA GPU universal internal bracket (w/ DW) for SC227G | |||
| CBL-SAST-1201LL4FB-85* | 1 per node | 2x (SlimSAS LP,x8 to x8,STR),BNDL,FLD,FFC,85 OHM,RoHS | ||||
| 2x RTX A4500 per node | - | CBL-PWEX-1059 | 1 per node | |||
| CBL-PWEX-1040 | $ 20.50 | 1 per node | PWYCB,GPU,2x4M/CPU to two (2x3F+2x1F)/PCIe,P4.2, 5CM,16/20AW | |||
| MCP-120-22709-0N | $ 67.50 | 2 per node | NVIDIA GPU universal internal bracket (w/ DW) for SC227G | |||
| CBL-SAST-1201LL4FB-85* | 1 per node | 2x (SlimSAS LP,x8 to x8,STR),BNDL,FLD,FFC,85 OHM,RoHS | ||||
| 3x RTX A4500 per node | - | CBL-PWEX-1059 | 1 per node | |||
| CBL-PWEX-1040 | $ 20.50 | 2 per node | PWYCB,GPU,2x4M/CPU to two (2x3F+2x1F)/PCIe,P4.2, 5CM,16/20AW | |||
| MCP-120-22709-0N | $ 67.50 | 2 per node | NVIDIA GPU universal internal bracket (w/ DW) for SC227G | |||
| MCP-310-22713-0B | $ 12.50 | 1 per node | Sponge air block-B for 3rd DW GPU in SC227G | |||
| CBL-SAST-1201LL4FB-85* | 1 per node | 2x (SlimSAS LP,x8 to x8,STR),BNDL,FLD,FFC,85 OHM,RoHS | ||||
| Up to 4x Nvidia A4000 (GPU-NVQRTX-A4000) | - | RSC-GFR-66G4 | 1 per node | |||
| CBL-PWEX-1059 | $ 27.00 | 1 per node | GPU,2x4F/RA/CPU to two (2x3F+2x1F)/PCIe,P4.2, 36CM,17/20AWG | |||
| CBL-PWEX-1040 | $ 20.50 | 2 per node | PWYCB,GPU,2x4M/CPU to two (2x3F+2x1F)/PCIe,P4.2, 5CM,16/20AW | |||
| CBL-SAST-1295LP-85 | 2 per node | SlimlineLP x8 (RA) to SlimlineLP x8 (STR),12CM,85 OHM | ||||
| CBL-SAST-1202LPB-85 | 1 per node | 2x SlimSASLP x8 (STR) to 2x SlimSASLP x8 (STR),BNDL,FOL | ||||
| CBL-SAST-1228LP-85 | 3 per node | SlimlineLP x8 (STR) to Slimline x8 (STR),28CM,85 OHM | ||||
| CBL-SAST-1224LP-85 | $ 32.50 | 1 per node | SlimlineLP x8 (STR) to SlimlineLP x8 (RE),24CM,85 OHM | |||
| MCP-120-22708-0N | 2 per node | Nvidia GPU RTX-A4000 PCIe internal bracket for SC227G | ||||
| MCP-310-22713-0B* | 1 per node | Sponge air block-B for SC227G | ||||
| SNK-P0062V** | 1 per node | 1U Passive Proprietary Vapor Chamber CPU HS, AS-2114GT-DNR | ||||
| MCP-310-22714-0B** | 1 per node | Mylar air shroud-C2 H12SSG-AN6 for SC227G | ||||
| CBL-SAST-1201LL4FB-85*** | 1 per node | 2x (SlimSAS LP,x8 to x8,STR),BNDL,FLD,FFC,85 OHM,RoHS | ||||
| Up to 6x T4 | - | RSC-GFR-66G4 | 1 per node | |||
| CBL-SAST-1295LP-85 | 2 per node | SlimlineLP x8 (RA) to SlimlineLP x8 (STR),12CM,85 OHM | ||||
| CBL-SAST-1202LPB-85 | 1 per node | 2x SlimSASLP x8 (STR) to 2x SlimSASLP x8 (STR),BNDL,FOL | ||||
| CBL-SAST-1228LP-85 | 3 per node | SlimlineLP x8 (STR) to Slimline x8 (STR),28CM,85 OHM | ||||
| CBL-SAST-1224LP-85 | $ 32.50 | 1 per node | SlimlineLP x8 (STR) to SlimlineLP x8 (RE),24CM,85 OHM | |||
| MCP-310-22713-0B | $ 12.50 | 1 per node | Sponge air block-B for SC227G | |||
| MCP-120-22705-0N | $ 67.50 | 2 per node | Nvidia GPU T4 PCIe internal bracket for SC227G | |||
| Up to 6x A2 | - | RSC-GFR-66G4 | 1 per node | |||
| CBL-SAST-1295LP-85 | 2 per node | SlimlineLP x8 (RA) to SlimlineLP x8 (STR),12CM,85 OHM | ||||
| CBL-SAST-1202LPB-85 | 1 per node | 2x SlimSASLP x8 (STR) to 2x SlimSASLP x8 (STR),BNDL,FOL | ||||
| CBL-SAST-1228LP-85 | 3 per node | SlimlineLP x8 (STR) to Slimline x8 (STR),28CM,85 OHM | ||||
| CBL-SAST-1224LP-85 | $ 32.50 | 1 per node | SlimlineLP x8 (STR) to SlimlineLP x8 (RE),24CM,85 OHM | |||
| MCP-310-22713-0B | $ 12.50 | 1 per node | Sponge air block-B for SC227G | |||
| MCP-120-22710-0N | $ 67.50 | 2 per node | Nvidia GPU universal internal bracket(w/ SW) for SC227G | |||
| 2x MI100 per node | - | CBL-PWEX-1059 | 1 per node | |||
| CBL-PWEX-1040 | $ 20.50 | 1 per node | PWYCB,GPU,2x4M/CPU to two (2x3F+2x1F)/PCIe,P4.2, 5CM,16/20AW | |||
| MCP-120-22711-0N | 2 per node | AMD GPU MI100 PCIe internal bracket for SC227G | ||||
| 3x MI100 per node | - | CBL-PWEX-1059 | 1 per node | |||
| CBL-PWEX-1040 | $ 20.50 | 2 per node | PWYCB,GPU,2x4M/CPU to two (2x3F+2x1F)/PCIe,P4.2, 5CM,16/20AW | |||
| MCP-310-22713-0B | $ 12.50 | 1 per node | Sponge air block-B for SC227G | |||
| MCP-120-22711-0N | 2 per node | AMD GPU MI100 PCIe internal bracket for SC227G | ||||
| 2x MI210 per node | - | MCP-120-22711-0N | 2 per node | |||
| 3x MI210 per node | - | MCP-120-22711-0N | 2 per node | |||
| MCP-310-22713-0B | $ 12.50 | 1 per node | Sponge air block-B for SC227G | |||
| TPM security module | - | AOM-TPM-9671V | - | |||
| AOM-TPM-9670V | $ 52.00 | 0 | TPM 2.0 module (Vertical) with Infineon 9670 | |||
| Global Services & Support | OS4HR3/2/1 | 0 | 3/2/1-year onsite 24x7x4 service | |||
| Global Services & Support | OSNBD3/2/1 | 0 | 3/2/1-year onsite NBD service |
| Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | 1 year of overnight replacement |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | Supermicro |
| Type of Support: | FULL |
| Phone No.: | 408-503-8000 |
| URL: | Click here for Manufacturer Website |
