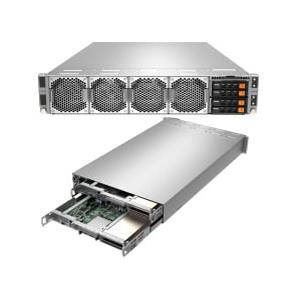

- Supermicro AS-2114GT-DPNR GPU 2U Barebone Single AMD Ryzen Threadripper PRO 5000WX/3000WX Series Processor
Supermicro AS-2114GT-DPNR GPU 2U Barebone Single AMD Ryzen Threadripper PRO 5000WX/3000WX Series Processor
• Media/Video Streaming
• AI Inference and Machine Learning
• GPU Virtualization (VDI)
• Industrial Automation, Retail,
• Smart Medical Expert Systems
Barebone 2U Rackmount SuperServer Two Nodes, Each Node Supports: Single Socket SP3, Supporting AMD Ryzen Threadripper PRO 5000WX/3000WX Series Processor (Up to 64 Core), System on Chip, Supports Up to 2TB DDR4-3200MHz SDRAM in 8 DIMM slots, 2x front Hot-swap 2.5in U.2 NVMe Gen4 drive bays, Flexible networking provided by AIOM, 1GbE Dedicated IPMI management port, 2600W Power Supply - (CSE-227GTS-R2K63P + H12SSG-ANP6) - AS -2114GT-DPNR
To maintain quality and integrity, this product is sold only as a completely-assembled system (Per node, minimum 1 CPU, 2 DIMMs, 1 U.2 or M.2 NVMe, 1 AIOM, 1 GPU installed). Add on Cards (AOC) are recommended to be installed by Supermicro due to optimized density of the 2U form factor. OSNBD3 is highly recommended.
Two hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
1. AMD Ryzen Threadripper PRO 5000WX/3000WX, up to 64 cores
2. Up to 2TB DDR4-3200 ECC RDIMM in 8 DIMMs
3. 2 PCIe 4.0 x16 (external), 1 PCIe 4.0 x8 AIOM (optional x16); 2× M.2 PCIe 4.0 x4 (2280/22110)
4. IPMI 2.0 + KVM with dedicated LAN; OOB BIOS management license included
5. 2 front hot-swap 2.5" U.2 NVMe Gen4 bays
6. 2600W (1+1) redundant Titanium-level PSUs (96%)
Extra Specifications for Supermicro AS-2114GT-DPNR GPU 2U Barebone Single AMD Ryzen Threadripper PRO 5000WX/3000WX Series Processor
| Motherboard (per Node) | ||
| Motherboard (per Node) | Super H12SSG-ANP6 | |
| Processor (per Node) | ||
| CPU | Socket SP3 | |
| Supports CPU TDP up to 280W * | ||
| AMD Ryzen™ Threadripper™ PRO 5000WX/3000WX Series Processor, up to 64 Cores | ||
| Cores | Up to 64 Cores | |
| Chipset | System on Chip (SoC) | |
| Note | * Certain CPUs with high TDP may be supported only under specific conditions. Please contact Supermicro Technical Support for additional information about specialized system optimization | |
| System Memory (per Node) | ||
| Memory Capacity | 8 DIMM slots | |
| Up to 2TB 3DS ECC DDR4-3200MH SDRAM | ||
| Memory Type | 3200MHz ECC DDR4 SDRAM | |
| On-Board Devices (per Node) | ||
| Network | Flexible networking via AIOM | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Graphics & System Management | ASPEED AST2600 BMC | |
| Input / Output (per Node) | ||
| SATA | N/A | |
| LAN | Flexible networking provided by AIOM | |
| 1 RJ45 1GbE Dedicated IPMI management port | ||
| USB | 2 USB 3.0 ports (rear) | |
| Video | 1 VGA Connector (rear) | |
| Others | 1 COM port (header) | |
| 1 TPM 2.0 (header) | ||
| System BIOS (per Node) | ||
| BIOS Type | AMI 256Mb SPI Flash ROM | |
| Management (per Node) | ||
| Software | IPMI 2.0 | |
| KVM with dedicated LAN | ||
| SuperDoctor® 5 | ||
| SSM , SPM , SUM | ||
| Watchdog | ||
| PC Health Monitoring | ||
| CPU | 4+1 Phase-switching voltage regulator | |
| Monitors for CPU Cores, Chipset Voltages, Memory. | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for fan connectors | ||
| Chassis | ||
| Form Factor | 2U Rackmountable | |
| Model | CSE-227GTS-R2K63P | |
| Dimensions | ||
| Height | 3.47" (88mm) | |
| Width | 17.6" (447mm) | |
| Depth | 29.9" (760mm) | |
| Available Colors | Black | |
| Drive Bays / Storage (per Node) | ||
| Hot-swap | 2 front Hot-swap 2.5" U.2 NVMe Gen4 drive bays | |
| Expansion Slots (per Node) | ||
| PCI-Express | 2 PCI-E Gen 4 x16 external slots | |
| 1 PCI-E Gen 4 x8 AIOM networking slot (or optional x16 AIOM w/ additional parts) | ||
| System Cooling | ||
| Fans | 4 Hot-swap heavy duty 80mm PWM fans | |
| Power Supply | ||
| Power Supply | 2600W Redundant Power Supplies with PM Bus | |
| Total Output Power and Input | 2600W with Input 200-240Vac | |
| 2600W with Input 200-240Vdc (for CQC only) | ||
| Dimension (W x H x L) | 40 x 73.5 x 265 mm | |
| +12V | Max: 216A / Min: 0A (200-240 Vac) | |
| +12Vsb | Max: 4.5A / Min: 0A | |
| Output Type | Gold Finger Connector | |
| Certification (Pending) | Titanium Level | |
| Operating Environment | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
| Product SKUs | ||
| Product SKUs | A+ Server 2114GT-DPNR (Black) | |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| Up to 5x NVIDIA A10 per node | RSC-GFR-66G4 | $ 0.00 | 1 per node | 1U Front RHS GPU Riser card with two PCI-E4.0x16slots | ||
| CBL-PWEX-1059 | $ 31.50 | 1 per node | GPU,2x4F/RA/CPU to two (2x3F+2x1F)/PCIe,P4.2, 36CM,17/20AWG | |||
| CBL-PWEX-1040 | $ 25.00 | 2 per node | PWYCB,GPU,2x4M/CPU to two (2x3F+2x1F)/PCIe,P4.2, 5CM,16/20AW | |||
| CBL-SAST-1295LP-85 | $ 0.00 | 2 per node | SlimlineLP x8 (RA) to SlimlineLP x8 (STR),12CM,85 OHM | |||
| CBL-SAST-1202LPB-85 | $ 0.00 | 1 per node | 2x SlimSASLP x8 (STR) to 2x SlimSASLP x8 (STR),BNDL,FOL | |||
| CBL-SAST-1228LP-85 | 3 per node | SlimlineLP x8 (STR) to Slimline x8 (STR),28CM,85 OHM | ||||
| CBL-SAST-1224LP-85 | $ 37.00 | 1 per node | SlimlineLP x8 (STR) to SlimlineLP x8 (RE),24CM,85 OHM | |||
| MCP-120-22710-0N | $ 71.00 | 2 per node | NVIDIA GPU A10 PCIe internal bracket for SC227G | |||
| MCP-310-22713-0B | $ 17.50 | 1 per node | Sponge air block-B for SC227G | |||
| 3x NVIDIA A40 per node | MCP-310-22713-0B | $ 17.50 | 1 per node | Sponge air block-B for SC227G | ||
| MCP-120-22709-0N | $ 71.00 | 1 per node | NVIDIA GPU universal internal bracket (w/ DW) for SC227G | |||
| 2x NVIDIA A100/A30 per node | MCP-120-22709-0N | $ 71.00 | 2 per node | NVIDIA GPU universal internal bracket (w/ DW) for SC227G | ||
| 3x NVIDIA A100/A30 per node | MCP-120-22709-0N | $ 71.00 | 2 per node | NVIDIA GPU universal internal bracket (w/ DW) for SC227G | ||
| MCP-310-22713-0B | $ 17.50 | 1 per node | Sponge air block-B for SC227G | |||
| 2x NVIDIA A16 | MCP-120-22709-0N | $ 71.00 | 2 per node | NVIDIA GPU universal internal bracket (w/ DW) for SC227G | ||
| 3x NVIDIA A16 | MCP-120-22709-0N | $ 71.00 | 2 per node | NVIDIA GPU universal internal bracket (w/ DW) for SC227G | ||
| MCP-310-22713-0B | $ 17.50 | 1 per node | Sponge air block-B for SC227G | |||
| 1x RTX 5000 ADA per node | CBL-PWEX-0960-30 → in GPU slot2 | 1 per node | 12VHPWR 2x6+4S to 2 X4,ATX PH4.2,50cm,9.5A/p,16AWG,RoHS | |||
| SNK-P0062V* | 1 per node | 1U Passive Proprietary Vapor Chamber | ||||
| MCP-310-22714-0B* | 1 per node | Mylar air shroud-C2 H12SSG-AN6 for SC227G | ||||
| CBL-SAST-1209F-85** | 2 per node | SlimSAS (x8 STR to x8 STR),9CM,FFC,FOLD,85 OHM,RoHS | ||||
| CBL-SAST-1224LP-85** | 1 per node | SlimlineLP x8 (STR) to SlimlineLP x8 (RE),24CM,85 OHM | ||||
| CBL-SAST-1201LL4FB-85** | 1 per node | 2x (SlimSAS LP,x8 to x8,STR),BNDL,FLD,FFC,85 OHM,RoHS | ||||
| 2x RTX 5000 ADA per node | CBL-PWEX-0960-50 → in GPU slot3 & slot5 | 2 per node | 12VHPWR 2x6+4S to 2 X4,ATX PH4.2,50cm,9.5A/p,16AWG,RoHS | |||
| SNK-P0062V* | 1 per node | 1U Passive Proprietary Vapor Chamber | ||||
| MCP-310-22714-0B* | 1 per node | Mylar air shroud-C2 H12SSG-AN6 for SC227G | ||||
| CBL-SAST-1209F-85** | 2 per node | SlimSAS (x8 STR to x8 STR),9CM,FFC,FOLD,85 OHM,RoHS | ||||
| CBL-SAST-1224LP-85** | 1 per node | SlimlineLP x8 (STR) to SlimlineLP x8 (RE),24CM,85 OHM | ||||
| CBL-SAST-1201LL4FB-85** | 1 per node | 2x (SlimSAS LP,x8 to x8,STR),BNDL,FLD,FFC,85 OHM,RoHS | ||||
| 3x RTX 5000 ADA per node | CBL-PWEX-0960-50 → for GPU slot3 & slot5 | 2 per node | 12VHPWR 2x6+4S to 2 X4,ATX PH4.2,50cm,9.5A/p,16AWG,RoHS | |||
| CBL-PWEX-0960-30 → for GPU slot2 | 1 per node | 12VHPWR 2x6+4S to 2X4F,ATX PH4.2,30cm,9.5A/p,16# RoHS | ||||
| SNK-P0062V* | 1 per node | 1U Passive Proprietary Vapor Chamber | ||||
| MCP-310-22714-0B* | 1 per node | Mylar air shroud-C2 H12SSG-AN6 for SC227G | ||||
| CBL-SAST-1209F-85** | 2 per node | SlimSAS (x8 STR to x8 STR),9CM,FFC,FOLD,85 OHM,RoHS | ||||
| CBL-SAST-1224LP-85** | 1 per node | SlimlineLP x8 (STR) to SlimlineLP x8 (RE),24CM,85 OHM | ||||
| CBL-SAST-1201LL4FB-85** | 1 per node | 2x (SlimSAS LP,x8 to x8,STR),BNDL,FLD,FFC,85 OHM,RoHS | ||||
| 2x RTX A6000 per node | MCP-120-22709-0N | $ 71.00 | 2 per node | NVIDIA GPU universal internal bracket (w/ DW) for SC227G | ||
| 2x RTX A5000 per node | - | CBL-PWEX-1059 | 1 per node | |||
| CBL-PWEX-1040 | $ 25.00 | 1 per node | PWYCB,GPU,2x4M/CPU to two (2x3F+2x1F)/PCIe,P4.2, 5CM,16/20AW | |||
| MCP-120-22709-0N | $ 71.00 | 2 per node | NVIDIA GPU universal internal bracket (w/ DW) for SC227G | |||
| 3x RTX A5000 per node | - | CBL-PWEX-1059 | 1 per node | |||
| CBL-PWEX-1040 | $ 25.00 | 2 per node | PWYCB,GPU,2x4M/CPU to two (2x3F+2x1F)/PCIe,P4.2, 5CM,16/20AW | |||
| MCP-310-22713-0B | $ 17.50 | 1 per node | Sponge air block-B for SC227G | |||
| MCP-120-22709-0N | $ 71.00 | 2 per node | NVIDIA GPU universal internal bracket (w/ DW) for SC227G | |||
| 1x RTX A4500 per node | - | CBL-PWEX-1040 | 1 per node | |||
| MCP-120-22709-0N | $ 71.00 | 1 per node | NVIDIA GPU universal internal bracket (w/ DW) for SC227G | |||
| CBL-SAST-1201LL4FB-85* | 1 per node | 2x (SlimSAS LP,x8 to x8,STR),BNDL,FLD,FFC,85 OHM,RoHS | ||||
| 2x RTX A4500 per node | - | CBL-PWEX-1059 | 1 per node | |||
| CBL-PWEX-1040 | $ 25.00 | 1 per node | PWYCB,GPU,2x4M/CPU to two (2x3F+2x1F)/PCIe,P4.2, 5CM,16/20AW | |||
| MCP-120-22709-0N | $ 71.00 | 2 per node | NVIDIA GPU universal internal bracket (w/ DW) for SC227G | |||
| CBL-SAST-1201LL4FB-85* | 1 per node | 2x (SlimSAS LP,x8 to x8,STR),BNDL,FLD,FFC,85 OHM,RoHS | ||||
| 3x RTX A4500 per node | - | CBL-PWEX-1059 | 1 per node | |||
| CBL-PWEX-1040 | $ 25.00 | 2 per node | PWYCB,GPU,2x4M/CPU to two (2x3F+2x1F)/PCIe,P4.2, 5CM,16/20AW | |||
| MCP-120-22709-0N | $ 71.00 | 2 per node | NVIDIA GPU universal internal bracket (w/ DW) for SC227G | |||
| MCP-310-22713-0B | $ 17.50 | 1 per node | Sponge air block-B for 3rd DW GPU in SC227G | |||
| CBL-SAST-1201LL4FB-85* | 1 per node | 2x (SlimSAS LP,x8 to x8,STR),BNDL,FLD,FFC,85 OHM,RoHS | ||||
| Up to 4x NVIDIA A4000 (GPU-NVQRTX-A4000) | - | RSC-GFR-66G4 | 1 per node | |||
| CBL-PWEX-1059 | $ 31.50 | 1 per node | GPU,2x4F/RA/CPU to two (2x3F+2x1F)/PCIe,P4.2, 36CM,17/20AWG | |||
| CBL-PWEX-1040 | $ 25.00 | 2 per node | PWYCB,GPU,2x4M/CPU to two (2x3F+2x1F)/PCIe,P4.2, 5CM,16/20AW | |||
| CBL-SAST-1295LP-85 | $ 0.00 | 2 per node | SlimlineLP x8 (RA) to SlimlineLP x8 (STR),12CM,85 OHM | |||
| CBL-SAST-1202LPB-85 | $ 0.00 | 1 per node | 2x SlimSASLP x8 (STR) to 2x SlimSASLP x8 (STR),BNDL,FOL | |||
| CBL-SAST-1228LP-85 | 3 per node | SlimlineLP x8 (STR) to Slimline x8 (STR),28CM,85 OHM | ||||
| CBL-SAST-1224LP-85 | $ 37.00 | 1 per node | SlimlineLP x8 (STR) to SlimlineLP x8 (RE),24CM,85 OHM | |||
| MCP-120-22708-0N | 2 per node | NVIDIA GPU RTX-A4000 PCIe internal bracket for SC227G | ||||
| MCP-310-22713-0B* | 1 per node | Sponge air block-B for SC227G | ||||
| SNK-P0062V** | 1 per node | 1U Passive Proprietary Vapor Chamber CPU HS, AS-2114GT-DNR | ||||
| MCP-310-22714-0B** | 1 per node | Mylar air shroud-C2 H12SSG-AN6 for SC227G | ||||
| CBL-SAST-1201LL4FB-85*** | 1 per node | 2x (SlimSAS LP,x8 to x8,STR),BNDL,FLD,FFC,85 OHM,RoHS | ||||
| Up to 6x T4 | - | RSC-GFR-66G4 | 1 per node | |||
| CBL-SAST-1295LP-85 | $ 0.00 | 2 per node | SlimlineLP x8 (RA) to SlimlineLP x8 (STR),12CM,85 OHM | |||
| CBL-SAST-1202LPB-85 | $ 0.00 | 1 per node | 2x SlimSASLP x8 (STR) to 2x SlimSASLP x8 (STR),BNDL,FOL | |||
| CBL-SAST-1228LP-85 | 3 per node | SlimlineLP x8 (STR) to Slimline x8 (STR),28CM,85 OHM | ||||
| CBL-SAST-1224LP-85 | $ 37.00 | 1 per node | SlimlineLP x8 (STR) to SlimlineLP x8 (RE),24CM,85 OHM | |||
| MCP-310-22713-0B | $ 17.50 | 1 per node | Sponge air block-B for SC227G | |||
| MCP-120-22705-0N | $ 71.00 | 2 per node | NVIDIA GPU T4 PCIe internal bracket for SC227G | |||
| Up to 6x A2 | - | RSC-GFR-66G4 | 1 per node | |||
| CBL-SAST-1295LP-85 | $ 0.00 | 2 per node | SlimlineLP x8 (RA) to SlimlineLP x8 (STR),12CM,85 OHM | |||
| CBL-SAST-1202LPB-85 | $ 0.00 | 1 per node | 2x SlimSASLP x8 (STR) to 2x SlimSASLP x8 (STR),BNDL,FOL | |||
| CBL-SAST-1228LP-85 | 3 per node | SlimlineLP x8 (STR) to Slimline x8 (STR),28CM,85 OHM | ||||
| CBL-SAST-1224LP-85 | $ 37.00 | 1 per node | SlimlineLP x8 (STR) to SlimlineLP x8 (RE),24CM,85 OHM | |||
| MCP-310-22713-0B | $ 17.50 | 1 per node | Sponge air block-B for SC227G | |||
| MCP-120-22710-0N | $ 71.00 | 2 per node | NVIDIA GPU universal internal bracket(w/ SW) for SC227G | |||
| 2x MI100 per node | - | CBL-PWEX-1059 | 1 per node | |||
| CBL-PWEX-1040 | $ 25.00 | 1 per node | PWYCB,GPU,2x4M/CPU to two (2x3F+2x1F)/PCIe,P4.2, 5CM,16/20AW | |||
| MCP-120-22711-0N | 2 per node | AMD GPU MI100 PCIe internal bracket for SC227G | ||||
| 3x MI100 per node | - | CBL-PWEX-1059 | 1 per node | |||
| CBL-PWEX-1040 | $ 25.00 | 2 per node | PWYCB,GPU,2x4M/CPU to two (2x3F+2x1F)/PCIe,P4.2, 5CM,16/20AW | |||
| MCP-310-22713-0B | $ 17.50 | 1 per node | Sponge air block-B for SC227G | |||
| MCP-120-22711-0N | 2 per node | AMD GPU MI100 PCIe internal bracket for SC227G | ||||
| 2x MI210 per node | - | MCP-120-22711-0N | 2 per node | |||
| 3x MI210 per node | - | MCP-120-22711-0N | 2 per node | |||
| MCP-310-22713-0B | $ 17.50 | 1 per node | Sponge air block-B for SC227G | |||
| TPM security module | - | AOM-TPM-9671V | - | |||
| AOM-TPM-9670V | $ 56.50 | 0 | TPM 2.0 module (Vertical) with Infineon 9670 | |||
| Global Services & Support | OS4HR3/2/1 | 0 | 3/2/1-year onsite 24x7x4 service | |||
| Global Services & Support | OSNBD3/2/1 | 0 | 3/2/1-year onsite NBD service |
| Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | 1 year of overnight replacement |
