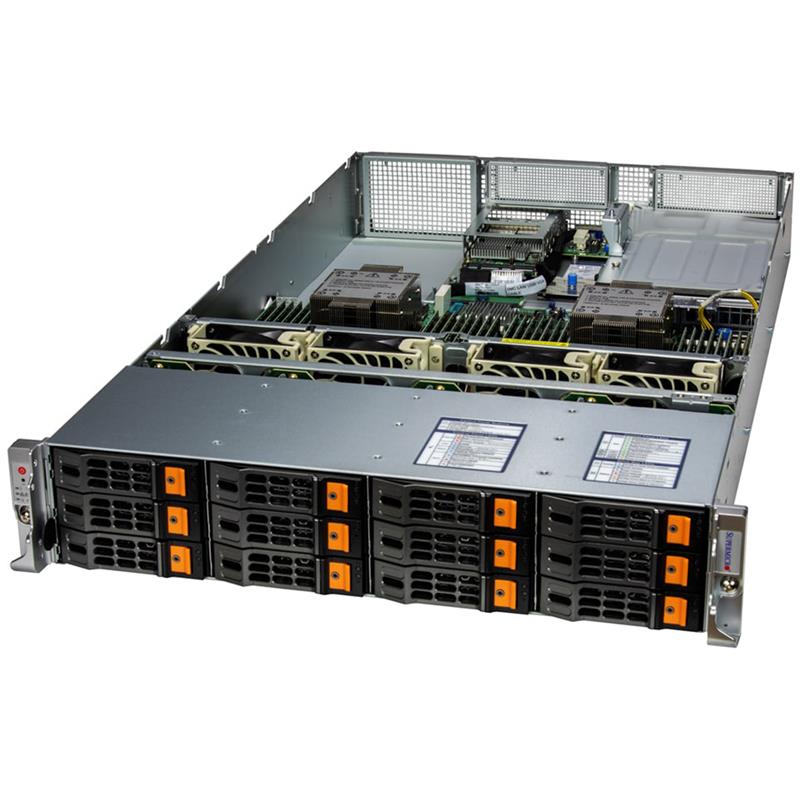

Supermicro SYS-621H-TN12R Hyper 2U Barebone Dual Intel Xeon Scalable Processors 5th/4th Generation and Intel Xeon CPU Max Series
• Virtualization
• Software-defined Storage
• AI Inference and Machine Learning
• Cloud Computing
• Enterprise Server
Barebone 2U Rackmount SuperServer, Supports Dual Socket E (LGA-4677), Supporting Intel Xeon Scalable Processors 5th and 4th Generation and Supports Intel Xeon CPU Max Series With High Bandwidth memory (HBM), Intel C741 Chipset, Up to 8TB in 32 DIMM slots, RDIMM, On-Board : Controller SATA3 (6Gbps), 12x 3.5in hot-swap NVMe/SATA/SAS Drive Bays, 2 M.2 NVMe OR 2 M.2 SATA3, Network Connectivity : Optional Selections with up to 2 AIOM Networking Slots (OCP NIC 3.0 Compatible), 1 RJ45 Dedicated BMC LAN Port, 800W/1200W Power Supply - (SYS-621H-TN12R + X13DEM)
1. Dual Socket E (LGA-4677) 5th/4th Gen Intel® Xeon® Scalable processors
2. 32 DIMM slots supporting up to 8TB of memory; RDIMMs up to DDR5-5600
3. Optional PCIe slot configurations up to 8 PCIe 5.0 x8 or 4 PCIe 5.0 x16 slots with support for double-width GPU/Accelerator cards
4. Flexible networking options with up to 2 AIOM networking slots (OCP NIC 3.0 compatible)
5. 4 heavy duty hot-swap fans with optimal fan speed control
Extra Specifications for Supermicro SYS-621H-TN12R Hyper 2U Barebone Dual Intel Xeon Scalable Processors 5th/4th Generation and Intel Xeon CPU Max Series
Product SKUs | ||
Product SKUs | SYS-621H-TN12R | |
Motherboard | ||
Motherboard | Super X13DEM | |
Processor | ||
CPU | Dual Socket E (LGA-4677) | |
4th Gen Intel® Xeon® Scalable processors | ||
Intel Xeon CPU Max Series with high bandwidth memory (HBM) | ||
Note | Supports up to 350W TDP CPUs (Air-Cooled) | |
Supports up to 350W TDP CPUs (Liquid-Cooled) | ||
System Memory | ||
Memory | Memory Capacity: 32 DIMM slots | |
Up to 8TB: 32x 256 GB DRAM | ||
Memory Type: 4800MHz ECC DDR5 | ||
Memory Voltage | 1.1 V | |
Error Detection | ECC | |
On-Board Devices | ||
Chipset | Intel® C741 | |
Network Connectivity | 2x 1GbE BaseT with Intel® i350-AM2 (optional) | |
2x 10GbE SFP+ with Intel® X710-BM2 (optional) | ||
4x 10GbE SFP+ with Intel® XL710-BM1 (optional) | ||
4x 10GbE RJ45/SFP+ with Intel® X710-TM4 (optional) | ||
2x 25GbE SFP28 with Broadcom® BCM57414 (optional) | ||
4x 25GbE RJ45/SFP28 with Mellanox® CX-4 Lx EN Intel® X550-AT2 (optional) | ||
2x 100GbE QSFP28 with Broadcom® BCM57508 (optional) | ||
2x 10GbE BaseT with Intel® X550-AT2 (optional) | ||
4x 1GbE BaseT or 4x 1GbE SFP with Intel® i350-AM4 (optional) | ||
IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
SATA | SATA3 (6Gbps); RAID 0/1/5/10 support | |
NVMe | NVMe; RAID 0/1/5/10 support (Intel® VROC RAID Key required) | |
Input / Output | ||
LAN | 1 RJ45 Dedicated BMC LAN port | |
USB | 2 USB 2.0 port(s) (2 rear) | |
Video | 1 VGA port(s) | |
System BIOS | ||
BIOS Type | AMI 256MB SPI Flash | |
Management | ||
Software | Watch Dog | |
NMI | ||
KVM with dedicated LAN | ||
Redfish API | ||
SuperDoctor® 5 | ||
Intel® Node Manager | ||
IPMI 2.0 | ||
SUM | ||
SSM | ||
SPM | ||
Power Configurations | Power-on mode for AC power recovery | |
ACPI Power Management | ||
PC Health Monitoring | ||
CPU | Monitors for CPU Cores, Chipset Voltages, Memory | |
FAN | Status monitor for speed control | |
Pulse Width Modulated (PWM) fan connectors | ||
Fans with tachometer monitoring | ||
Temperature | Monitoring for CPU and chassis environment | |
Thermal Control for fan connectors | ||
Chassis | ||
Form Factor | 2U Rackmount | |
Model | CSE-HS829-R1K24P | |
Dimensions and Weight | ||
Height | 3.5" (88.9mm) | |
Width | 17.2" (437mm) | |
Depth | 31.6" (803mm) | |
Package | 10.4" (H) x 23.8" (W) x 43.6" (D) | |
Weight | Net Weight: 37 lbs (16.8 kg) | |
Gross Weight: 63 lbs (28.6 kg) | ||
Available Color | N/A | |
Front Panel | ||
Buttons | UID button | |
Power On/Off | ||
LEDs | HDD activity | |
LAN1 activity | ||
System information | ||
Power | ||
Expansion Slots | ||
PCI-Express (PCIe) | 4 (Optional) PCIe 5.0 x16 or x8 FH, 10.5"L slot(s) | |
4 (Optional) PCIe 5.0 x8 FH, 10.5"L slot(s) | ||
Drive Bays / Storage | ||
Hot-swap | 12x 3.5" hot-swap NVMe/SATA/SAS drive bays | |
M.2 | 2 M.2 NVMe OR 2 M.2 SATA3 | |
M-Key, 2280/2210 | ||
System Cooling | ||
Fans | 4x 8cm heavy duty fans with optimal fan speed control | |
Air Shroud | 2 Air Shroud(s) | |
Liquid Cooling | Direct to Chip (D2C) Cold Plate (optional) | |
Power Supply | ||
Dimension (W x H x L) | 73.5 x 40 x 265 mm | |
AC Input | 800W: 100-127Vac / 9.8A-7A / 50-60Hz | |
1200W: 200-240Vac / 7.5A-6A / 50-60Hz | ||
+12V | Max: 83A / Min: 0A (100Vac-127Vac) | |
Max: 100A / Min: 0A (200Vac-240Vac) | ||
12V SB | Max: 2.1A / Min: 0A | |
Output Type | 25 Pairs Gold Finger Connector | |
Certification | Titanium Level | |
Operating Environment | ||
Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | ||
Operating Relative Humidity: 8% to 90% (non-condensing) | ||
Non-operating Relative Humidity: 5% to 95% (non-condensing) |
Name | Part Number | Price | Add to Cart | Qty. | Description | |
---|---|---|---|---|---|---|
2nd AIOM/OCP NIC 3.0 Slot | Refer to User's Manual | 0 | AIOM slot A2 kit | |||
Cable Management Arm + Rail Set | MCP-290-00168-0N + MCP-290-11901-0N | 0 | 7.5" cable management arm + 41" long ball-bearing rail set | |||
Drive Bay Configuration Options | Refer to User's Manual | 0 | Drive bay configuration options for NVMe, SAS, or SATA support | |||
Global Services & Support | OS4HR3/2/1 | 0 | Gold Level, 3/2/1-year onsite 24x7x4 SLA | |||
Global Services & Support | SMSAD3/2/1 | 0 | Bronze Level, 3/2/1-year 3BD SLA | |||
Global Services & Support | OSNBD3/2/1 | 0 | Silver Level, 3/2/1-year onsite NBD SLA | |||
PCIe Slot Configuration Options | Refer to User's Manual | 0 | PCIe slot configuration options to enable PCIe slots 1-8 | |||
Power Supply | PWS-1K24A-1R • (included in the system) | 0 | 1U 800W/1200W Redundant Power Supply, 80 PLUS Titanium, W73.5xH40xL265mm, C14 inlet | |||
Power Supply | PWS-1K63A-1R • | 0 | 1U 1000W/1600W Redundant Power Supply, 80 PLUS Titanium, W73.5xH40xL265mm, C14 inlet | |||
Power Supply | PWS-2K07A-1R • | 0 | 1U 1000W/2000W Redundant Power Supply, 80 PLUS Titanium, W73.5xH40xL265mm, C14 inlet | |||
Power Supply | PWS-2K63A-1R • | 0 | 1U 2600W Redundant Power Supply, 80 PLUS Titanium, W73.5xH40xL265mm, C20 inlet | |||
Power Supply | MCP-250-00025-0N | 0 | Single Power Supply Dummy Cover (W73.5mm) for 1U/2U Hyper Chassis | |||
Rail Set | MCP-290-11901-0N | $ 115.00 | 1 | 41" ball-bearing rail set for Hyper servers | ||
Rail Set | MCP-290-21103-0N | $ 110.00 | 1 | 21.65" ball-bearing rail set for Hyper servers | ||
Rail Set | MCP-290-11902-0N (included in the system ) | 1 | 35.25" ball-bearing rail set for Hyper servers | |||
Rail Set | MCP-290-11903-0N • | 1 | 30.5" ball-bearing rail set for Hyper servers | |||
Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) | |||
Trusted Platform Module Options | AOM-TPM-9672V-FIPS-O | 1 | AOM-TPM-9672V-FIPS TPM 2.0 support FIPS | |||
Trusted Platform Module Options | AOM-TPM-9672V-O • | 1 | SPI capable vertical TPM 2.0 |
