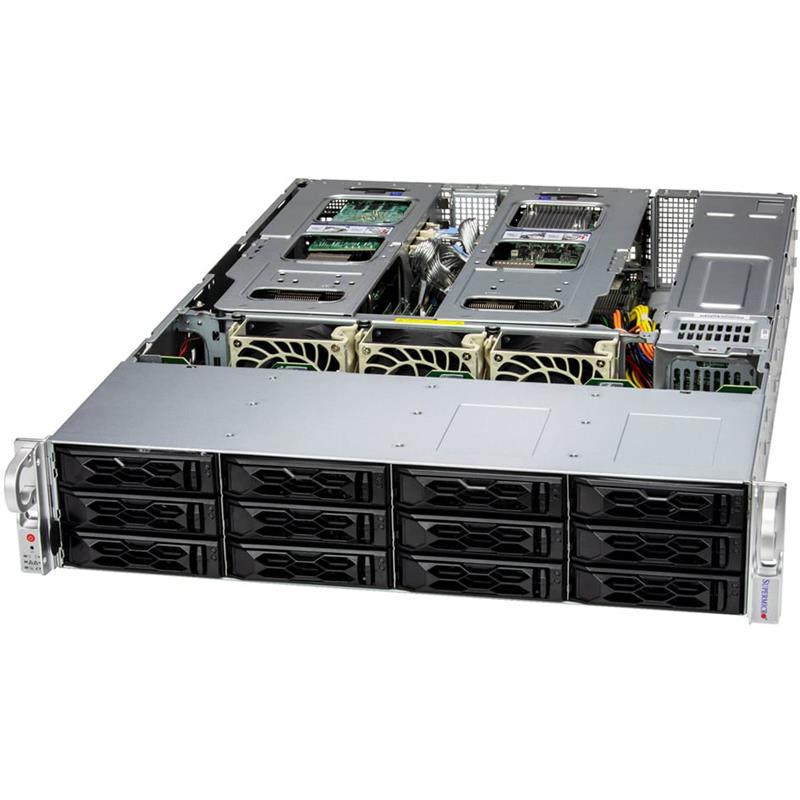

Supermicro SYS-621C-TN12R CloudDC 2U Barebone Dual Intel Xeon Scalable Processors 5th and 4th Generation
[NR] X13 CloudDC 2U, 12x 3.5" X13DDW-A, LA26AC12-R1K23AW2
[NR] X13 CloudDC 2U, 12x 3.5" X13DDW-A, LA26AC12-R1K23AW2
[NR] X13 CloudDC 2U, 12x 3.5" X13DDW-A, LA26AC12-R1K23AW2
[NR] X13 CloudDC 2U, 12x 3.5" X13DDW-A, LA26AC12-R1K23AW2
[NR] X13 CloudDC 2U, 12x 3.5" X13DDW-A, LA26AC12-R1K23AW2

Supermicro SYS-621C-TN12R CloudDC 2U Barebone Dual Intel Xeon Scalable Processors 5th and 4th Generation

• Web Server, Firewall Application
• Data Center Optimized, Value IaaS
• Cloud Computing, Compact Server
• DNS & Gateway Servers, Firewall Application
• CDN, Edge Nodes

Barebone 2U Rackmount SuperServer, Supports Dual Socket E (LGA-4677), Supporting Intel Xeon Scalable Processors 5th and 4th Generation, Intel C741 Chipset, Up to 4TB in 16 DIMM slots, RDIMM, On-Board: SATA3 (6Gbps) Controller RAID 0/1/5/10 support, 12x 3.5in hot-swap NVMe/SATA/SAS Drive Bays (12x 3.5in NVMe hybrid), 2x PCIe 5.0 x4 M-Key 2280, Network Connectivity: Dual AIOM (OCP 3.0) Slots With NCSI For Networking, 1 dedicated IPMI LAN, 1200W/1000W Power Supply - (SYS-621C-TN12R + X13DDW-A)

$ 2,555.00$ 2,555.002555.0USD

$ 2,555.00

Option not available

PreOrder
60 lb

    This combination does not exist.

    Add to Cart

    1. Dual sockets E (LGA-4677) 5th and 4th Gen Intel®  Xeon® Scalable processors
    2. 16 DIMMs up to 4TB 3DS ECC DDR5-5600: RDIMM
    3. 4 PCIe 5.0 x8 FHHL (optional: combine into 2 PCIe 5.0 x16); 2 PCIe 5.0 x16 FHHL; 2 PCIe 5.0 x4 NVMe M.2
    4. Dual AIOM (OCP 3.0) slots with NCSI for networking, 1 dedicated IPMI LAN
    5. 12x 3.5/2.5" hot-swap hybrid NVMe/SATA/SAS drive bays
    6. 3 heavy duty fans with optimal fan speed control, 1 air shroud
    7. 1200W redundant Titanium level 100-240Vac and 200-240 Vdc power supplies
    8. 1 VGA, 1 COM, 2 USB 3.0 (rear)

    Extra Specifications for Supermicro SYS-621C-TN12R CloudDC 2U Barebone Dual Intel Xeon Scalable Processors 5th and 4th Generation

    Product SKUs
    Product SKUsSYS-621C-TN12R
    Motherboard
    MotherboardSuper X13DDW-A
    Processor
    CPUDual Socket E (LGA-4677)
    4th Gen Intel® Xeon® Scalable processors
    NoteSupports up to 350W TDP CPUs (Air Cooled)
    Certain high TDP CPUs have support conditions. Contact Technical Support or Representative for details
    System Memory
    MemoryMemory Capacity: 16 DIMM slots
    Up to 4TB: 16x 256 GB DRAM
    Memory Type: 4800MHz ECC DDR5 RDIMM
    Memory Voltage1.1 V
    Error DetectionECC
    On-Board Devices
    SATASATA3 (6Gbps); RAID 0/1/5/10 support
    NVMeNVMe; RAID 0/1/5/10 support (*VROC is required)
    ChipsetIntel® C741
    Network Connectivitywith Advanced IO Module, AIOM (OCP 3.0 NIC, refer to AIOM Network Card(s) under Optional Parts List for options)
    IPMISupport for Intelligent Platform Management Interface v.2.0
    IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    NoteHigh TDP 200-400G NICs have support conditions due to thermal requirements.
    Input / Output
    LAN1 Dedicated IPMI LAN port
    USB2 USB 3.0 port(s) (2 rear)
    Video1 VGA port(s)
    Serial Port1 COM Port(s) (1 rear)
    System BIOS
    BIOS TypeAMI 32MB SPI FLASH ROM
    Management
    SoftwareWatch Dog
    NMI
    KVM with dedicated LAN
    Redfish API
    SuperDoctor® 5
    Intel® Node Manager
    IPMI 2.0
    SUM
    SSM
    SPM
    SCC
    Power ConfigurationsACPI/APM Power Management
    PC Health Monitoring
    CPUMonitors for CPU Cores, Chipset Voltages, Memory.
    8 Phase-switching voltage regulator
    FANStatus monitor for speed control
    Pulse Width Modulated (PWM) fan connectors
    Fans with tachometer monitoring
    TemperatureMonitoring for CPU and chassis environment
    Thermal Control for fan connectors
    Chassis
    Form Factor2U Rackmount
    ModelCSE-LA26AC12-R1K23AW2
    Dimensions and Weight
    Height3.5" (89mm)
    Width17.2" (437mm)
    Depth25.5" (648mm)
    Package11.4" (H) x 26.7" (W) x 34.5" (D)
    WeightNet Weight: 33.5 lbs (15.2 kg)
    Gross Weight: 60 lbs (27.2 kg)
    Available ColorBlack front & silver body
    Front Panel
    ButtonsPower On/Off
    Unit Identifier (UID)
    LEDsPower status
    Network activity
    Drive activity
    Universal Information
    Expansion Slots
    PCI-Express (PCIe)2 PCIe 5.0 x16 FHHL slot(s)
    4 PCIe 5.0 x8 FHHL slot(s)
    Drive Bays / Storage
    Hot-swap12x 3.5" hot-swap NVMe/SATA/SAS drive bays (12x 3.5" NVMe hybrid) (Storage drives require additional cables from the optional parts list.)
    M.2M-Key, 2280
    2x PCIe 5.0 x4
    System Cooling
    Fans3x 8cm heavy duty fans with optimal fan speed control
    Air Shroud1 Air Shroud(s)
    Power Supply
    Dimension (W x H x L)76 x 40 x 336 mm
    AC Input1000W: 100-127Vac / 15A-12A / 50-60Hz
    1200W: 200-240Vac / 8.5A-7A / 50-60Hz
    +12VMax: 83A / Min: 0A (100Vac-127Vac)
    Max: 100A / Min: 0A (200Vac-240Vac)
    5V SBMax: 4A / Min: 0A
    Output Type19 Pairs Gold Finger Connector
    CertificationTitanium Level
    Operating Environment
    Environmental Spec.Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
    Operating Relative Humidity: 8% to 90% (non-condensing)
    Non-operating Relative Humidity: 5% to 95% (non-condensing)
    Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
    NamePart NumberPriceAdd to CartQty.Description
    3808 HBA CardAOC-S3808L-L8IT$ 397.501Standard LP 8 internal ports (12Gb/s) Gen-4 16HDD HBA
    3808 HBA CardCBL-SAST-1276F-100$ 37.001Slimline x8 (LE) to 2x Slimline x4 (STR) 76/76CM, alternative: CBL-SAST-1264F-100
    3816 HBA CardAOC-S3816L-L16IT$ 497.501Standard LP 16 internal ports (12Gb/s) Gen-4 122HDD HBA
    3816 HBA CardCBL-SAST-1265F-100$ 34.001Slimline x8 (STR) to Slimline x4 (STR) 64CM
    3816 HBA CardCBL-SAST-1276F-100$ 37.001Slimline x8 (LE) to 2x Slimline x4 (STR) 76/76CM, alternative: CBL-SAST-1264F-100
    3908 RAID CardAOC-S3908L-H8IR-16DD$ 695.501Standard LP 8 internal ports (12Gb/s) Gen-4 122HDD RAID 0, 1, 5, 6, 10, 50, 60
    3908 RAID CardCBL-SAST-1276F-100$ 37.001Slimline x8 (LE) to 2x Slimline x4 (STR) 76/76CM, alternative: CBL-SAST-1264F-100
    3908/3916 CacheVaultBTR-CVPM05$ 264.001CacheVault for Broadcom 3908/3916 (requires a mount)
    3916 RAID CardAOC-S3916L-H16IR-32DD$ 786.501Standard LP 16 internal ports (12Gb/s) Gen-4, 32HDD RAID 0, 1, 5, 6, 10, 50, 60
    3916 RAID CardCBL-SAST-1265F-100$ 34.001Slimline x8 (STR) to Slimline x4 (STR) 64CM
    3916 RAID CardCBL-SAST-1276F-100$ 37.001Slimline x8 (LE) to 2x Slimline x4 (STR) 76/76CM, alternative: CBL-SAST-1264F-100
    AIOM Network Card(s)AOC-AG-i4SM0OCP 3.0 AIOM 4x 1GbE SFP PCIe 2.1 x4 Intel® i350-AM4
    AIOM Network Card(s)AOC-ATGC-i2TM0OCP 3.0 AIOM 2x 10GbE RJ45 PCIe 3.0 x4 Intel® X710-AT2
    AIOM Network Card(s)AOC-AG-i4M0OCP 3.0 AIOM 4x 1GbE RJ45 PCIe 2.1 x4 Intel® i350-AM4
    AIOM Network Card(s)AOC-AG-i2M0OCP 3.0 AIOM 2x 1GbE RJ45 PCIe 2.1 x4 Intel® i350-AM2
    AIOM Network Card(s)AOC-A100G-b2CM0OCP 3.0 AIOM 2x 100GbE QSFP28 PCIe 4.0 x16 Broadcom® BCM57508
    AIOM Network Card(s)AOC-A25G-b2SM0OCP 3.0 AIOM 2x 25GbE SFP28 PCIe x8 Broadcom® BCM57414
    AIOM Network Card(s)AOC-A25G-i2SM0OCP 3.0 AIOM 2x 25GbE SFP28 PCIe x8 Intel® E810-XXVAM2
    AIOM Network Card(s)AOC-A25G-i4SM0OCP 3.0 AIOM 4x 25GbE SFP28 PCIe x8 Intel® E810-CAM1
    AIOM Network Card(s)AOC-A25G-m2SM0OCP 3.0 AIOM 2x 25GbE SFP28 PCIe x8 Mellanox® CX-6 LX
    AIOM Network Card(s)AOC-AH25G-m2S2TM0OCP 3.0 AIOM 2x 25GbE SFP28 & 2x 10GbE RJ45 PCIe x8/x4 Mellanox® CX4 Lx EN & Intel® X550-AT2
    AIOM Network Card(s)AOC-ATG-b2TM0OCP 3.0 AIOM 2x 10GbE RJ45 PCIe 3.0 x4 Broadcom® BCM57416
    AIOM Network Card(s)AOC-ATG-i2SM0OCP 3.0 AIOM 2x 10GbE SFP+ PCIe 3.0 x8 Intel® X710-BM2
    AIOM Network Card(s)AOC-ATG-i2T2SM0OCP 3.0 AIOM 4x 10GbE RJ45 & SFP+ PCIe x8 Intel® X710-TM4
    AIOM Network Card(s)AOC-ATG-i2TM0OCP 3.0 AIOM 2x 10GbE RJ45 PCIe 3.0 x4 Intel® X550-AT2
    AIOM Network Card(s)AOC-ATG-i4SM0OCP 3.0 AIOM 4x 10GbE SFP+ PCIe 3.0 x8 Intel® XL710-BM1
    Cable Management ArmMCP-120-82601-0N$ 31.001Cable Arm Adapter
    Cable Management ArmMCP-290-00073-0N$ 81.501Supermicro Cable Management Arm for 2U, 3U and 4U chassis
    CacheVault MountMCP-240-00203-0N$ 26.001CacheVault mounting bracket for PCIe slot
    CacheVault MountMCP-240-00127-0N$ 20.001CacheVault mounting tray for 2.5" drive bay
    CacheVault MountMCP-240-21747-0N$ 112.001CacheVault mounting card for AIOM slot
    GPU Power CableCBL-PWEX-1361RF-10112VHPWR 2x6+4S to ATX 2X4M P4.2 10cm
    GPU Power CableCBL-PWEX-1040$ 25.002PWYCB GPU 2x4M/CPU to two (2x3F+2x1F)/PCIe P4.2 5CM
    GPU Support (FL)MCP-310-82621-0N$ 34.001Plastic air shroud X13DDW for SCLA26-AW (GPU)
    GPU Support (FL)SNK-P0087V$ 0.0021U Passive CPU VC HS for X13 Intel Eagle Stream Platform
    GPU Support (LP)MCP-310-82614-0B1Mylar air block set X12DDW for SCLA26-AW
    LicenseSFT-SDDC-SINGLE$ 303.501Supermicro Data Center Monitor License
    LicenseSFT-DCMS-SINGLE •1Supermicro System Managment Software License
    M.2 TrayAOC-SLG4-2H8M2$ 224.000Standard LP PCIe x8 supporting 2 PCIe 4.0 x4 M-Key M.2 NVMe/SATA Modules RAID 0, 1
    NC-SI CableCBL-PWEX-1099-341FLAT IDC 2X11F/P1.27 TO IDC 2X11F/P1.27 NCSI 0.5A 35CM
    NVMe CableCBL-KIT-621C-TN12R-121Enables 12 NVMe drive bays. Kit includes: 4x CBL-MCIO-1235M5FY (bay #2-5, #8-11) 2x CBL-MCIO-1255M5FH (bay # 0-1, #6-7)
    Power SupplyPWS-1K68A-1R$ 460.002AC-DC 1600W Titanium Level Power Supply
    Power SupplyPWS-1K23A-1R$ 341.502(Default) AC-DC 1200W Titanium Level Power Supply
    Power SupplyPWS-1K11P-1R$ 382.502DC 48V Input 1010W Power Supply
    Rear NVMe Drive KitCBL-MCIO-1235M5FY •1MCIO x8 (STR) to 2x MCIO x4 (STR) 35CM
    Rear NVMe Drive KitCBL-PWEX-1034Z-30$ 0.0012 ATX 1x4 P4.2 to MicroHi 2x(4+2) 30cm 16AWG
    Rear NVMe Drive KitMCP-220-82623-0N$ 176.001Rear Window Module for 2x 2.5" NVMe Drives PCIE Gen 5
    Rear SATA Drive KitCBL-SAST-1295LP-100$ 36.001(Onboard SATA Only) SlimlineLP x4 (STR) to 4x SATA (STR),75/75/90/90/75CM
    Rear SATA Drive KitCBL-SAST-1291-1001(Controller Card) SlimSAS (x8 to x4) STR+to 4 SATA&SB,75/90/85CM
    Rear SATA Drive KitMCP-220-82616-0N$ 112.001Rear Window Module for 2x 2.5" SATA/SAS Drives
    SATA CableCBL-KIT-SATA-CDC-11Enables 12 SATA drive bays. Kit includes: 1x CBL-SAST-1274LP-100 (bay #0-7) 1x CBL-SAST-1285LP-100 (bay #8-11)
    TPMAOM-TPM-9670V$ 56.501SPI capable TPM 2.0 with Infineon 9670 controller vertical form factor
    TPMAOM-TPM-9670V-S-FIPS$ 63.501SPI capable TPM 2.0 with Infineon 9670 controller w/ FIPS vertical form factor
    TPMAOM-TPM-9672V$ 72.001SPI capable TPM 2.0 with Infineon 9672 controller vertical form factor
    TPMAOM-TPM-9672V-FIPS$ 78.001SPI capable TPM 2.0 with Infineon 9672 controller w/ FIPS vertical form factor
    VROC HW KeyAOC-VROCPREMOD$ 344.501Intel VROC Premium RAID 0, 1, 5, 10
    VROC HW KeyAOC-VROCSTNMOD$ 176.001Intel VROC Standard RAID 0, 1, 10

    Warranty:3 years labor, 1 year parts, 1 year advance replacement (doa)
    Coverage:Replacement or repair
    Average Service Time:Overnight replacement for 1 year, 2 weeks afterward
