| System Memory |
| Memory Capacity | 2 DIMM slots |
| Up to 64GB Unbuffered non-ECC SODIMM, DDR4-3200MHz |
| Memory Type | 3200/2933/2666 MT/s non-ECC DDR4 SODIMM Unbuffered |
| DIMM Sizes | 4GB, 8GB, 16GB, 32GB |
| Memory Voltage | 1.2V |
| On-Board Devices |
| Chipset | Intel Q670E |
| Network Controllers | Single LAN with Intel® Ethernet Controller I210-AT |
| Single LAN with Intel® Ethernet i225LM |
| SATA | Intel Q670E controller for 5 SATA3 (6 Gbps) ports; RAID 0,1,5,10 |
| Audio | ALC 888S HD Audio |
| Graphics | 1 Intel® UHD Graphics port(s) |
| 4 Independent Displays thru HDMI 2.0b/HDMI1.4/DP/LVDS |
| Input / Output |
| SATA | 5 SATA3 (6Gbps) port(s) (1 header, 4 via Oculink) |
| Video Output | 1 HDMI 2.0b port(s), 2 DP (DisplayPort) port(s), 1 HDMI port(s), 1 LVDS port(s) |
| TPM | TPM Header & Chip both |
| USB | 4 USB 3.2 Gen2 port(s) (4 rear type A) |
| 2 USB 3.2 Gen1 port(s) (2 via header) |
| 2 USB 2 port(s) (2 via header) |
| Serial Port | 1 COM Port(s) (1 header) |
| System BIOS |
| BIOS Type | AMI UEFI |
| BIOS Features | RTC (Real Time Clock) Wakeup |
| SMBIOS 3.0 or later |
| UEFI 2.7 |
| PCI FW 3.0 |
| ACPI 6.1 |
| Management |
| Software | SuperDoctor® 5, AMT, vPro |
| System Management Software | Wake-on-LAN, Watchdog |
| Power Configurations | Power-on mode for AC power recovery, ACPI Power Management, ATX Power connector, CPU thermal trip support for processor protection, +12V DC Power Input |
| PC Health Monitoring |
| Voltage | VBAT, System temperature, System level control, PCH temperature, HT, CPU temperature, Chipset Voltage, 3 -fan status, +3.3V, +1.8V, Monitors CPU Core Voltages |
| LED | Power LED |
| Temperature | Thermal Control for 3 Fan Connectors |
| Other Features | WOL, System level control, RoHS, M.2 NGFF connector, Chassis intrusion header, ATX Power connector, ACPI power management, 8-pin 12v DC power connector, 12V DC or ATX Power Source |
| FAN | Fan speed control |
| PWM fan speed control |
| System level control |
| 3x 4-pin fan headers (up to 3 fans) |
| 3 fans with tachometer monitoring |
| Product SKUs |

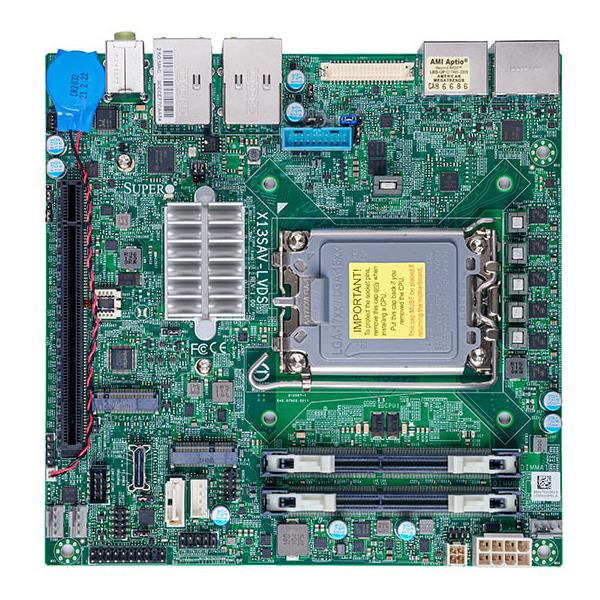

| Product SKUs | MBD-X13SAV-LVDS |
| Physical Stats |
| Form Factor | Mini-ITX |
| Dimension | 6.7" x 6.7" (17.02cm x 17.02cm) |
| Processor |
| CPU | 13th/ 12th Generation Intel Core i9/Core i7/Core i5/Core i3/Pentium/Celeron Processor |
| Single Socket LGA-1700 supported |
| Core | Up to 24 cores |
| Expansion Slots |
| PCIe | 1 PCIe 5.0 x16 slots (16/NA or 8/8) |
| M.2 | M.2 Interface: 1 PCIe 4.0 x4; 1 CNVi/PCIe 3.0 x1/USB2 |
| Form Factor: 2280, 2230 |
| Key: M-Key, E-Key |
| Operating Environment |
| Operating Temperature Range | 0°C - 60°C (32°F - 140°F) |
| Non-Operating Temperature Range | -40°C - 85°C (-40°F - 185°F) |
| Operating Relative Humidity Range | 10% - 85% (non-condensing) |
| Non Operating Relative Humidity Range | 10% - 95% (non-condensing) |
