| System Memory |
| Memory Capacity | 4 DIMM slots |
| *Supports up to 128GB of DDR5 UDIMM with speeds of up to 4400MT/s with one DIMM, or 4000MT/s with two DIMM single rank, or 3600MT/s with two DIMM dual rank in four memory slots |
| Up to 128GB Unbuffered ECC/non-ECC UDIMM, DDR5-4400MHz |
| Memory Type | 4400/4000/3600 MT/s |
| DIMM Sizes | 4GB, 8GB, 16GB, 32GB |
| Memory Voltage | 1.1V |
| Error Detection | Corrects single-bit errors |
| Detects double-bit errors (using ECC memory) |
| On-Board Devices |
| Chipset | Intel R680E |
| Network Controllers | Dual LAN with Intel® Ethernet i225LM |
| SATA | Intel R680E controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10 |
| Audio | ALC 888S HD Audio |
| Input / Output |
| SATA | 4 SATA3 (6Gbps) port(s) |
| Video Output | 1 VGA port(s), 1 DVI - D port(s), 1 HDMI 2.0b port(s), 2 DP (DisplayPort) port(s) |
| USB | 4 USB 2.0 port(s) (4 via header) |
| 2 USB 3.2 Gen1 port(s) (2 via header) |
| 6 USB 3.2 Gen2 port(s) (4 rear type A; 2 via header) |
| Serial Port | 4 COM Port(s) (2 header RS232/422/485; 2 header RS232) |
| TPM | TPM TPM 2.0 onboard |
| System BIOS |
| BIOS Type | AMI UEFI |
| BIOS Features | RTC (Real Time Clock) Wakeup |
| SMBIOS 3.0 or later |
| UEFI 2.7 |
| PCI FW 3.0 |
| ACPI 6.1 |
| Management |
| Software | SuperDoctor® 5, SUM, AMT, vPro, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support, IPMICFG, IPMIView for Linux/Windows, SMCIPMITool |
| System Management Software | Wake-on-LAN, Watchdog, KVM with dedicated LAN |
| Power Configurations | ACPI Power Management, ATX Power connector, +12V DC Power Input |
| PC Health Monitoring |
| Voltage | VBAT, Memory temperature, CPU temperature, Chipset Voltage, 4 fans with tachometer monitoring, 1.05 (PCH), +5V standby, +5V, +3.3V, +12V, +1.8V, +1.5V, +1.35V, 5 fans with tachometer status monitoring, BMC/IPMI Heartbeat LED, Dual Cooling Zone, UID |
| LED | Power LED |
| Temperature | Monitoring for CPU and chassis environment |
| CPU thermal trip support |
| Other Features | RoHS, M.2 NGFF connector, Chassis intrusion detection, ATX Power connector, ACPI power management, 12V DC or ATX Power Source |
| FAN | 5x 4-pin fan headers (up to 5 fans) |
| Product SKUs |

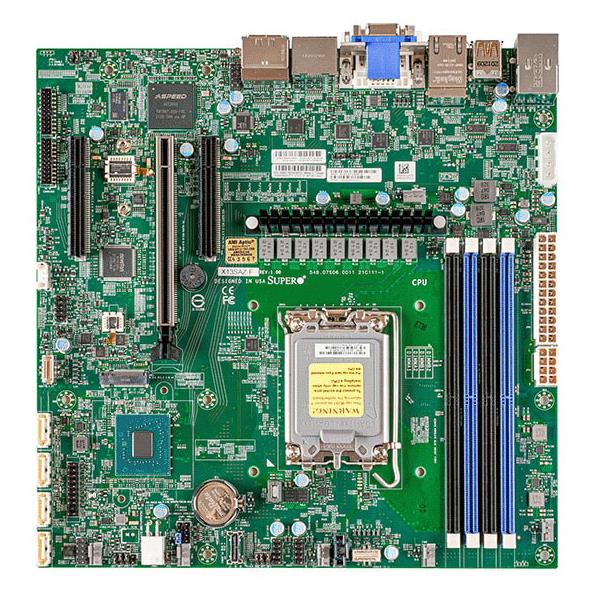

| Product SKUs | MBD-X13SAZ-F |
| Physical Stats |
| Form Factor | Micro-ATX |
| Dimension | 9.6" x 9.6" (24.38cm x 24.38cm) |
| Processor |
| CPU | 13th/ 12th Generation Intel Core i9/Core i7/Core i5/Core i3/Pentium/Celeron Processor |
| Single Socket LGA-1700 supported |
| Core | Up to 24 cores |
| Expansion Slots |
| PCIe | 1 PCIe 5.0 x16, |
| 2 PCIe 4.0 x4 (in x8 slot) |
| M.2 | Key: M-Key |
| Form Factor: 2280/22110 |
| M.2 Interface: 1 PCIe 4.0 x4 |
| Operating Environment |
| Operating Temperature Range | 0°C - 60°C (32°F - 140°F) |
| Non-Operating Temperature Range | -40°C - 85°C (-40°F - 185°F) |
| Operating Relative Humidity Range | 10% - 85% (non-condensing) |
| Non Operating Relative Humidity Range | 5% - 95% (non-condensing) |
