- Supermicro X12STN-E Motherboard 3.5" SBC Embedded Intel Core i5-1145GRE Processor 11th Generation

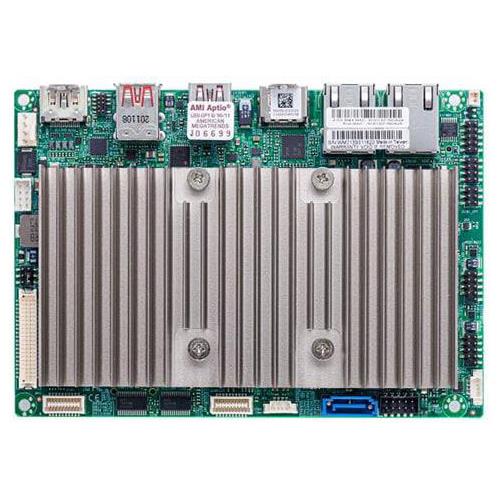

Supermicro X12STN-E Motherboard 3.5" SBC Embedded Intel Core i5-1145GRE Processor 11th Generation
Embedded Intel Core i5-1145GRE Processor 4-Core
Up to 64GB DDR4-3200MHz SODIMM in 2 DIMM slots
On-Board: SATA3 6Gbps controller, 2x 2.5 Gigabit LAN Ports
Includes M.2 2242/3042/2280 B-Key, M.2 2230 E-Key, M.2 2242/2280 M-Key
Motherboard 3.5" SBC, Embedded Intel Core i5-1145GRE Processor 11th Generation, 1.50GHz 4-Core/8 thread/8MB Cache. Up to 64GB DDR4-3200MHz SODIMM in 2 DIMM slots - On-Board: SATA3 6Gbps controller, 2x 2.5 Gigabit LAN Ports, TPM, M.2 2242/3042/2280 B-Key, M.2 2230 E-Key, M.2 2242/2280 M-Key - (MBD-X12STN-E-O)
1. Intel® 11th Generation Core™ i5-1145GRE Processor
2. Up to 80 EU with Intel® Iris® Xe graphics capable of 4K60 resolution
3. High-speed connectivity through dual 2.5GbE, 4 USB3.1 gen2, PCIe 4.0 expansion
4. 4 display support(HDMI2.0b/1.4b, DP1.4 and 48-bit LVDS)
5. Rich I/O and expansion: 4 COM, 8 USB, audio with AMP, triple M.2
6. Accelerated AI inferencing and computer vision in parallel without extra hardware
7. 100% wide temp grade design and components applied
8. 12-24V (10% tolerance) wide range power input support
9. Hailo-8™ powerful and efficient Edge AI solution integration ready
Extra Specifications for Supermicro X12STN-E Motherboard 3.5" SBC Embedded Intel Core i5-1145GRE Processor 11th Generation
| System Memory | ||
| Memory Capacity | 2 DIMM slots | |
| Up to 64GB Unbuffered non-ECC SODIMM, DDR4-3200MHz | ||
| Memory Type | 3200 MT/s non-ECC DDR4 Unbuffered ered 260pin SODIMM | |
| DIMM Sizes | 4GB, 8GB, 16GB, 32GB | |
| Memory Voltage | 1.2V | |
| On-Board Devices | ||
| Chipset | System on Chip | |
| Audio | ALC 888S HD Audio | |
| Graphics | 1 Intel® Iris® Xe Graphics port(s) | |
| Dual channel 48-bit LVDS(max. resolution up to 1920x1200@60Hz), HDMI 2.0b (max. resolution up to 4096x2160@60Hz), HDMI 1.4b (max. resolution up to 4096x2160@30Hz), DP (Alt mode, max. resolution up to 4096x2304@60Hz) | ||
| Network Controllers | Dual LAN with Intel® Ethernet Controller I225-IT, 2.5G, TSN, industrial grade. | |
| Input / Output | ||
| LAN | 2 RJ45 2.5 Gigabit Ethernet LAN port | |
| Video Output | 2 HDMI port(s), 1 48-bit LVDS port(s), 1 DP (Alt mode) port(s) | |
| TPM | 1 TPM Chip | |
| SATA | 1 SATA3 (6Gbps) port(s) | |
| USB | 4 USB 2.0 port(s) (4 via header) | |
| 4 USB 3.2 Gen2 port(s) (3 rear type A; 1 rear type C) | ||
| Serial Port | 4 COM Port(s) (4 header), (2 x RS232, 2 RS232/422/485, RS-485 supports Auto flow control) | |
| Others | 1 8-bit GPIO header | |
| 1 System Fan | ||
| 1 HD Audio header Mic-in/Headphone-out (Audio only support at 0~60C) | ||
| 1 SMBus header | ||
| 1 speaker out header with 3W amplifier | ||
| System BIOS | ||
| BIOS Type | AMI UEFI | |
| BIOS Features | SMBIOS 3.0 or later | |
| UEFI 2.7 | ||
| PCI FW 3.0 | ||
| ACPI 6.2 | ||
| Management | ||
| Software | SuperDoctor® 5, AMT, vPro, Watchdog | |
| System Management Software | SuperDoctor 5 | |
| Power Configurations | ACPI Power Management, CPU thermal trip support for processor protection, +12-24V DC Power Input, Control of power-on for recovery from AC power loss, Force Power On by Jumper | |
| PC Health Monitoring | ||
| Voltage | VBAT, System temperature, System level control, Monitors CPU voltages, 3.3V standby, 1.2V (VDIMM), +5V, +3.3V, +12V | |
| LED | Standby alert LED | |
| Temperature | CPU thermal trip support | |
| Other Features | WOL, System level control, RoHS, M.2 NGFF connector, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, ACPI power management, 8-pin 12-24V DC Power Connector | |
| FAN | Low noise fan speed control | |
| Fan speed control | ||
| PWM fan speed control | ||
| System level control | ||
| Thermal control tachometer fan connectors | ||
| 1x 4-pin fan header (up to 1 fan) | ||
| Product SKUs | ||
| Product SKUs | MBD-X12STN-E | |
| Physical Stats | ||
| Form Factor | 3.5" SBC | |
| Dimension | 5.7" x 4" (14.6cm x 10.16cm) | |
| Processor | ||
| CPU | Single Socket FCBGA-1449 supported, CPU TDP supports Up to 28W TDP | |
| 11th Generation Intel® Core™ i5-1145GRE Processor | ||
| Core | Up to 4 cores, 8 threads / 8MB Cache | |
| Expansion Slots | ||
| PCIe | N/A | |
| M.2 | Key: B-Key, M-Key, E-Key | |
| M.2 2242/3042/2280 B-Key (USB3.0/2.0, SATA Gen3/PCIe Gen3 x1) with nano SIM holder M.2 2230 E-Key (CNVi/PCIe 3.0 x1/USB2) M.2 2242/2280 M-Key (PCIe 4.0 x4), NVMe support | ||
| Operating Environment | ||
| Operating Temperature Range | -40°C - 60°C (0°F - 140°F) | |
| Non-Operating Temperature Range | -40°C - 85°C (-40°F - 185°F) | |
| Operating Relative Humidity Range | 8% - 90% (non-condensing) | |
| Non Operating Relative Humidity Range | 10% - 95% (non-condensing) | |
| Warranty: | 3 years, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | Supermicro |
| Type of Support: | FULL |
| Phone No.: | 408-503-8000 |
| URL: | Click here for Manufacturer Website |
