- Supermicro X12SDV-4C-SPT8F Motherboard Micro-ATX Embedded Intel Xeon D-2712T Processor

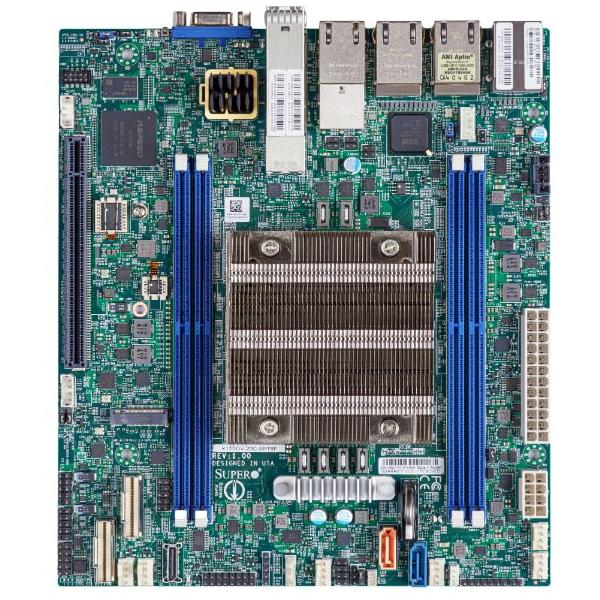

Supermicro X12SDV-4C-SPT8F Motherboard Micro-ATX Embedded Intel Xeon D-2712T Processor
On-Board: SATA3 6Gbps via SoC controller with RAID
Up to 512GB DDR4-2666MHz R/LRDIMM in 4 DIMM slots
Embedded Intel Xeon D-2712T Processor, 1.90GHz 4-Core
Includes four PCIe 4.0 slots, Key: M-Key Form Factor: 2242/2280
Motherboard Micro-ATX, Embedded Intel Xeon D-2712T Processor, 1.90GHz 4-Core/4 thread. Up to 512GB DDR4-2666MHz R/LRDIMM in 4 DIMM slots - On-Board: SATA3 6Gbps via SoC controller (RAID), 4x 1GbE LAN Ports, 2x SFP28 25 Gigabit LAN ports, 2x 10GBase-T ports, IPMI, Includes four PCIe 4.0 slots, Key: M-Key Form Factor: 2242/2280 - (MBD-X12SDV-4C-SPT8F-O)
1. System on Chip
2. Intel® Xeon® Processor D-2712T, CPU TDP 65W
3. Up to 256GB Registered ECC RDIMM, DDR4-2667MHz; Up to 512GB LRDIMM LRDIMM, DDR4-2667MHz, in 4 DIMM slots
4. 1 PCIe 4.0 x16
5. 2 PCIe 4.0 NVMe x8 SlimSAS Internal Port
6. 1 OCuLink Connector (4 SATA/PCIe 3.0 x4) 1 M.2 M-Key 2242/2280 (SATA/PCIe 3.0 x4)
7. Quad 1G RJ45 with Intel® I350-AM4 Dual 25G SFP28 with Intel SoC Dual 10Gbase-T RJ-45 with Intel® Ethernet Controller X550-AT2
8. SoC controller for 2 SATA3 (6 Gbps) ports; RAID 0,1
9. 12V DC or ATX Power Input (Use at least 5Vsb/4A PSU)
Extra Specifications for Supermicro X12SDV-4C-SPT8F Motherboard Micro-ATX Embedded Intel Xeon D-2712T Processor
| System Memory | ||
| Memory Capacity | 4 DIMM slots | |
| Up to 512GB ECC LRDIMM, DDR4-2666MHz; Up to 256GB ECC RDIMM, DDR4-2666MHz; Up to 512GB ECC/non-ECC , DDR4-2666MHz | ||
| Memory Type | 2666/2400 MT/s ECC/non-ECC DDR4 LRDIMM, RDIMM | |
| DIMM Sizes | LRDIMM: 64GB, 128GB | |
| RDIMM: 8GB, 16GB, 32GB, 64GB | ||
| UDIMM: 4GB, 8GB, 16GB, 32GB | ||
| Memory Voltage | 1.2V | |
| Error Detection | Corrects single-bit errors | |
| Detects double-bit errors (using ECC memory) | ||
| On-Board Devices | ||
| Chipset | System on Chip | |
| IPMI | ASPEED AST2600 BMC | |
| Graphics | 1 Aspeed AST2600 BMC port(s) | |
| Network Controllers | Dual LAN with 25G SFP28 LAN via SoC | |
| Dual LAN with Intel® X550 10GBase-T Ethernet Controller | ||
| Quad LAN with Intel® i350 Gigabit Ethernet Controller | ||
| SATA | SoC controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10 | |
| 4 SATA ports via OCuLink (or PCIE3.0 x4 for NVMe) | ||
| Input / Output | ||
| SATA | 2 SATA3 (6Gbps) port(s) | |
| LAN | 4 RJ45 Gigabit Ethernet LAN ports | |
| 2 RJ45 10GBase-T ports | ||
| 2 SFP28 25 Gigabit Ethernet LAN ports | ||
| Video Output | 1 VGA D-Sub Connector port(s) | |
| DOM | 1 SATA DOM (Disk on Module) power connector support | |
| USB | 2 USB 3 port(s) (2 rear type A) | |
| 4 USB 2 port(s) (4 via header) | ||
| Serial Port | 1 COM Port(s) (1 header) | |
| TPM | 1 TPM Header & Chip both | |
| System BIOS | ||
| BIOS Type | AMI 32MB SPI Flash EEPROM | |
| BIOS Features | Plug and Play (PnP) | |
| UEFI 2.7 | ||
| ACPI 6.3 | ||
| PCI FW 3.0 | ||
| SMBIOS 3.3 | ||
| Management | ||
| Software | Watchdog, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support, SuperDoctor® 5, SSM, NMI, SUM, SPM | |
| Power Configurations | ATX Power connector, +12V DC Power Input, CPU thermal trip support for processor protection, Power-on mode for AC power recovery | |
| PC Health Monitoring | ||
| Voltage | 3.3V standby, +5V standby, +5V, +3.3V, +12V, Memory Voltages, Monitors CPU Core Voltages | |
| LED | UID/Remote UID | |
| BMC/IPMI Heartbeat LED | ||
| Overheat/Fan Fail/PWR Fail LED | ||
| Power Indicator LED | ||
| LAN temperature | ||
| Temperature | CPU thermal trip support | |
| peripheral temperature | ||
| System temperature | ||
| Memory temperature | ||
| NVMe temperature | ||
| Platform Environment Control Interface (PECI)/TSI | ||
| Other Features | UID, RoHS, Node Manager Support, Chassis intrusion header, ATX Power connector, ACPI power management, 8-pin 12v DC power connector, 12V DC or ATX Power Source | |
| FAN | 6x 4-pin fan headers (up to 6 fans) | |
| System level control, PWM fan speed control, Fan speed control, 6 fans with tachometer status monitoring, Overheat LED indication, Dual Cooling Zones | ||
| Product SKUs | ||
| Product SKUs | MBD-X12SDV-4C-SPT8F | |
| Physical Stats | ||
| Form Factor | Micro-ATX | |
| Dimension | 7.5" x 8.5" (19.05cm x 21.59cm) | |
| Processor | ||
| CPU | Intel® Xeon® Processor D-2712T | |
| Single Socket FCBGA-2579 supported, CPU TDP supports Up to 65W TDP | ||
| Core | Up to 4 cores / 15MB Cache | |
| Expansion Slots | ||
| PCIe | 1 PCIe 4.0 x16, | |
| 1 PCIe 3.0 x4 (or 4x SATA), via Oculink, | ||
| 2 PCIe 4.0 x8, via SlimSAS | ||
| M.2 | Key: M-Key | |
| Form Factor: 2242/2280 | ||
| M.2 Interface: 1 SATA/PCIe 3.0 x4 | ||
| Operating Environment | ||
| Operating Temperature Range | 0°C - 60°C (32°F - 140°F) | |
| Non-Operating Temperature Range | -40°C - 85°C (-40°F - 185°F) | |
| Operating Relative Humidity Range | 10% - 85% (non-condensing) | |
| Non Operating Relative Humidity Range | 10% - 95% (non-condensing) | |
| Warranty: | 3 years, 120 days advance replacement (doa) |
