- Supermicro A3SPI-4C-HLN4F Motherboard Mini-ITX Embedded Intel Atom C5315 Processor

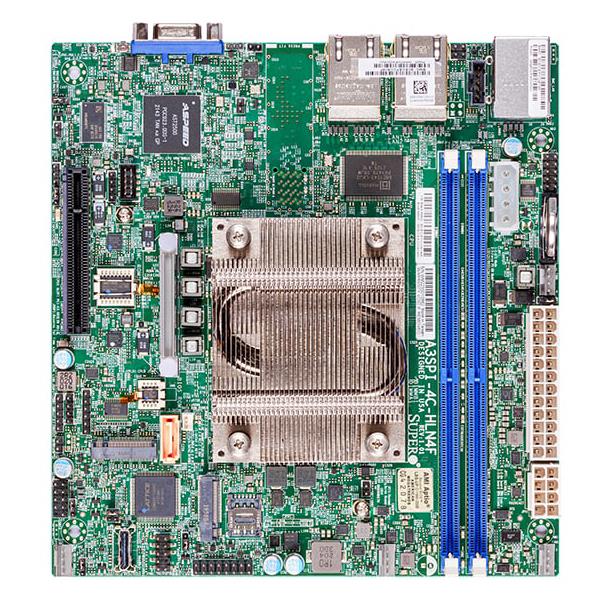

Supermicro A3SPI-4C-HLN4F Motherboard Mini-ITX Embedded Intel Atom C5315 Processor
Embedded Intel Atom C5315 Processor 4-Core
Up to 128GB DDR4-2400MHz RDIMM in 2 DIMM slots
On-Board: SATA3 6Gbps via SoC controller, 4x 1GbE LAN Ports, TPM
Includes one PCIe 3.0 slot, Key: M-Key, B-Key Form Factor: 2280, 3052
Motherboard Mini-ITX, Embedded Intel Atom C5315 Processor, 2.40GHz 4-Core/4 thread/9MB Cache. Up to 128GB DDR4-2400MHz RDIMM in 2 DIMM slots - On-Board: SATA3 6Gbps via SoC controller, 4x 1GbE LAN Ports, TPM, Includes one PCIe 3.0 slots, Key: M-Key, B-Key Form Factor: 2280, 3052 - (MBD-A3SPI-4C-HLN4F-O)
1. Supports 12V DC power input
2. System on Chip
3. Intel Atom Processor C5315, Single Socket FCBGA-2106 supported, CPU TDP support 38W
4. Intel Quick Assist Technology
5. Up to 128GB ECC RDIMM DDR4-2400MHz, in 2 DIMM slots
6. Expansion slots: 1 PCIe 3.0 x2 (in x8 slot)
7. 4 GbE LAN ports
8. Up to 5 SATA3 ports from SoC (1 via SATA port, 4 via Oculink)
9. I/O: 1 VGA, 1 COM, TPM 2.0 onboard and header both
10. 2 USB 3.0 (Type-A on rear) 2 USB 2.0 (via headers)
11. M.2 Interface: 1x M.2 B-Key 3052 w/PCIe 3.0 & SATA3 & USB3.0 1x M.2 M-Key 2280 w/PCIe3.0
12. Linux support only (RHEL 8.3 and kernel version 4.18.0 or higher)
Extra Specifications for Supermicro A3SPI-4C-HLN4F Motherboard Mini-ITX Embedded Intel Atom C5315 Processor
| System Memory | ||
| Memory Capacity | 2 DIMM slots | |
| Up to 128GB ECC RDIMM, DDR4-2400MHz | ||
| Memory Type | 2400 MT/s ECC DDR4 RDIMM | |
| DIMM Sizes | 8GB, 16GB, 32GB, 64GB | |
| Memory Voltage | 1.2V | |
| Error Detection | Corrects single-bit errors | |
| Detects double-bit errors (using ECC memory) | ||
| On-Board Devices | ||
| Chipset | System on Chip | |
| IPMI | ASPEED AST2500 BMC | |
| Graphics | 1 Aspeed AST2500 BMC port(s) | |
| Network Controllers | Quad LAN with Intel® C5000 SoC, 1GbE | |
| SATA | SoC controller for 1 SATA3 (6 Gbps) ports | |
| Input / Output | ||
| LAN | 4 RJ45 Gigabit Ethernet LAN ports | |
| Video Output | 1 VGA D-Sub Connector port(s) | |
| DOM | 1 Super DOM (Disk on Module) ports | |
| USB | 2 USB 3.0 port(s) (2 rear) | |
| 2 USB 2.0 port(s) (2 via header) | ||
| Serial Port | 1 COM Port(s) (1 header) | |
| TPM | 1 TPM Header & Chip both | |
| Others | 1 8-bit GPIO header | |
| 1 Oculink | ||
| System BIOS | ||
| BIOS Type | 32MB AMI UEFI | |
| BIOS Features | SMBIOS 3.0 or later | |
| UEFI 2.7 | ||
| ACPI 6.0 or later | ||
| Management | ||
| Software | Watchdog, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support, SuperDoctor® 5 | |
| System Management Software | IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support, SuperDoctor® 5 | |
| Power Configurations | ATX Power connector, +12V DC Power Input, CPU thermal trip support for processor protection, Power-on mode for AC power recovery | |
| PC Health Monitoring | ||
| Voltage | VBAT, System level control, Supports system management utility, Monitors CPU voltages, Chassis intrusion header, 4 -fan status, 3.3V standby, 1.2V (VDIMM), 1.05 (PCH), +5V standby, +5V, +3.3V, +12V | |
| LED | UID/Remote UID | |
| Temperature | CPU thermal trip support | |
| Other Features | UID, RoHS, M.2 NGFF connector, Chassis intrusion header, ATX Power connector, ACPI power management, 8-pin 12v DC power connector, 12V DC or ATX Power Source, Intel® QuickAssist Technology | |
| FAN | 4x 4-pin fan headers (up to 4 fans) | |
| Thermal control tachometer fan connectors, Fan speed control, Dual Cooling Zone, 4 fans with tachometer monitoring, Status monitoring for speed control, Pulse Width Modulated (PWM) fan connectors, Support 3-pin fans (w/o speed control) | ||
| Product SKUs | ||
| Product SKUs | MBD-A3SPI-4C-HLN4F | |
| Physical Stats | ||
| Form Factor | Mini-ITX | |
| Dimension | 6.7" x 7.1" (17.02cm x 18.3cm) | |
| Processor | ||
| CPU | Intel® Atom® Processor C5315 | |
| Single Socket FCBGA-2106 supported, CPU TDP supports Up to 38W TDP | ||
| Core | Up to 4 cores / 9MB Cache | |
| Expansion Slots | ||
| PCIe | 1 PCIe 3.0 x2 (in x8 slot) | |
| M.2 | Key: M-Key, B-Key | |
| M.2 Interface: 1 PCIe 3.0 x4; 1 SATA/PCIe 3.0 x2/USB 3.0 | ||
| Form Factor: 2280, 3052 | ||
| Operating Environment | ||
| Operating Temperature Range | 0°C - 60°C (32°F - 140°F) | |
| Non-Operating Temperature Range | -40°C - 85°C (-40°F - 185°F) | |
| Operating Relative Humidity Range | 10% - 85% (non-condensing) | |
| Non Operating Relative Humidity Range | 10% - 95% (non-condensing) | |
