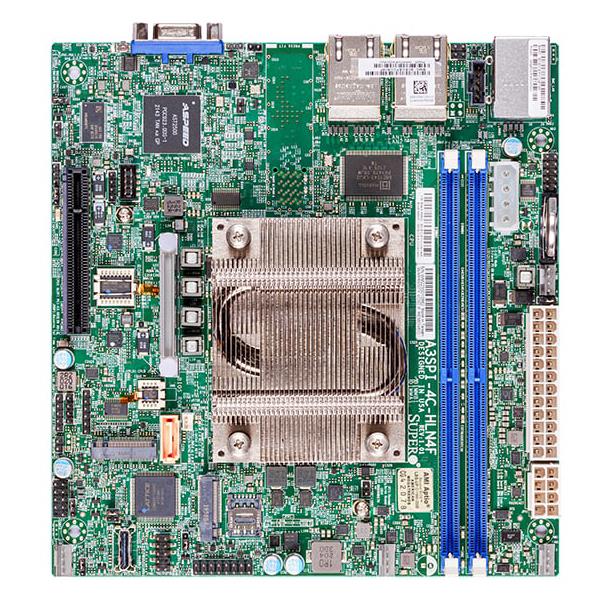

Supermicro A3SPI-8C-HLN4F Motherboard Mini-ITX Embedded Intel Atom C5325 Processor
Intel Atom Processor C5325 with 8 Core
Up to 128GB ECC RDIMM, DDR4-2933MHz
Quad LAN with 1GbE LAN via Marvell PHY 88E1543
Includes 1 SATADOM, TPM, Oculink, Key: M-Key, B-Key
Motherboard Mini-ITX Embedded Intel Atom C5325 Processor with 8 cores, 8 threads / 9MB Cache, Supports Up to 128GB DDR4-2933MHz RDIMM in 2 DIMM slots - On-Board : SATA3 6Gbps via SoC controller, 4x 1GbE LAN Ports, TPM 2.0, Includes one PCIe 3.0 slots, Key: M-Key, B-Key Form Factor: 2280, 3052 - (MBD-A3SPI-8C-HLN4F-O)
Key Features
Intel Atom Processor C5325, Single Socket FCBGA-2106 supported, CPU TDP support 41W
System on Chip
Intel Quick Assist Technology
Up to 128GB ECC RDIMM DDR4-2933MHz, in 2 DIMM slots
Expansion slots: 1 PCI-E 3.0 x2 (in x8 slot), 4 GbE LAN ports
Supports 12V DC power input
Up to 5 SATA3 ports from SoC (1 via SATA port, 4 via Oculink)
I/O: 1 VGA, 1 COM, TPM 2.0 onboard and header both
2 USB 3.0 (Type-A on rear), 2 USB 2.0 (via headers)
M.2 Interface: 1x M.2 B-Key 3052 w/PCIe 3.0 & SATA3 & USB3.0, 1x M.2 M-Key 2280 w/PCIe3.0
Extra Specifications for Supermicro A3SPI-8C-HLN4F Motherboard Mini-ITX Embedded Intel Atom C5325 Processor
| Main Specifications | ||
| Device Type | Motherboard | |
| Form Factor | Mini-ITX | |
| Dimensions (WxDxH) | 6.7" x 7.1" (17.02cm x 18.3cm) | |
| Processor | ||
| Compatible Processors | Intel Atom Processor C5325 | |
| Compatible Socket | Single Socket FCBGA-2106 supported, CPU TDP supports Up to 41W TDP | |
| Cache/Core | Up to 8 cores / 9MB Cache | |
| System Memory | ||
| Memory Capacity | 2 DIMM slots, Up to 128GB ECC RDIMM, DDR4-2933MHz | |
| Memory Type | 2933/2666/2400MHz ECC DDR4 RDIMM | |
| DIMM Sizes | 8GB, 16GB, 32GB, 64GB | |
| Memory Voltage | 1.2V | |
| Error Detection | Corrects single-bit errors, Detects double-bit errors (using ECC memory) | |
| On-Board Devices | ||
| Chipset | System on Chip | |
| SATA/SAS | SoC controller for 1 SATA3 (6 Gbps) ports | |
| IPMI | ASPEED AST2500 BMC | |
| Graphics | ASPEED AST2500 BMC | |
| Network Controllers | Quad LAN with 1GbE LAN via Marvell PHY 88E1543 | |
| TPM | 1 TPM Header & Chip both | |
| Others | 1 8-bit GPIO header, 1 Oculink | |
| Input / Output | ||
| LAN | 4 RJ45 Gigabit Ethernet LAN ports | |
| USB(s) | 2 USB 2.0 port(s) (2 via header), 2 USB 3.0 port(s) (2 rear) | |
| Video Output | 1 VGA D-Sub Connector port(s) | |
| Serial Ports | 1 COM Port(s) (1 header) | |
| DOM | 1 SuperDOM (Disk on Module) ports | |
| Expansion / Connectivity | ||
| Expansion Slots Total (Free) | 1 PCI-E 3.0 x2 (in x8 slot) | |
| M.2 | Key: M-Key, B-Key | |
| M.2 Interface: 1 PCI-E 3.0 x4; 1 SATA/PCI-E 3.0 x2/USB 3.0 | ||
| Form Factor: 2280, 3052 | ||
| System BIOS | ||
| BIOS Type | AMI 32MB AMI UEFI | |
| BIOS Features | UEFI 2.7, SMBIOS 3.0 or later, ACPI 6.0 or later | |
| Management | ||
| Software | Watchdog, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support, SuperDoctor 5 | |
| System Management Software | IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support, SuperDoctor 5 | |
| Power Configurations | ATX Power connector, +12V DC Power Input, CPU thermal trip support for processor protection, Power-on mode for AC power recovery | |
| FAN | 4x 4-pin fan headers (up to 4 fans), Thermal control tachometer fan connectors, Fan speed control, Dual Cooling Zone, 4 fans with tachometer monitoring, Status monitoring for speed control, Pulse Width Modulated (PWM) fan connectors, Support 3-pin fans (w/o speed control) | |
| PC Health Monitoring | ||
| Voltage | VBAT, System level control, Supports system management utility, Monitors CPU voltages, 4 -fan status, 3.3V standby, 1.2V (VDIMM), 1.05 (PCH), +5V standby, +5V, +3.3V, +12V | |
| LED | UID/Remote UID | |
| Temperature | CPU thermal trip support | |
| Other Features | UID, RoHS, M.2 NGFF connector, Chassis intrusion header, ATX Power connector, ACPI power management, 8-pin 12v DC power connector, 12V DC or ATX Power Source, Intel QuickAssist Technology, 4-pin 12v DC power connector | |
| Environmental | ||
| Operating Environment | Non-Operating Temperature Range: -40°C - 85°C (-40°F - 185°F) | |
| Operating Relative Humidity Range: 10% - 85% (non-condensing) | ||
| Non-Operating Relative Humidity Range: 10% - 95% (non-condensing) | ||
| Operating Temperature Range: 0°C - 60°C (32°F - 140°F) | ||
| Parts List - (Items Included) | ||
| I/O Shield(s) | 1x MCP-260-00173-0N | |
| Cable(s) | 1x CBL-SAST-0933, 1x CBL-0044L | |
| Warranty: | 3 years labor, 1 year parts, 120 days advanced replacement (doa) |
| Provider: | Supermicro |
| Phone No.: | 305-640-0300 |
| E-mail: | returnservices@wiredzone.com |
| URL: | Click here for Manufacturer Website |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
