- Supermicro A2SAN-E Motherboard 3.5" SBC Embedded Intel Atom E3940 Processor

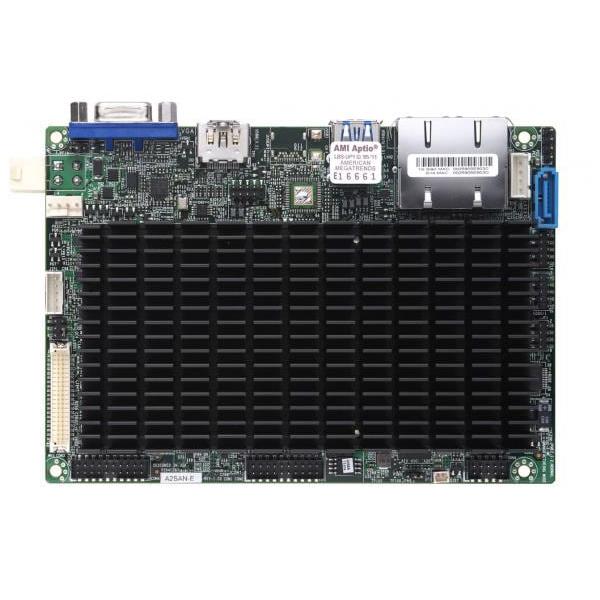

Supermicro A2SAN-E Motherboard 3.5" SBC Embedded Intel Atom E3940 Processor
Dual GbE LAN with Intel Ethernet Controller I210
Includes 1 Full-size Mini-PCI-E, 1 M.2 2280 B-Key
Intel Atom Processor E3940 Up to 4 cores, 4 threads
Supports up to 8GB SODIMM, DDR3-1866MHz memory
Motherboard 3.5" SBC Embedded Intel Atom E3940 Processor with 4 Cores, 4 threads, FCBGA-1296, Supports Up to 8GB DDR3-1866MHz SODIMM in 1 DIMM slot - On-Board : SoC controller for 1 SATA3 (6Gbps) ports, LAN ports: Dual 1GbE LAN ports - One VGA port, 1x TPM2.0 Chip, Includes one Mini-PCI-E slots, M.2 Key: B-Key Form Factor: 2280 - (MBD-A2SAN-E-O)
The A2SAN-E motherboard provides powerful graphics and increased media processing performance with multi-frame technology. Paired with the Intel® Atom SoC (System-on-a-Chip) processor, the A2SAN-E delivers more computing power for faster memory speeds and bandwidth while maintaining energy efficiency. Utilizing Intel® TCC (Time Coordinated Computing) Technology, the A2SAN-E resolves latency issues in applications and improves determinism across connected devices. The motherboard features advanced technologies such as Intel Virtualization to improve security and reliability of systems, and Thermal Monitoring to reduce power consumption. It also comes with more I/O ports and high-speed connectivity.
Key Features
Up to 8GB 1866MHz DDR3L Non-ECC SO-DIMM in 1 socket
Intel Atom processor E3940 (9.5W, 4C)
Dual LAN with Intel Ethernet Controller I210-IT
1 M.2 B-Key 2280, 1 Full size Mini-PCI-E, 1 SATA 3.0
Intel Goldmont microarchitecture 14nm System-on-Chip
2 USB 3.0 ports, 4 USB 2.0 ports, 4 COM ports, 1 SATA 3.0, 8-bit GPIO, SMBus
Supports 12V DC power input
1 HDMI, 1 VGA, 1 48-bit LVDS, Intel HD Graphic 3 independent displays
Supports on-board TPM 2.0
Wide temperature support from -30°C to 75°C
Extra Specifications for Supermicro A2SAN-E Motherboard 3.5" SBC Embedded Intel Atom E3940 Processor
| Main Specifications | ||
| Device Type | Motherboard | |
| Form Factor | 3.5" SBC | |
| Dimensions (WxDxH) | 5.7" x 4" (14.6cm x 10.16cm) | |
| Processor Socket | Single Socket FCBGA-1296 supported, CPU TDP supports Up to 9.5W TDP | |
| Processor | ||
| Embedded Processor | Intel Atom Processor E3940 | |
| Cache/Cores | 4 Core/4 Thread | |
| System Memory | ||
| Memory Capacity | 1 DIMM slots, Up to 8GB SODIMM, DDR3-1866MHz | |
| Memory Type | 1866MHzDDR3 SODIMM DDR3L up to 8GB | |
| DIMM Sizes | 2GB, 4GB, 8GB | |
| Memory Voltage | 1.35V | |
| On-Board Devices | ||
| Chipset | System on Chip | |
| SATA/SAS | SoC controller for 1 SATA3 (6 Gbps) ports | |
| Audio | ALC 888S HD Audio | |
| Graphics | Intel HD Graphics | |
| Network Controllers | Dual LAN with Intel Ethernet Controller I210IT | |
| Input / Output | ||
| SATA | 1 SATA3 (6Gbps) port(s) | |
| LAN | 2 RJ45 Gigabit Ethernet LAN ports | |
| USB(s) | 4 USB 2.0 port(s) (4 via header), 2 USB 3.0 port(s) (2 rear) | |
| Video Output | 1 VGA port(s), 1 HDMI port(s), 1 LVDS port(s) | |
| Serial Ports | 4 COM Port(s) (4 header) | |
| TPM | 1 TPM Chip | |
| Others | 1 8-bit GPIO header, 1 SMBus header, 1 System Fan, 1 Panel backlight power header, 1 HD Audio header Mic-in/Headphone-out(Audio only support at 0~60C) | |
| Expansion / Connectivity | ||
| Expansion Slots Total (Free) | 1 Full size Mini-PCI-E (USB2.0 x 1,PCI-E Gen2 x 1) | |
| 1 M.2 2280 B-Key (PCI-E Gen2 x 1,SATA x 1) | ||
| M.2 | Form Factor: 2280 | |
| M.2 Interface: SATA; PCI-E 2.0 x1; USB 2.0 | ||
| Key: B-Key | ||
| System BIOS | ||
| BIOS Type | AMI UEFI | |
| BIOS Features | ACPI 6.0, SMBIOS 3.0, UEFI 2.5, PCI FW 3.0 | |
| Management | ||
| Software | SuperDoctor 5, Watchdog | |
| System Management Software | SuperDoctor 5 | |
| Power Configurations | ACPI Power Management, +12V DC Power Input, Control of power-on for recovery from AC power loss, Force Power On by Jumper | |
| FAN | 1x 4-pin fan header (up to 1 fan), Thermal control tachometer fan connectors, System level control, PWM fan speed control, Low noise fan speed control, Fan speed control | |
| PC Health Monitoring | ||
| Voltage | VBAT, System temperature, System level control, 3.3V standby, +5V, +3.3V, +12V, +1.35V, VCGI | |
| LED | Standby alert LED | |
| Temperature | CPU thermal trip support | |
| Other Features | WOL, System level control, RoHS, M.2 NGFF connector, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, ACPI power management, 4-pin 12v DC power connector | |
| Environmental | ||
| Operating Environment | Operating Relative Humidity Range: 8% - 90% (non-condensing) | |
| Non-Operating Temperature Range: -40°C - 85°C (-40°F - 185°F) | ||
| Non-Operating Relative Humidity Range: 10% - 95% (non-condensing) | ||
| Operating Temperature Range: -30°C - 75°C (-22°F - 167°F) | ||
| Parts List - (Items Included) | ||
| Heatsink / Retention | 1x SNK-C0107L | |
| Cable(s) | 1x CBL-OTHR-0986, 1x CBL-CUSB-0984, 1x CBL-SAST-0881, 1x CBL-PWEX-0982, 1x CBL-CUSB-0983 | |
| Warranty: | 3 years labor, 1 year parts, 120 days advanced replacement (doa) |
