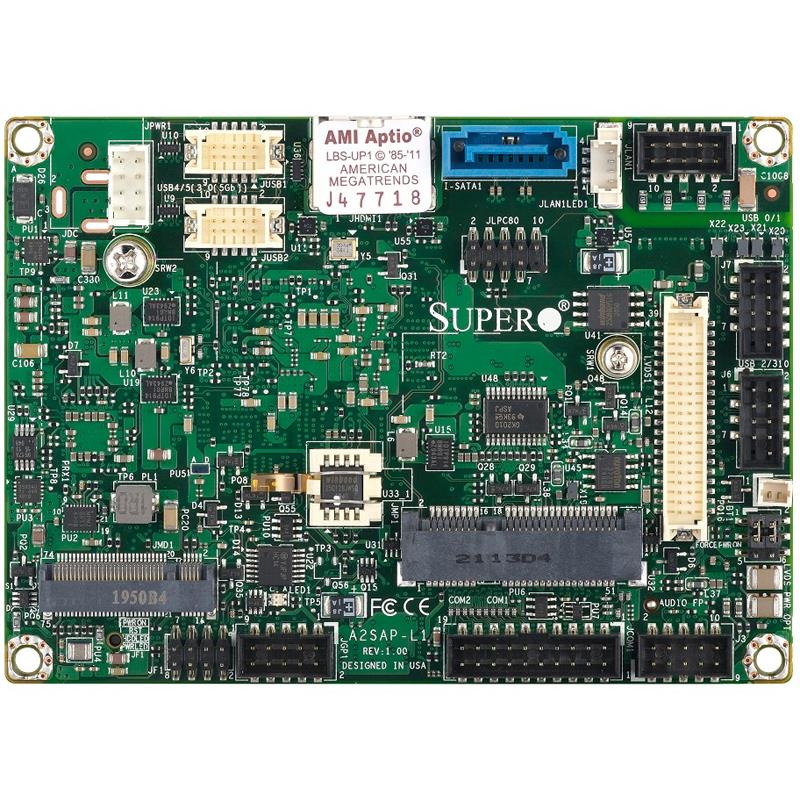

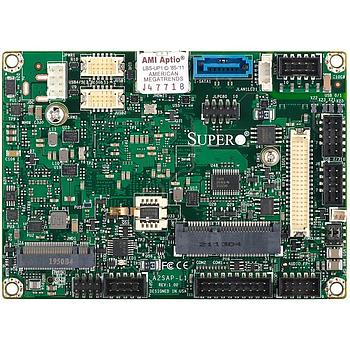

Motherboard Pico-ITX Embedded Intel Atom E3940 Processor with 4 Cores, 4 threads / 2MB Cache, FCBGA-1296, Supports Up to 8GB DDR3-1866MHz SODIMM in 1 DIMM slot - On-Board : SoC controller for 1 SATA3 (6Gbps) ports, LAN ports: One 1GbE LAN ports - I/O: USB 2.0 port, USB 3.2 port, 1 HDMI port, COM Port, HD Audio, Intel HD Graphics, Includes One Half size Mini-PCI-E, 1 M.2 B-Key 2242/3042 - (MBD-A2SAP-L1-O)
1. Up to 8GB 1866MHz DDR3L Non-ECC SO-DIMM in 1 socket
2. Intel® Atom processor E3940 (9.5W, 4C)
3. 1 M.2 B-Key 2242/3042, 1 Half size Mini-PCIe, 1 SATA 3.0
4. Intel® Goldmont microarchitecture 14nm System-on-Chip
5. 1 HDMI, 1 48-bit LVDS, Intel® HD Graphic 2 independent displays
6. All box header type for 2 COM, 2 USB3.0 ,4 USB2.0, 1GbE, LAN LED, Audio, GPIO, SMbus, LVDS, DC IN power
7. Supports 12V DC power input
8. Wide temperature suppot from -30°C to 75°C
| System Memory | ||
| Memory Capacity | 1 DIMM slots | |
| Up to 8GB Unbuffered non-ECC SODIMM, DDR3-1866MHz | ||
| Memory Type | 1866 MT/s non-ECC DDR3 SODIMM Unbuffered DDR3L up to 8GB | |
| DIMM Sizes | 2GB, 4GB, 8GB | |
| Memory Voltage | 1.35V | |
| On-Board Devices | ||
| Chipset | System on Chip | |
| Audio | ALC 888S HD Audio | |
| Graphics | 1 Intel® HD Graphics port(s) | |
| Network Controllers | Single LAN with Intel® Ethernet Controller I210IT, With Box Header | |
| SATA | SoC controller for 1 SATA3 (6 Gbps) ports | |
| Input / Output | ||
| SATA | 1 SATA3 (6Gbps) port(s) | |
| LAN | 1 1GbE LAN port (via box header) | |
| Video Output | 1 HDMI port(s), 1 LVDS port(s) | |
| USB | 4 USB 2.0 port(s) (4 via header) | |
| 2 USB 3.2 Gen1 port(s) (2 via header) | ||
| Serial Port | 1 COM Port(s) (1 header) | |
| Others | 1 8-bit GPIO header | |
| 1 SMbus and 5V/A SATA Power bo header | ||
| 1 HD Audio header (Mic-in/Headphone-out) (Note:Audio only support 0~60C) | ||
| 1 24-Pin 2V DC-IN power input bo header (20mm pitch) | ||
| System BIOS | ||
| BIOS Type | AMI UEFI | |
| BIOS Features | ACPI 6.0 | |
| SMBIOS 3.0 | ||
| PCI FW 3.0 | ||
| UEFI 2.5 | ||
| Management | ||
| Software | SuperDoctor® 5, Watchdog | |
| System Management Software | SuperDoctor 5 | |
| Power Configurations | ACPI Power Management, +12V DC Power Input, Control of power-on for recovery from AC power loss, Force Power On by Jumper | |
| PC Health Monitoring | ||
| Voltage | VBAT, System temperature, System level control, 3.3V standby, +3.3V, +12V, +1.35V, Memory Voltages, VCGI | |
| LED | Standby alert LED | |
| Temperature | CPU thermal trip support | |
| Other Features | WOL, System level control, RoHS, M.2 NGFF connector, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, ACPI power management | |
| Product SKUs | ||
| Product SKUs | MBD-A2SAP-L1 | |
| Physical Stats | ||
| Form Factor | Pico-ITX | |
| Dimension | 4" x 2.83" (10.16cm x 7.19cm) | |
| Processor | ||
| CPU | Intel® Atom® Processor E3940 | |
| Single Socket FCBGA-1296 supported, CPU TDP supports Up to 9.5W TDP | ||
| Core | Up to 4 cores, 4 threads / 2MB Cache | |
| Expansion Slots | ||
| PCIe | 1 Half size Mini-PCIe (USB2.0 x 1,PCIe Gen2 x 1) | |
| M.2 | M.2 Interface: USB 2.0; SATA; PCIe 2.0 x1 | |
| Key: B-Key | ||
| Form Factor: 3042, 2242 | ||
| Operating Environment | ||
| Operating Temperature Range | -30°C - 75°C (-22°F - 167°F) | |
| Non-Operating Temperature Range | -40°C - 85°C (-40°F - 185°F) | |
| Operating Relative Humidity Range | 8% - 90% (non-condensing) | |
| Non Operating Relative Humidity Range | 10% - 95% (non-condensing) | |
| Warranty: | 3 years, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | Supermicro |
| Type of Support: | FULL |
| Phone No.: | 408-503-8000 |
| URL: | Click here for Manufacturer Website |
