| System Memory |
| Memory Capacity | 4 DIMM slots |
| Up to 128GB Unbuffered non-ECC UDIMM, DDR4-3200MHz |
| Memory Type | 128GB Unbufferred Non |
| DIMM Sizes | 4GB, 8GB, 16GB, 32GB |
| Memory Voltage | 1.2V |
| On-Board Devices |
| Chipset | Intel® Z590 |
| Audio | ALC 1220 7.1 HD Audio |
| Network Controllers | Single LAN with Intel® single Ethernet PHY i219V, 1Gb |
| Single LAN with Marvell AQC113C, 10Gb |
| SATA | Intel® Z590 Express controller for 4 SATA 3 (6 Gbps) ports; RAID 0,1,5,10 |
| 4 SATA3 ports, 2 MiniSAS HD ports |
| Input / Output |
| LAN | 1 RJ45 Gigabit Ethernet LAN ports |
| 1 RJ45 10 Gigabit Ethernet LAN ports |
| Video Output | 1 DP (DisplayPort) port(s), 1 HDMI port(s) |
| SATA | 4 SATA3 (6Gbps) port(s) |
| USB | 2 USB 3.2 Gen1 port(s) (2 via header) |
| 2 USB 3.2 Gen2 port(s) (2 rear type A) |
| 6 USB 2.0 port(s) (2 via header; 4 rear) |
| 3 USB 3.2 Gen2x2 port(s) (1 via header; 2 rear type C) |
| Serial Port | 1 COM Port(s) (1 header) |
| TPM | 1 TPM Header |
| System BIOS |
| BIOS Type | 256MB SPI Flash with AMI BIOS |
| BIOS Features | ACPI 6.0 |
| Plug and Play (PnP) |
| SMBIOS 3.0 or later |
| BIOS rescue hot keys |
| Riser card auto-detection support |
| PC Health Monitoring |
| Voltage | VBAT, System temperature, PCH temperature, CPU temperature, CPU, 3.3V standby, 1.05 (PCH), +5V standby, +5V, +3.3V, +12V, VRM temperature, CPU thermal trip support, +1.8V PCH, +1.0V PCH, 5 (4-pin) |
| FAN | 5 fans with tachometer status monitoring |
| Fan speed control |
| Overheat LED indication |
| 5x 4-pin fan headers (up to 5 fans) |
| Other Features | WOL, RoHS, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion header, ATX Power connector, ACPI power management, 8-pin 12v DC power connector, Voltage and Frequency Overclocking |
| Product SKUs |

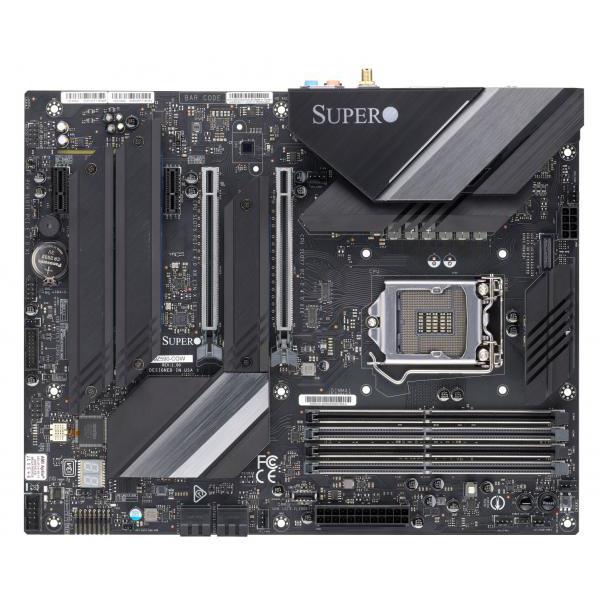

| Product SKUs | MBD-C9Z590-CGW |
| Physical Stats |
| Form Factor | ATX |
| Dimension | 12" x 9.6" (30.48cm x 24.38cm) |
| Processor |
| CPU | Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 125W TDP |
| 11th Generation Intel® Core™ i3/i5/i7/i9, Pentium® Gold and Celeron® Processors |
| Core | Up to 8 cores, 16 threads / 16MB Cache |
| Expansion Slots |
| PCIe | 2 PCIe 4.0 x16 slots (16/NA or 8/8)2 PCIe 3.0 x1, |
| (Slot#4 and Slot#6 can be configured as 16/NA, 8/8) |
| M.2 | Key: M-Key |
| Form Factor: 2260/2280/22110 |
| M.2 Interface: 2 PCIe 3.0 x4; 1 PCIe 4.0 x4 |
| Management |
| Software | SuperDoctor® 5 |
| System Management Software | SuperDoctor 5 |
| Power Configurations | ACPI Power Management |
| Operating Environment |
| Operating Temperature Range | 0°C - 50°C (32°F - 122°F) |
