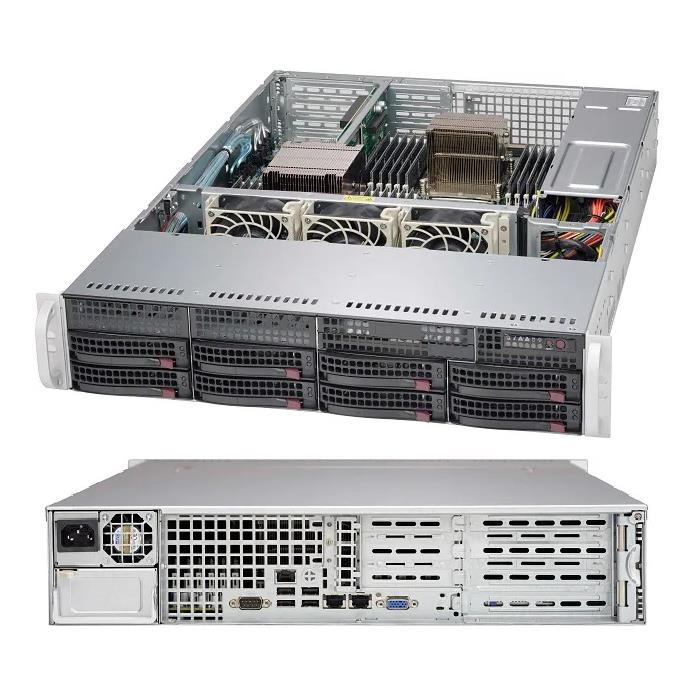

Supermicro CSE-825TQ-600WB 2U Rackmount 600W Power Supply
• 8-port 2U TQ (W/ AMI 9072) backplane
• 2U chassis supports MBs Proprietary WIO
• Dual and Single Intel and AMD processors
• 600W platinum efficiency multiple output PS
Rackmount 2U w/ 600W 80 Plus Platinum Level Certified Power Supply, supports Dual, Single Intel / AMD processors - Includes 8x 3.5in Hot-Swap SAS/SATA Drive Bays, SAS Backplane, DVD-ROM is optional - SC825TQ-600WB - (Black)
• Adjustable Air Shroud
• 2x Fixed 3.5 Drive Bays
• Power Switch & 6 LED Indicators
• 8x 3.5 Hot-swap SAS / SATA Drive Bays
• 600W Digital Platinum Level (94%) Single Power Supply
• 4x Full-height, Full-length I/O, 3x Low-Profile Expansion Slots
• Full SES2 support is available with SAS motherboards and other compatible components
Extra Specifications for Supermicro CSE-825TQ-600WB 2U Rackmount 600W Power Supply
| Main Specifications | ||
| Device Type | SuperChassis | |
| Dimensions (WxDxH) | Height 3.5" (89 mm) x Width 17.2" (437 mm) x Depth 25.5" (647 mm) | |
| Color | Black | |
| Form Factor | 2U chassis for motherboard support size of , 12" x 10", 12" x 13", 13.68" x 13" | |
| Weight | 52 lb (23.59 kg) | |
| Processor Support | ||
| Processor Support | Supports dual, single Intel / AMD processors | |
| Expansion / Connectivity | ||
| Expansion Slots Total (Free) | 3 low-profile expansion slot(s) | |
| 4 full-height & full-length expansion slot(s) | ||
| Drive Bays | ||
| Hot-swap | 8x 3.5" hot-swap SAS/SATA drive bay w/ full SES-II support on SAS motherboards - SAS or enterprise SATA HDD only recommended | |
| Front Panel | ||
| Buttons | Power On/Off button, System Reset button | |
| LEDs | 2 Network Activity LEDs, Fan Fail/System Over Heat LED, HDD activity LED, Power Status LED, Unit Identification (UID) LED | |
| Networking | ||
| Ports | 2x USB 2.0 Ports | |
| System Cooling | ||
| Fans | FAN-0126L4 | |
| 3x 8cm (7000 RPM) hot-swap PWM cooling fan | ||
| Miscellaneous | ||
| Applications | Chassis Intrusion switch | |
| Peripheral Drives | ||
| CD-ROM / DVD-ROM | 1x slim DVD-ROM drive bay | |
| SAS / SATA Backplane | ||
| SAS / SATA Backplane | 1x 2U SAS backplane w/ Enclosure Management | |
| Operating Environment (System) | ||
| Operating Temperature Range | Operating Temperature Range 5C ~ 35C (41F ~ 95F) | |
| Non-Operating Temperature Range -40C ~ 60C (-40F ~ 140F) | ||
| Operating Relative Humidity Range 8% ~ 90% (non-condensing) | ||
| Non-Operating Relative Humidity Range 5% - 95% (non-condensing) | ||
| Power Supply | ||
| Certification | 80PLUS Platinum Certified | |
| Power Supply | PWS-605P-1H | |
| 600W AC power supply w/ PFC (24-pin) | ||
| Regulatory Safety / EMC | USA - UL listed, Canada - CUL listed, Germany - TUV Certified, EN 60950/IEC 60950-Compliant, CB Report, CCC Certification | |
| Parts List - (Items Included) | ||
| Air Shroud | MCP-310-29001-0N | |
| Backplane | BPN-SAS-825TQ-O-P | |
| Drive Trays | MCP-220-00023-01, MCP-220-82502-0B, MCP-220-00075-0B | |
| Mounting Rails | MCP-290-00053-0N | |
| Parts List | ||
| Cables | CBL-0180L-01, CBL-0157L, CBL-0071L | |
| Standard Parts List | ||
| Chassis | CSE-825TQ-600WB | |
| Front Panel | FP836-D | |
| Accessory | MCP-290-00007-01 | |
| Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
