| Main Specifications |

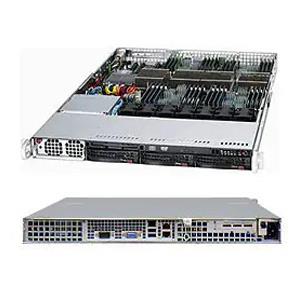

| Device Type | SuperChassis 818A-1400B |
| Form Factor | 1U Chassis |
| Supported Motherboards | 16.48" x 14.3" (Quad-processor motherboards), 16.48" x 16.8" (for X8 motherboards) |
| Dimensions (WxDxH) | Height 1.7" (43mm) x Width 17.2" (437mm) x Depth 27.75" (705mm) |
| Weight | 38 lbs (17.2 kg) |
| Enclosure Color | Black |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | 1x full-height, Full-length expansion slot (Riser card required) |
| Expansion Bays Total (Free) | 3x 3.5" hot-swap U320/160 SAS / SATA drive bays with SES2 - SAS or enterprise SATA HDD only recommended |
| Peripheral Bay (Free) | Slim DVD-ROM drive (optional) |
| Backplane |
| HDD Backplane | SAS HDD Backplane with SES2 |
| Front Panel |
| Buttons | Power On/Off button, System Reset button |
| LEDs | Power LED, Hard drive activity LED, 2x Network activity LEDs, System Overheat LED |
| Port | 2x Front USB Ports, 1x Serial COM Port |
| System Cooling |
| Fans/Air Shroud | 7x PWM cooling fans |
| Environmental |
| Operating Environment | Non-Operating Relative Humidity Range: 5% - 95% (non-condensing) |
| Operating Temperature Range: 5°C ~ 35°C (41°F ~ 95°F) |
| Non-Operating Temperature Range: -40°C ~ 60°C (-40°F ~ 140°F) |
| Operating Relative Humidity Range: 8% ~ 90% (non-condensing) |
| Power Supply |
| Power Supply | 1400W high-efficiency power supply with PMBus |
| Regulatory Safety / EMC | USA - UL listed, FCC, Canada - CUL listed, Europe/CE Mark, EN 60950/IEC 60950-Compliant, Germany - TUV Certified, CCC Certification |
| Parts List - (Items Included) |
| Motherboard / Chassis | 1x CSE-818A-1400LPB |
| Air Shroud | 1x MCP-310-81804-0B |
| Backplane | 1x BPN-SAS-818TQ |
| Cable(s) | 1x CBL-0108L-02, 1x CBL-0087, 1x CBL-0154L, 1x CBL-0260L |
| Fan(s) | 7x FAN-0101L4 |
| Front Panel Control | 1x MCP-280-81301-0N |
| Drive Trays | 3x CSE-PT39-B0 |
| Mounting Rails | 1x MCP-290-00016-0N, 1x MCP-290-00042-0V |
| Power Supply Number | 1x PWS-1K41F-1R, 1x PDB-PT818-8824 |
| Parts | 1x MCP-260-81801-0N, 1x CSE-PT93L-B, 1x CSE-PT94L-B, 1x MCP-250-00001-00 |
| Rear Window | 1x MCP-240-81807-0N, 1x MCP-240-81806-0N |
