| System Monitoring |
| System Monitoring | Optional Chassis intrusion switch |
| Power Supply |
| Certification | Platinum Certified |
| Power Efficiency | 94+% |
| Total Output Power and Input | 920W with Input 100 - 127Vac |
| 920W with Input 200 - 240Vac |
| 920W with Input 200 - 240Vdc |
| AC Input Frequency | 50-60Hz |
| Dimensions (L x W x H) | 336 x 76 x 40 mm |
| Output Type | Backplanes (gold finger) |
| +12V | Max: 75A / Min: 0A (200Vac - 240Vac) |
| Max: 75A / Min: 0A (100Vac - 127Vac) |
| +5Vsb | Max: 4A |
| Power Distributor | -12V Max: 0.6A |
| +3.3V Max: 24A |
| +5V Max: 30A |
| O/P: 12V/75 |
| PDB-PT826-L8824 |
| Product SKUs |

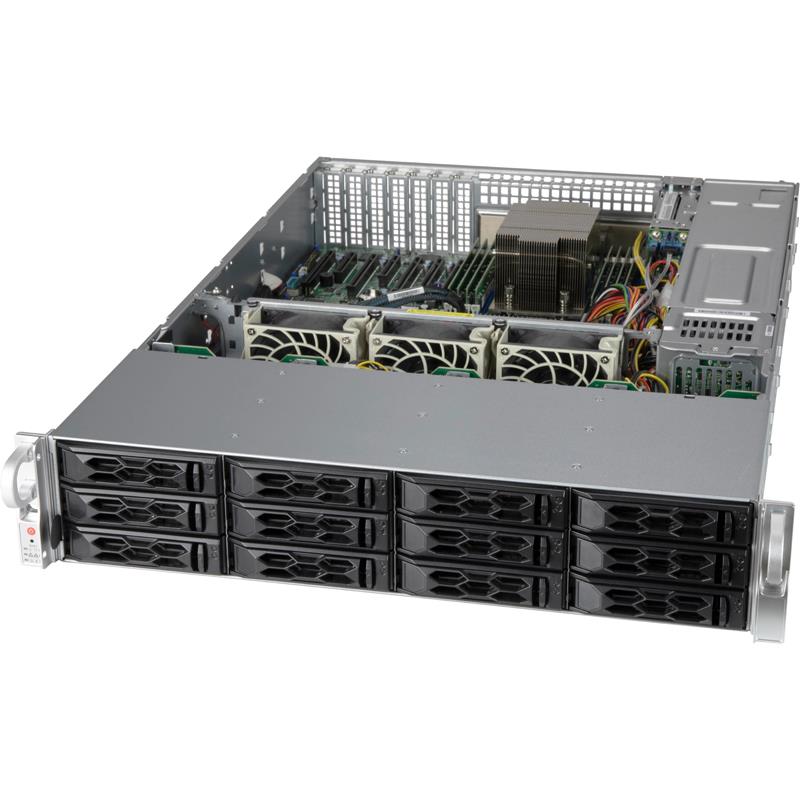

| Product SKUs | CSE-LA26AC12-R920LP1 |
| Form Factor |
| Form Factor | 2U chassis support max. motherboard size - ATX 12" x 10", E-ATX 12" x 13", EE-ATX 13" x 13.68". Support up to ATX 12"x13" MB with rear 2.5" HDD option installed |
| Processor Support |
| Processor Support | Dual and Single Intel® and AMD processors |
| Dimensions |
| Height | 3.5" (89 mm) |
| Width | 17.2" (437 mm) |
| Depth | 25.5" (647 mm) |
| Gross Weight | 69 lbs (31.3 kg) |
| Net Weight | 35.3 lbs (16 kg) |
| Packaging (W x H x L) | 26.4" (671 mm) x 11.4" (290 mm) x 34.3" (871 mm) |
| Available Color | Black |
| Expansion Slots |
| Expansion Slots | 7x Low-profile expansion slot(s) |
| Drive Bays |
| Drive Bays | Optional 2x 2.5" hot-swap drive bay |
| 12x 3.5" (tool-less) or 2.5" (screw) hot-swap SAS3/SATA drive bay with SES3 |
| Backplane |
| Backplane | 12-Port 2U LFF Backplane Supports 12 x SAS3/SATA3/NVMe4 Storage Devices with 1x(2x4) + 4x(1x4) power connectors, co-lay with BPN-SAS3-LA26A-N12,HF,RoHS |
| Front Panel |
| Button | Power On/Off button |
| System Reset button |
| LED | Power status LED |
| HDD activity LED |
| 2 Network Activity LEDs |
| Unit Identification (UID) LED |
| Fan Fail/System Over Heat LED |
| Systems Cooling |
| Fans | 3x 8cm high-performance PWM fan(s) |
| Operating Environment (System) |
| Operating Temperature Range | 5°C - 35°C (41°F - 95°F) |
| Non-Operating Temperature Range | -40°C - 70°C (-40°F - 158°F) |
| Operating Relative Humidity Range | 8% - 90% (non-condensing) |
| Non Operating Relative Humidity Range | 5% - 95% (non-condensing) |
| Regulatory (Power Supply) |
| Power Supply Safety / EMC | CCC |
| BSMI |
| CE/EMC |
| UL/CB |
