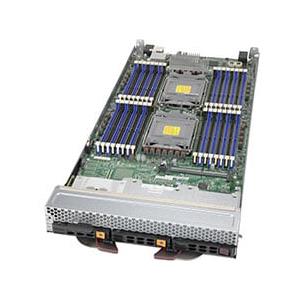

Supermicro SBI-620P-1T3N DP Blade 6U/10 Dual Intel Xeon Scalable Processors 3rd Generation
• Cloud Service
• Simulation & Modeling
• AI Inferencing
• High-performance Computing (HPC)
1. 140 CPUs per 42U Rack
2. Dual socket P+ (LGA-4189) supports 3rd Gen Intel® Xeon® Scalable processors
3. Intel® C621A chipset
4. 32 DIMMs; up to 8TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM
5. 3 Hot-plug 2.5" NVMe/SATA3 drive bays
6. Dual 25G onboard Ethernet
7. IPMI 2.0, KVM over IP, Virtual Media over LAN
8. Graphics: Aspeed AST2600
9. Cooling: Passive CPU heatsink CPU1: SNK-P1044V CPU2: SNK-P0077V
Extra Specifications for Supermicro SBI-620P-1T3N DP Blade 6U/10 Dual Intel Xeon Scalable Processors 3rd Generation
| Processor | ||
| CPU | Dual Socket P+ (LGA-4189) | |
| 3rd Gen Intel® Xeon® Scalable Processors, 3 UPI up to 11.2 GT/s | ||
| TDP up to 270W | ||
| System Memory | ||
| Memory Capacity | 32 DIMM slots | |
| Supports Intel® Optane™ Persistent Memory †† | ||
| Up to 8TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM | ||
| Memory Type | 3200/2933/2666/2400MHz ECC DDR4 RDIMM/LRDIMM | |
| Note | †† Please contact your Supermicro sales rep for more info. | |
| On-Board Devices | ||
| Chipset | Intel® C621A chipset | |
| Network Controllers | Dual 25G Ethernet | |
| 1 optional 25GbE Mezzanine card | ||
| IPMI | Support for Intelligent Platform Management Interface (IPMI) v.2.0 via Chassis Management Module (CMM) | |
| Graphics | Aspeed AST2600 | |
| System BIOS | ||
| BIOS Type | 256Mb SPI Flash EEPROM with AMI® BIOS | |
| BIOS Features | USB Keyboard support | |
| Plug and Play (PnP) | ||
| PCI 2.2 | ||
| ACPI up to 3.0 | ||
| Dimensions | ||
| Height | 9.75" | |
| Width | 1.75" | |
| Depth | 23.5" | |
| Weight | 14.2 lbs (6.41 kg) | |
| Available Colors | Black | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| KVM button | ||
| LEDs | Power LED | |
| UID / KVM LED | ||
| Network Activity LED | ||
| Fault LED | ||
| Connector | SUV (Serial/USB/Video) & KVM Connector | |
| Drive Bays | ||
| Hot-swap | 3 Hot-Plug 2.5" NVMe/SATA3 drive bays | |
| Input / Output | ||
| TPM | 1 TPM Header | |
| Cooling | ||
| Heatsink | Passive CPU heatsink CPU1: SNK-P1044V CPU2: SNK-P0077V | |
| Operating Environment | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
| Product SKUs | ||
| Product SKUs | ||
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-B12DPE-6-P | 1 | Super B12DPE-6 Motherboard | |
| Motherboard / Chassis | MCP-680-61003-0N | 1 | 6U 10 SuperBlade DP Blade chassis | |
| Add-on Card / Module | AOM-BPNIO-SNE | 1 | AOM-BPNIO-SC, I/O module for uBlade,RoHS | |
| Hard Drive Tray | MCP-220-00170-0B | 2 | Black hot swap tool-less NVMe 2.5" HDD tray with orange button | |
| Air Shroud | MCP-310-61001-0B | 1 | 6U 10 SuperBlade B11DPE Processor Tray Air Shroud | |
| Software | SFT-OOB-LIC • | 1 | OOB Management Package (per node license) |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| TPM security module(optional, not included) | AOM-TPM-9670V | $ 52.00 | 1 | TPM module (Vertical) TPM 2.0 | ||
| TPM security module(optional, not included) | AOM-TPM-9671V | $ 52.00 | 0 | TPM module (Vertical) TPM 1.2. | ||
| Heatsink / Retention | SNK-P0077V | $ 69.00 | 0 | X12 ICX/CPX CPU Heatsink (78x113x25.5mm), VC Base, Cu Fin | ||
| Heatsink / Retention | SNK-P1044V | $ 70.50 | 0 | 1U Passive CPU Heat Sink for B12 ICX/CPX CPU | ||
| AOC | AOC-VROCPREMOD | $ 342.50 | 0 | Intel VROC Premium, RAID 0, 1, 5, 10 | ||
| AOC | AOC-VROCSTNMOD | $ 133.50 | 0 | Intel VROC HW key (RSTe) standard upgrade module | ||
| Networking | AOC-B25G-6X4D | 0 | Dual-port 25G Mezz card for SuperBlade 6U Chassis (Mellanox ConnectX-4 Lx EN) | |||
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
| Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 1 year, 2 weeks afterward |
