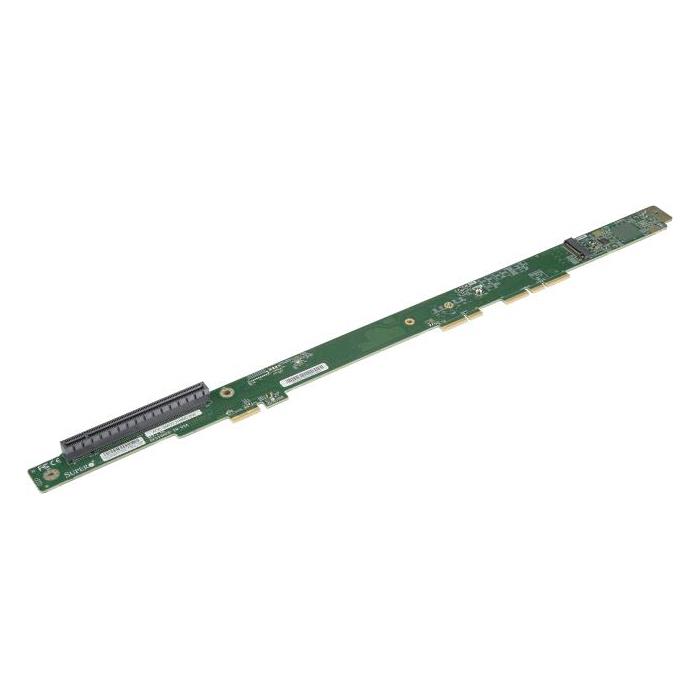

Supermicro 2-Port M.2 Hybrid NVMe or SATA3 Add-on Card for 1U X12 BigTwin, AOC-SMG3-2H8M2-BW

Supermicro 2-Port M.2 Hybrid NVMe or SATA3 Add-on Card for 1U X12 BigTwin, AOC-SMG3-2H8M2-BW

Carrier Card M.2 SATA/NVMe, Supports 2x Solid State Drives (SSDs), M-Key Connectors (Auto-detects SATA or NVMe M.2), in the following form factors: 22x80 mm, 110mm, Onboard : Supports activity LED onboard for each M.2 SSD, OS Support : Windows, Linux, and VMWare, Designed for Supermicro Server SYS-220BT-DNC8R, SYS-220BT-DNTR, SYS-220BT-HNC8R, SYS-220BT-HNC9R, SYS-220BT-HNTR, SYS-620BT-DNC8R, SYS-620BT-DNTR, SYS-620BT-HNC8R, SYS-620BT-HNTR - RoHS Compliant 6/6, Pb Free

$ 131.50$ 131.50131.5USD

$ 131.50

Option not available

InStock
1 lb

Contact us for volume discounts

    This combination does not exist.

    Add to Cart

    Hybrid (NVMe or SATA) M.2 carrier riser card for X12 BigTwin®
    Supports 2x Supports x2 M.2 M key connectors for the following length:

    Top side: 80mm

    Bottom side: 80mm or 110mm with OEM SKU support (Please contact your Supermicro Sales representative for more information)


    Auto-detects SATA or NVMe M.2
    Each NVMe M.2 SSD links to a full x4 PCI-E Gen3 and SATA M.2 SSD links to PCH
    Supports activity LED onboard for each M.2 SSD
    Gen4 x16 PCI-E slot riser card function
    Thermal operating range: System dependent (55°C or higher w/ enough airflow)

    Extra Specifications for Supermicro 2-Port M.2 Hybrid NVMe or SATA3 Add-on Card for 1U X12 BigTwin, AOC-SMG3-2H8M2-BW

    Add-on Card
    Add-on CardPerfectly streamlined for the BigTwin, the SATA/NMVe M.2 Carrier Card features 2 M-key connectors for x2 NVMe or SATA M.2 SSDs. It auto-detects SATA or NVMe protocols. Both NVMe M.2 SSDs are linked to 4 lanes of PCI-E 3.0 bandwidth. It delivers a storage solution with SATA and NVMe drives. This product is only available through Supermicro.
    Compliance
    RoHSRoHS Compliant 6/6, Pb Free
    Dimensions
    L x W18.05" x 1.24"
    Validated Platforms
    Servers{' SYS-220BT-DNC8R SYS-220BT-DNTR SYS-220BT-HNC8R SYS-220BT-HNC9R SYS-220BT-HNTR SYS-620BT-DNC8R SYS-620BT-DNTR SYS-620BT-HNC8R SYS-620BT-HNTR ': ['https://www.supermicro.com/en/products/system/BigTwin/2U/SYS-220BT-DNC8R\n', 'https://www.supermicro.com/en/products/system/BigTwin/2U/SYS-220BT-DNTR\n', 'https://www.supermicro.com/en/products/system/BigTwin/2U/SYS-220BT-HNC8R\n', 'https://www.supermicro.com/en/products/system/BigTwin/2U/SYS-220BT-HNC9R\n', 'https://www.supermicro.com/en/products/system/BigTwin/2U/SYS-220BT-HNTR\n', 'https://www.supermicro.com/en/products/system/BigTwin/2U/SYS-620BT-DNC8R\n', 'https://www.supermicro.com/en/products/system/BigTwin/2U/SYS-620BT-DNTR\n', 'https://www.supermicro.com/en/products/system/BigTwin/2U/SYS-620BT-HNC8R\n', 'https://www.supermicro.com/en/products/system/BigTwin/2U/SYS-620BT-HNTR\n']}
    Validated Platforms
    Downloads
    User's Guide[ https://www.supermicro.com/about/policies/disclaimer_manuals.cfm?url=/manuals/other/AOC-SMG3-2H8M2-BW.pdf ]
    NamePart NumberQty.Description
    AOC-SMG3-2H8M2-BW12x Hybrid M.2 riser carrier card for X12 BigTwin ,RoHS

    Warranty:3 years, 120 days advance replacement (doa)
    Coverage:Replacement or repair
    Average Service Time:Overnight replacement for 120 days, 2 weeks afterward
    E-mail:returnservices@wiredzone.com

    If you need Technical Support for this item please contact:

    Provider:Supermicro
    Type of Support:FULL
    Phone No.:408-503-8000
    URL:Click here for Manufacturer Website
