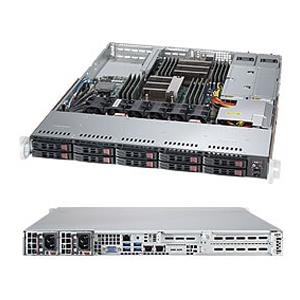

Supermicro SYS-1028R-WC1R 1U Barebone Dual Intel Processor
Compact 1U Barebone supporting Intel Xeon E5-2600 v4/v3 processors
High-Speed Storage with onboard SAS3 via Broadcom 3108 RAID and 2 SuperDOM
Scalable Memory up to 2TB DDR4-2400MHz LRDIMM/RDIMM across 16 DIMM slots
Reliable Networking with dual Gigabit Ethernet LAN ports and a dedicated IPMI LAN port
Server Barebone 1U with Dual Intel Xeon E5-2600 v4/v3 Sockets, supporting up to 2TB DDR4 ECC LRDIMM, up to 2400MHz in 16x 288-pin slots - On-Board : SATA3 via Intel C610 (RAID 0, 1), SAS3 12Gbps via LSI 3108 (RAID 0, 1, 5, 6, 10, 50, 60), IPMI 2.0, 2x Gigabit Ethernet, VGA - Includes : 10 Hot-swap 2.5in SAS / SATA HDD trays (connected to onboard storage controller), SAS/SATA HDD Backplane (Optional 2x 2.5in NVMe drives), 1x Riser Card (RSC-R1UW-2E16), 2x Heatsinks (1x SNK-P0057PS and 1 SNK-P0047PSC), Rails Kit, Redundant 700W/750W Platinum Level Power Supply (2x PWS-706P-1R), MBD-X10DRW-i Motherboard, SC116AC2-R706WB 1U Chassis (Black)
This product is no longer available.
1. Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4 † /v3 family; QPI up to 9.6GT/s
2.Up to 2TB † ECC 3DS LRDIMM, up to DDR4- 2400 † MHz; 16x DIMM slots
3. 2 PCI-E 3.0 x16 (FHHL) slots

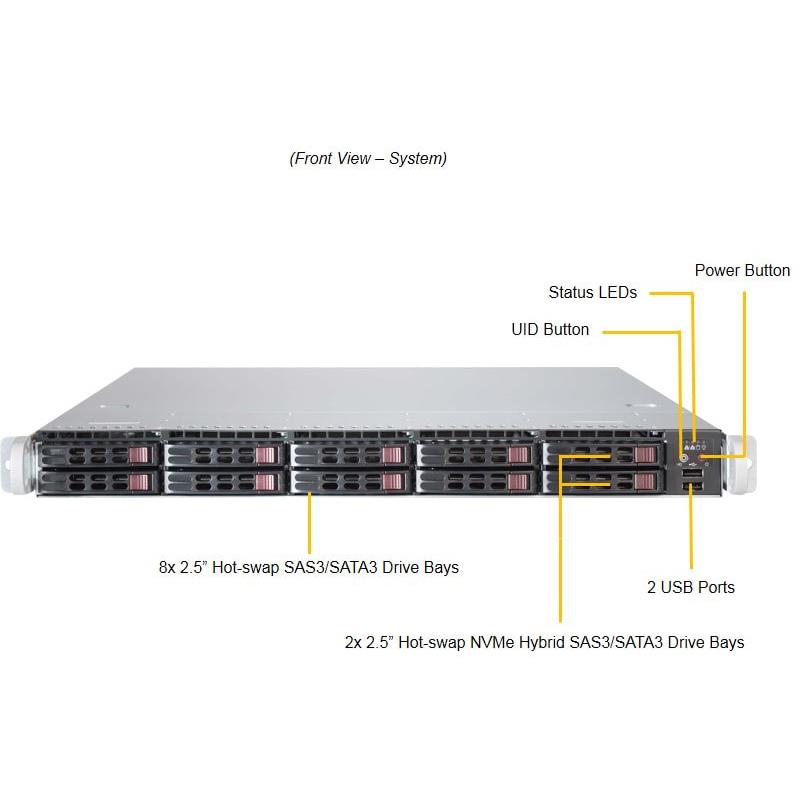

4. 10 Hot-swap 2.5" SAS/SATA drive bays; (default 8 SAS3, 2 SATA3)
5. SAS3 (12Gbps) via Broadcom 3108
6. Intel® i350 Dual port GbE LAN
7. I/O ports: 2x SuperDOM, 1x VGA, 1x COM, 6x USB 3.0 (4 rear, 2 front)
8. Optional 2x 2.5" NVMe drives support
9. 750W Redundant Power Supplies Platinum Level High-efficiency
Extra Specifications for Supermicro SYS-1028R-WC1R 1U Barebone Dual Intel Processor
| Product SKUs | ||
| Product SKUs | SuperServer 1028R-WC1R (Black) | |
| Motherboard | ||
| Motherboard | Super X10DRW-i | |
| Processor/Cache | ||
| CPU | Dual Socket R3 (LGA 2011) | |
| Intel® Xeon® processor E5-2600 v4 † / v3 family (up to 145W TDP) * | ||
| Cores / Cache | Up to 22 Cores † / Up to 55MB † Cache | |
| System Bus | QPI up to 9.6 GT/s | |
| Note | † BIOS version 2.0 or above is required | |
| * Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization. | ||
| System Memory | ||
| Memory Capacity | 16x 288-pin DDR4 DIMM slots | |
| Up to 2TB † ECC 3DS LRDIMM/RDIMM | ||
| Memory Type | 2400 † /2133/1866/1600MHz ECC DDR4 SDRAM 72-bit | |
| DIMM Sizes | LRDIMM: 64GB, 32GB | |
| 3DS LRDIMM: 128GB | ||
| RDIMM: 32GB, 16GB, 8GB, 4GB | ||
| Memory Voltage | 1.2 V | |
| Error Detection | Corrects single-bit errors | |
| On-Board Devices | ||
| Chipset | Intel® C612 chipset | |
| SATA | SATA3 via Intel® C610; RAID 0, 1 | |
| SAS | RAID 0, 1, 5, 6, 10, 50, 60 support | |
| SAS3 (12Gbps) via Broadcom 3108 | ||
| 2GB DDR3 Cache | ||
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| ASPEED AST2400 BMC | ||
| Network Controllers | Virtual Machine Device Queues reduce I/O overhead | |
| Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output | ||
| 1x Realtek RTL8211E PHY (dedicated IPMI) | ||
| Intel® i350 Dual Port Gigabit Ethernet Controller | ||
| Graphics | ASPEED AST2400 BMC | |
| Input / Output | ||
| Serial ATA | 2 SATA3 (6Gbps) ports | |
| SAS | 8 SAS3 (12Gbps) ports | |
| LAN | 2 RJ45 Gigabit Ethernet LAN ports | |
| 1 RJ45 Dedicated IPMI LAN port | ||
| USB | 6 USB 3.0 ports (4 rear + 2 via header) | |
| VGA | 1 VGA port | |
| Serial Port / Header | 1 Fast UART 16550 header | |
| DOM | 2 Super DOM (Disk on Module) ports | |
| PC Health Monitoring | ||
| Voltage | Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory Voltages. | |
| 5+1 Phase-switching voltage regulator | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| 6x fans with tachometer monitoring | ||
| 6x 4-pin fan headers (up to 6 fans) | ||
| Temperature | Monitoring for CPU and chassis environment | |
| CPU thermal trip support | ||
| Thermal Monitor 2 (TM2) support | ||
| PECI | ||
| Thermal Control for 8x Fan Connectors | ||
| LED | UID/Remote UID | |
| Suspend static indicator LED | ||
| System Information LED | ||
| Other Features | Chassis intrusion detection | |
| Chassis intrusion header | ||
| SDDC Support | ||
| RoHS | ||
| Chassis | ||
| Form Factor | 1U Rackmount | |
| Model | CSE-116AC2-R706WB | |
| Dimensions and Weight | ||
| Width | 17.2" (437mm) | |
| Height | 1.7" (43mm) | |
| Depth | 23.5" (597mm) | |
| Weight | Net Weight: 25.5 lbs (11.6 kg) | |
| Gross Weight: 39 lbs (17.7 kg) | ||
| Available Colors | Black | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| UID button | ||
| LEDs | 2 Network activity LEDs | |
| Power status LED | ||
| HDD activity LED | ||
| Universal Information (UID) LED | ||
| Expansion Slots | ||
| PCI-Express | 2 PCI-E 3.0 x16 full-height, Half-length slots | |
| Drive Bays | ||
| Hot-swap | 10 Hot-swap 2.5" SAS/SATA HDD trays (Default 8 SAS3, 2 SATA3) | |
| Backplane | ||
| Backplane | SAS/SATA HDD Backplane Optional 2x 2.5" NVMe drives | |
| System Cooling | ||
| Fans | 5x 4cm heavy-duty counter-rotating fans w/ air shroud and optimal fan speed control | |
| AC/DC240V Input Redundant Power Supply | ||
| AC/DC240V Input Redundant Power Supply | 700W/750W Redundant Power Supplies with PMBus | |
| Total Output Power | 700W/750W | |
| Dimension (W x H x L) | 54.5 x 40.25 x 320 mm | |
| Input | 100 - 140Vac / 8 - 6A / 50-60Hz | |
| 200 - 240Vac / 4.5 - 3.8A / 50-60Hz | ||
| 200 - 240Vdc / 4.5 - 3.8A (CCC Only) | ||
| +12V | Max: 58A / Min: 0.5A (100 - 140Vac) | |
| Max: 62A / Min: 0.5A (200 - 240Vac) | ||
| Max: 62A / Min: 0.5A (200 - 240Vdc) (CB/CCC Only) | ||
| +5V sb | Max: 3A / Min: 0A | |
| Output Type | Gold Finger Connector Mating with Molex 45984-4343 | |
| Certification | Platinum Certified | |
| System BIOS | ||
| BIOS Type | 128Mb SPI Flash EEPROM with AMI BIOS | |
| BIOS Features | SMBIOS 2.7.1 | |
| USB Keyboard support | ||
| Plug and Play (PnP) | ||
| UEFI 2.3.1 | ||
| PCI 2.3 | ||
| ACPI 1.0 / 2.0 / 3.0 / 4.0 | ||
| APM 1.2 | ||
| BIOS resuce hot keys | ||
| Management | ||
| Software | Watch Dog | |
| NMI | ||
| Intel Node Manager | ||
| SuperDoctor® 5 | ||
| IPMI 2.0 | ||
| Power Configurations | Power-on mode for AC power recovery | |
| ACPI / APM Power Management | ||
| Operating Environment / Compliance | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) | |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | ||
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X10DRW-i | 1 | Super X10DRW-i Motherboard | |
| Motherboard / Chassis | CSE-116AC2-R706WB | 1 | 1U Chassis | |
| Add-on Card / Module | AOM-S3108M-H8 | 1 | LSI3108, SAS-3/Gen-3 12Gb/ROC | |
| Backplane | BPN-SAS3-116A-N2 | 1 | 10-port 1U SAS3 12Gbps Hybrid backplane, support up to 8x 2.5-inch SAS3/SATA3 HDD/SSD and 2x SAS3/SATA3/NVMe Storage Devices | |
| Cable 1 | CBL-CDAT-0662 | 1 | CBL,SGPIO,2X4F TO 2X4F,P2.54,ROUND CABLE,61.5CM,28AWG | |
| Cable 2 | CBL-SAST-0550 | 1 | MINI SAS HD,12G,INT,25CM,30AWG | |
| Cable 3 | CBL-0484L | 2 | SATA,INT,ROUND,ST-ST,55CM,30AWG | |
| Cable 4 | CBL-SAST-0568 | 1 | MINI SAS HD,12G,INT,35CM,30AWG | |
| Label | LBL-0108 | 1 | CAUTION LABEL FOR REDUNDANT PWR SYSTEMS | |
| Manual | MNL-1637-QRG | 1 | 1028R-WC1R(T) QRG,HF | |
| Riser Card | RSC-R1UW-2E16 | 1 | 1U LHS WIO Riser card with two PCI-E x16 slots | |
| Heatsink / Retention | SNK-P0057PS | 1 | 1U High Performance Passive CPU Heat Sink for X9, X10 Systems Equipped w/ a Narrow ILM MB | |
| Heatsink / Retention | SNK-P0047PSC | 1 | 1U Passive Front CPU Heat Sink w/ a Side Air Channel for X9, X10 Systems Equipped with a Narrow ILM MB | |
| Power Supply | PWS-706P-1R | 2 | 1U 750W redundant power width 54.5mm(Platinum),HF,RoHS/REACH,PBF | |
| Fan | FAN-0101L4 | 5 | 40x56mm, 4 Pin PWM Fan | |
| Rail Set | MCP-290-00063-0N | 1 set | Rail set, quick/quick, default for 1U 17.2"W for SC113/SC116,RoHS/REACH |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| NVMe Tray with Lock | MCP-220-00127-0B | $ 26.00 | 0 | Black gen-3 2.5" NVMe drive tray, Orange tab with lock (for hotswap NVMe drive),HF,RoHS/REACH | ||
| NVMe Controller Card & Cable | AOC-SLG3-2E4R &2x CBL-SAST-0590 | 0 | Supermicro 6.4GB/s dual-Port Gen-3 Internal NVMe Host Bus Adapter | |||
| CacheVault(s) | BTR-CV3108-1U1 | $ 324.50 | 1 | CacheVault for Broadcom 3108 with SuperCap mounting in 1U 40x56 fan tray | ||
| CacheVault(s) | BTR-TFM8G-LSICVM02 & BKT-BBU-BRACKET-05 | 0 | CacheVault for Broadcom 3108; SuperCap mounting bracket for PCI-E location | |||
| CacheVault(s) | BTR-TFM8G-LSICVM02 & MCP-240-00127-0N | 0 | CacheVault for Broadcom 3108; SuperCap mounting bracket for 2.5" HDD location | |||
| Network Card(s) | AOC-SGP-i2 | 0 | Standard LP, 2x GbE RJ45, PCI-E x4, Intel® i350AM2 | |||
| Network Card(s) | AOC-SGP-i4 | 0 | Standard LP, 4x GbE RJ45, PCI-E x4, Intel® i350 | |||
| Network Card(s) | AOC-SG-i2 | 0 | Standard LP, 2x GbE RJ45, PCI-E x4, Intel® 82575EB | |||
| Network Card(s) | AOC-SG-i4 | 0 | Standard LP, 4x GbE RJ45, PCI-E x8, Intel® 82576EB | |||
| Network Card(s) | AOC-STG-b4S | 0 | Standard LP, 4x 10GbE SFP+, PCI-E x8, Broadcom® BCM57840S | |||
| Network Card(s) | AOC-STGN-i2S | 0 | Standard LP, 2x 10GbE SFP+, PCI-E x8, Intel® 82599ES | |||
| Network Card(s) | AOC-STG-i2T | 0 | Standard LP, 2x 10GbE RJ45, PCI-E x8, Intel® X540 | |||
| Network Card(s) | AOC-STG-i2 | 0 | Standard LP, 2x 10GbE CX4, PCI-E x8, Intel® 82598EB | |||
| Front Bezel | MCP-210-11601-0B | $ 31.00 | 1 | Black Front Bezel for SC113, SC113M, SC116, SC119, SC119U, SC514 (No LED indicator support) | ||
| Global Services & Support | OS4HR3/2/1 | 0 | 3/2/1-year onsite 24x7x4 service | |||
| Global Services & Support | OSNBD3/2/1 | 0 | 3/2/1-year onsite NBD service | |||
| Software | SFT-OOB-LIC • | 1 | OOB Management Package (per node license) | |||
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
