- Supermicro AOC-SLG4-2H8M2 Carrier Card With 2-Port M.2 Hybrid NVMe or SATA3 Gen3 PCIe x8 RAID 0 & 1

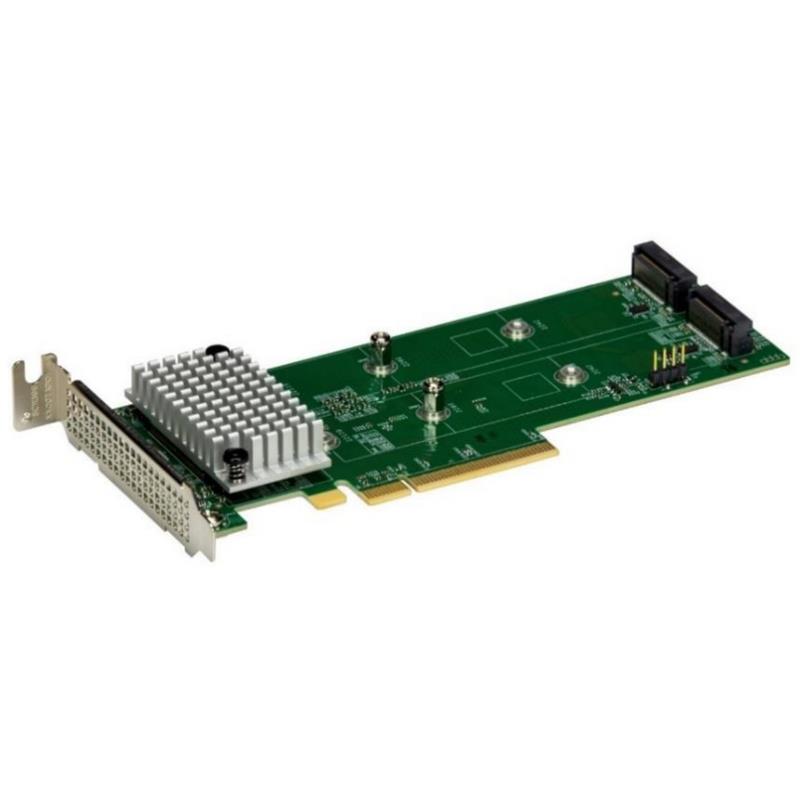

Supermicro AOC-SLG4-2H8M2 Carrier Card With 2-Port M.2 Hybrid NVMe or SATA3 Gen3 PCIe x8 RAID 0 & 1
2-Port Hybrid NVMe/SATA Gen4 PCIe x8 M.2 RAID Carrier Card, support RAID 0 & 1
Broadcom 3808 SAS Hardware RAID controller, dual M-Key sockets, 16 Gb/s per port, with RAID 0 and 1.
Broadcom SAS3808 I/O RAID Controller
x8 PCIe Gen4 Host interface
Dual M-Key sockets (for 2x M.2 SSD)
Adjustable stand-offs supporting 22110, 2280, & 2242 M.2 SSD form factors
Supports NVMe Gen 4 (16 Gbps) M.2 modules and SATA Gen 3 (6 Gbps) M.2 modules
Supports RAID 0 and RAID 1
Supports MCTP over PCIe/ I2C
Supports BMC-enabled management
Supports SAA (SuperServer Automation Assistant) management
Supports secure erase
Supports hardware secure boot
Supports on-board LEDs for SSD Activity and Status
UEFI Configuration utility
OS Support: Windows, Linux, and VMWare
Power Consumption: 7W (AOC only, maximum; M.2 power consumption excluded)
Thermal operating range: System dependent (55°C or higher w/ enough airflow)
Extra Specifications for Supermicro AOC-SLG4-2H8M2 Carrier Card With 2-Port M.2 Hybrid NVMe or SATA3 Gen3 PCIe x8 RAID 0 & 1
| Main Specifications | ||
| Device Type | M.2 Carrier Card | |
| Form Factor | Adjustable stand-offs supporting 22110, 2280, & 2242 M.2 SSD | |
| Interface | PCIe Gen 4.0 x8 | |
| Dimensions (WxDxH) | 6.6" x 2.71" | |
| Port | Dual M-Key sockets (for 2x M.2 SSD) | |
| Networking | ||
| RAID | RAID 0, 1 | |
| Storage Controller | ||
| I/O Controller | Broadcom SAS3808 I/O RAID Controller | |
| Power | ||
| Power Consumption | 7W (AOC only, maximum; M.2 power consumption excluded) | |
| Software / System Requirements | ||
| OS Supports | Windows, Linux, and VMWare | |
| Miscellaneous | ||
| Environmental Compliance | RoHS Compliant 6/6, Pb Free | |
