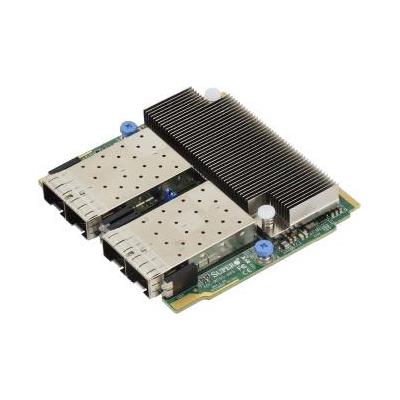

| Add-on Card | The Supermicro® AOC-M25G-m4S is one of the most feature rich 25GbE controllers in the market. With 4-ports of 25GbE SFP28 connectivity in small form factor SIOM, it provides unparalleled density, performance, and functionality. Based on the Mellanox® ConnectX-4 Lx EN with features such as VXLAN, NVGRE and RoCE; it provides flexible connectivity for different networking requirements. It is also compatible with 10GbE networks and is the most cost effective upgrade from 10GbE to 25GbE in Data Center and Cloud deployments. To order, contact your distributor. This product is only available through Supermicro. |
| Compliance |
| RoHS | RoHS Compliant 6/6 |
| Downloads |
| User's Guide | [ https://www.supermicro.com/manuals/other/AOC-M25G-m4S.pdf ] |
| Datasheet | [ https://www.supermicro.com/manuals/other/datasheet-AOC-M25G-m4S.pdf ] |
| Driver | Choose the latest CDR-NIC folder, and then click on Intel & Mellanox folder for driver [ https://www.supermicro.com/wdl/Networking_Drivers/ ] |
| Driver CD | Click on the latest CDR-NIC ISO file to download [ https://www.supermicro.com/wdl/Networking_Drivers/ ] |
| Compatibility Matrices |
| Servers | Supermicro Servers with SIOM support:https://www.supermicro.com/en/support/resources/aoc/siom |
| Cables & Transceivers | Networking Cables & Transceivers :https://www.supermicro.com/support/resources/AOC/Networking_Cables_Transceivers_Compatibility.cfm |
| Supported Platforms |
| Motherboards | Supermicro® motherboards with Super I/O Module slot |
| Servers | Supermicro® server systems with Super I/O Module slot (see SIOM Compatibility Matrix ):https://www.supermicro.com/en/support/resources/aoc/siom |
| Specifications |
| Ethernet: | 25GbE / 10GbE |
| IEEE 802.3ad, 802.1AX Link Aggregation |
| IEEE 802.1Q, 802.1P VLAN tags and priority |
| IEEE 1588v2 |
| Jumbo frame support |
| Enhanced Features: | Hardware-based reliable transport |
| Collective operations offloads |
| Vector collective operations offloads |
| 64/66 encoding |
| Dynamically Connected transport (DCT) |
| Enhanced Atomic operations |
| Support for MSI/MSI-X mechanisms |
| Storage Offloads: | Stateless offloads for overlay networks and tunneling protocols |
| Hardware offload of encapsulation of NVGRE and VXLAN overlay networks |
| Hardware-based I/O Virtualization: | Single Root IOV |
| Multi-function per port |
| Multiple queues per virtual machine |
| VMware NetQueue support |
| Virtualization: | SR-IOV: Up to 256 Virtual Functions |
| SR-IOV: Up to 16 Physical Functions per port |
| CPU Offloads: | RDMA over Converged Ethernet (RoCE) |
| TCP/UDP/IP stateless offload |
| LSO, LRO, checksum offload |
| RSS (can be done on encapsulated packet), TSS, HDS, VLAN insertion/stripping, Receive flow steering |
| Intelligent interrupt coalescence |
| Management Features: | NC-SI for remote management |
| Remote boot over iSCSI |
| PXE and UEFI |
| OS Support: | RHEL/CentOS (7.2, 7.1, 7.0, 6.8, 6.7, 6.6, 6.5, 6.2) |
| Windows (2012 R2, 2012) |
| FreeBSD (11) |
| VMware (6.5, 5.5) |
| Cables Support: | SFP28 Direct attach copper cables |
| SFP28 Fiber-optic cables (with required optional transceivers) |
| Power Consumption: | Maximum 20W |
| Operating Conditions: | Storage temperature: -40°C to 70°C (-40°F to 158°F) |
| Operating temperature: 0°C to 55°C (32°F to 131°F) |
| Storage humidity: 90% non-condensing relative humidity at 35ºC |
| Physical Dimensions: | Card PCB dimensions: 92mm (3.62in) x 87.1mm (3.43in) (W x D) |
| Super I/O Module (SIOM) Form Factor |
