| Add-on Card |

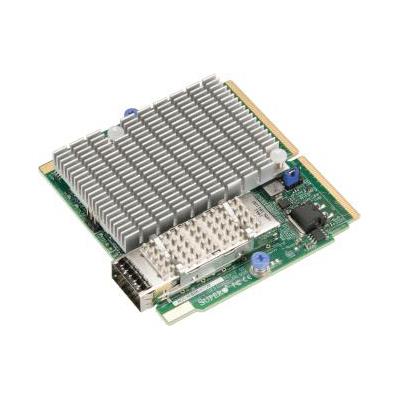

| Add-on Card | The AOC-MIBE6-m1C(M) is a powerful and versatile InfiniBand and Ethernet controller in a flexible small form-factor SIOM. Featuring Mellanox® controller, it can provide up to 100Gbps InfiniBand EDR/HDR-100 or 100Gbps Ethernet connectivities optimized for high-performance computing networks and are ideal for demanding Enterprise and HPC applications. To order, contact your distributor. This product is only available through Supermicro. |
| Compliance |
| RoHS | RoHS Compliant 6/6 |
| Supported Platforms |
| Motherboards | Supermicro® motherboards with Super I/O Module slot |
| Servers | Supermicro® server systems with Super I/O Module slot (See SIOM Compatibility Matrix online ):https://www.supermicro.com/en/support/resources/aoc/siom |
| Downloads |
| User's Guide | [ https://www.supermicro.com/about/policies/disclaimer_manuals.cfm?url=/manuals/other/AOC-MIBE6-m1C_m1CM.pdf ] |
| Datasheet | [ https://www.supermicro.com/manuals/other/datasheet-AOC-MIBE6-m1C_m1CM.pdf ] |
| Driver | Choose the latest CDR-NIC folder, and then click on Mellanox folder for driver [ https://www.supermicro.com/wdl/Networking_Drivers/ ] |
| Driver CD | Click on the latest CDR-NIC ISO file to download [ https://www.supermicro.com/wdl/Networking_Drivers/ ] |
| Specifications |
| Networking Features | Jumbo frame support (9.6KB) |
| IEEE 802.3ad, 802.1AX Link Aggregation |
| VMware NetQueue support |
| IEEE 802.1Q, 802.1P VLAN tags and priority |
| IEEE 802.3az Energy Efficient Ethernet |
| IEEE 802.3ap based autonegotiation and KR startup |
| IEEE 802.1Qau (QCN) – Congestion Notification |
| Offload Features | RDMA over Converged Ethernet (RoCE) |
| TCP/UDP/IP stateless offload |
| Large Receive Offload (LSO) |
| Receive Side Scaling (RSS) |
| Transmit Side Scaling (TSS) |
| Data Plane Development Kit (DPDK) for kernel bypass application |
| Open VSwitch (OVS) offload using ASAP2 |
| Flexible match-action flow tables Tunneling encapsulation / de-capsulation |
| Intelligent interrupt coalescence |
| Header rewrite supporting hardware offload of NAT router |
| Management Features | Jumper for standby power (default disabled) |
| Network Controller Sideband Interface (NC-SI) |
| NC-SI is not supported during standby with default setting |
| Preboot eXecution Environment (PXE) support |
| iSCSI remote boot support |
| Asset Management with thermal sensor |
| OS Support | Windows® Server |
| Linux RHEL |
| Linux SLES |
| Linux Ubuntu |
| Linux CentOS |
| FreeBSD |
| VMware |
| OpenFabrics Enterprise Distribution (OFED) |
| OpenFabrics Windows Distribution (WinOF-2) |
| Power Consumption | Maximum 20W |
| Operating Conditions | Operating temperature: 0°C to 55°C (32°F to 131°F) |
| Storage temperature: -40°C to 65°C (-40°F to 149°F) |
| Storage humidity: 90% non-condensing relative humidity at 35°C |
| Physical Dimensions | Card PCB dimensions: 92mm (3.62in) x 87.1mm (3.43in) (W x D) |
| Super I/O Module (SIOM) Form Factor |
