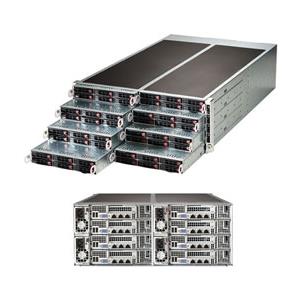

Supermicro SYS-F618R2-RT+ Twin Barebone Dual CPU, 8-Node
Server 4U Rackmount FatTwin with 8 Systems (Nodes) - Each Node Supports : Up to two Intel Xeon E5-2600 v4/v3 series, Up to 2TB DDR4 ECC 3DS LRDIMM, up to 2400MHz memory in 16x 288-pin Sockets - On-Board (per Node) : SATA3 6Gbps (RAID 0, 1, 5, 10), IPMI 2.0, Intel i350-AMD 2x Gigabit Ethernet, VGA - Included (per Node) : 6x 2.5in Hot-swap SATA3 HDD trays, 1x SAS/SATA backplane, 1x Riser Card (RSC-R1UF-E16R), 2x Heatsinks (1x SNK-P0047PSM, 1x SNK-P0057P) - System includes : 1620W Redundant 80 Plus Platinum Level Certified Power Supply (4x PWS-1K62P-1R), 8x MBD-X10DRFR Motherboards, 1x CSE-F418BC-R1K62B 4U Chassis – Black
This product is no longer available.
1. Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4 † /v3 family; QPI up to 9.6GT/s
2.Up to 2TB † ECC 3DS LRDIMM, up to DDR4- 2400 † MHz; 16x DIMM slots
3. Expansion slots: 1 PCI-E 3.0 x16 (LP) 1 PCI-E 3.0 x8 (Micro Low Profile)
4. I/O ports: 2 GbE ports, 1 Built-in video, 2 USB 3.0 ports
5. Built-in Server management tool (IPMI 2.0, KVM/media over LAN) with dedicated LAN port
6. 6x Hot-swap 2.5" SATA3 HDD Bays
7. 3x heavy duty internal fans
8. 1620W Redundant Power Supplies Platinum Level (94%)
Extra Specifications for Supermicro SYS-F618R2-RT+ Twin Barebone Dual CPU, 8-Node
| Motherboard | ||
| Motherboard | Super X10DRFR | |
| Processor/Cache | ||
| CPU | Dual Socket R3 (LGA 2011) | |
| Intel® Xeon® processor E5-2600 v4 † / v3 family (up to 145W TDP) * | ||
| Cores / Cache | Up to 22 Cores † / Up to 55MB † Cache | |
| System Bus | QPI up to 9.6 GT/s | |
| Note | † BIOS version 2.0 or above is required | |
| * Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization. | ||
| System Memory | ||
| Memory Capacity | 16x 288-pin DDR4 DIMM slots | |
| Up to 2TB † ECC 3DS LRDIMM, 1TB ECC RDIMM | ||
| Memory Type | 2400 † /2133/1866/1600MHz ECC DDR4 SDRAM 72-bit | |
| DIMM Sizes | LRDIMM: 64GB, 32GB | |
| 3DS LRDIMM: 128GB | ||
| RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB | ||
| Memory Voltage | 1.2 V | |
| Error Detection | Corrects single-bit errors | |
| On-Board Devices | ||
| Chipset | Intel® C612 chipset | |
| SATA | SATA3 (6Gbps) with RAID 0, 1, 5, 10 | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| ASPEED AST2400 BMC | ||
| Network Controllers | Virtual Machine Device Queues reduce I/O overhead | |
| Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output | ||
| 1x Realtek RTL8201N PHY (dedicated IPMI) | ||
| Intel® i350-AM2 Dual Port Gigabit Ethernet | ||
| Graphics | ASPEED AST2400 BMC | |
| Input / Output (per node) | ||
| Serial ATA | 10x SATA3 (6Gbps) ports | |
| LAN | 2x RJ45 Gigabit Ethernet LAN ports | |
| 1x RJ45 Dedicated IPMI LAN port | ||
| USB | 2x USB 3.0 ports | |
| VGA | 1x VGA port | |
| Management | ||
| Software | Watch Dog | |
| NMI | ||
| SuperDoctor® 5 | ||
| IPMI 2.0 | ||
| SUM and SSM | ||
| Power Configurations | Power-on mode for AC power recovery | |
| ACPI / APM Power Management | ||
| Chassis | ||
| Form Factor | 4U Rackmount | |
| Model | CSE-F418BC-R1K62BP | |
| Dimensions and Weight | ||
| Width | 17.63" (448mm) | |
| Height | 6.96" (177mm) | |
| Depth | 29" (737mm) | |
| Package | 28.3" (W) x 15.0" (H) x 42.4" (D) | |
| Weight | Net Weight: 150 lbs (68.04 kg) | |
| Gross Weight: 200 lbs (90.71 kg) | ||
| Available Colors | Black | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| UID button | ||
| LEDs | Hard drive activity LED | |
| Power status LED | ||
| 2x Network activity LEDs | ||
| Information LED (UID, Fan failure, Overheat) | ||
| Expansion Slots (per node) | ||
| PCI-Express | 1x PCI-E 3.0 x8 (Micro LP) | |
| MicroLP Adapter Matrix (Networking options) | ||
| 1x PCI-E 3.0 x16 Low-profile | ||
| Drive Bays (per node) | ||
| Hot-swap | 6x 2.5" Hot-swap SATA3 HDD trays | |
| Backplane | ||
| Backplane | 1x SAS/SATA backplane | |
| System Cooling (per node) | ||
| Fans | 3x 4cm 14k RPM middle fans | |
| Power Supply | ||
| Power Supply | 1620W high-efficiency redundant power supply w/ PMBus | |
| AC Input | 1000W Output @ 100-120V, 12-10A, 50-60Hz | |
| 1200W Output @ 120-140V, 12-10A, 50-60Hz | ||
| 1620W Output @ 180-240V, 10.5-8A, 50-60Hz | ||
| DC Output | 1000W: +12V/84A; +5Vsb/4A | |
| 1200W: +12V/100A; +5Vsb/4A | ||
| 1620W: +12V/150A; +5Vsb/4A | ||
| Certification | Platinum Certified | |
| System BIOS | ||
| BIOS Type | 128Mb SPI Flash EEPROM with AMI BIOS | |
| BIOS Features | USB Keyboard support | |
| Plug and Play (PnP) | ||
| PCI 2.2 | ||
| SMBIOS 2.3 | ||
| ACPI 1.0 / 2.0 | ||
| UEFI | ||
| APM 1.2 | ||
| Operating Environment / Compliance | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) | |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | ||
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Product SKUs | ||
| Product SKUs | SuperServer F618R2-RT+ (Black) | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X10DRFR | 8 | Super X10DRFR Motherboard | |
| Motherboard / Chassis | CSE-F418BC-R1K62BP | 1 | 4U Chassis | |
| Backplane | BPN-ADP-F418LS | 8 | Power Distribution Board for X10DRFR,RoHS/REACH,PBF | |
| Backplane | BPN-SAS-F418-B6 | 8 | 6-port Fat Twin 6Gbps hot swappable HDD backplane (W/O SGPIO), support up to 6x 2.5-inch SAS/SATA HDD | |
| Cable 1 | CBL-0157L-02 | 16 | CBL,SGPIO,2X4F TO 2X4F,P2.54,RIBBON IN RND TUBE,27CM,28AWG | |
| Cable 2 | CBL-0481L | 16 | SATA,INT,ROUND,ST-ST,81CM,30AWG | |
| Cable 3 | CBL-0484L | 16 | SATA,INT,ROUND,ST-ST,55CM,30AWG | |
| Cable 4 | CBL-0486L | 16 | 2x2 to 2x2 15cm power cable HF. 18AWG | |
| Cable 5 | CBL-0489L | 16 | SATA,INT,ROUND,ST-RA,70CM,30AWG | |
| Cable 6 | CBL-OTHR-0022L | 8 | 20 to 20 pin cable for BPN-ADP-F418LS,7.5cm, 28AWG,RoHS/REACH,PBF | |
| Cable 7 | CBL-PWCD-0900 | 4 | PWCD,US/EU/Canada/China/Australia,IEC60320 C14 TO C13,4FT,17AWG | |
| Manual | MNL-1650-QRG | 1 | Quick Reference Guide for SYS-F618R2-RT+/R72+,HF,RoHS/REACH | |
| Riser Card | RSC-R1UF-E16R | 8 | RSC-R1UF-E16R | |
| Heatsink / Retention | SNK-P0047PSM | 8 | 1U Passive Front CPU Heat Sink w/ a Middle Air Channel for X9, X10 2U Twin^2+ and Twin Pro^2 Series Servers | |
| Heatsink / Retention | SNK-P0057P | 8 | 1U High Performance Passive CPU Heat Sink for X9, X10 Systems Equipped w/ a Square ILM MB | |
| * Power Supply | PWS-1K62P-1R | 4 | 1620W REDUNDANT POWER MODULE | |
| * Backplane | BPN-PDB-F418 | 2 | Fat Twin Mid-plane; support 2x PS; 4x MB hot-swap & over-current connection; Front panel connection and 4X PWM fan control | |
| * Rail Set | MCP-290-41803-0N | 1 | Fat twin F418 / F424 Static Rail set support 28-33.5 inch depth rail,RoHS/REACH,PBF |
Note:
• Parts with * are inside the chassis
• Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
