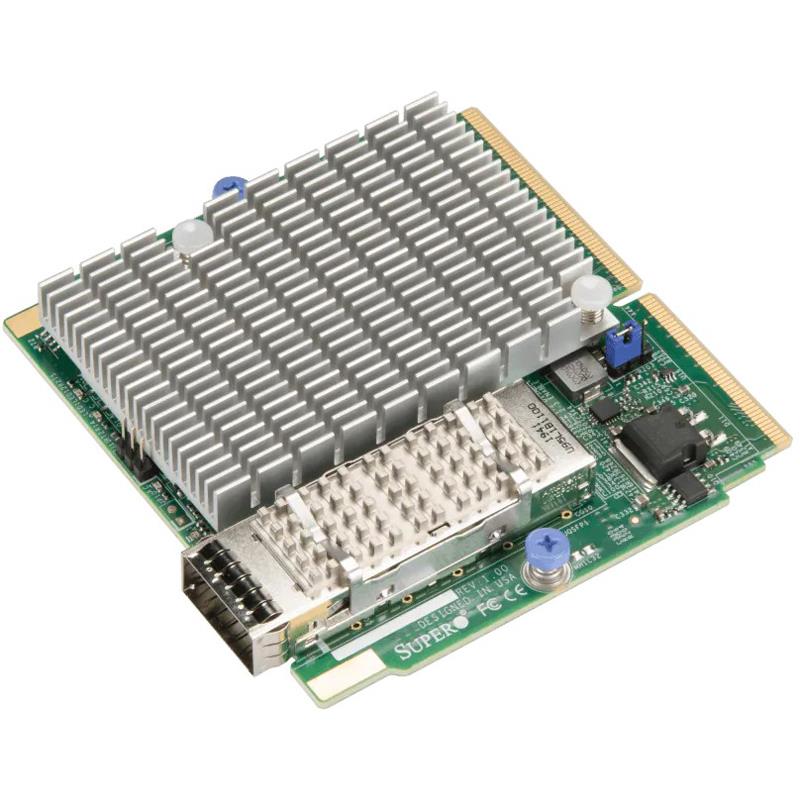

  2. Supermicro AOC-MIBE6-M1C Single-port 100Gbps Versatile InfiniBand and Ethernet Controller Card - Super I/O Module (SIOM) Form Factor
Supermicro AOC-MIBE6-M1C Single-port 100Gbps Versatile InfiniBand and Ethernet Controller Card - Super I/O Module (SIOM) Form Factor

Supermicro AOC-MIBE6-M1C Single-port 100Gbps Versatile InfiniBand and Ethernet Controller Card - Super I/O Module (SIOM) Form Factor

  • Mellanox ConnectX-6 Controller

  • Super I/O Module (SIOM) Form Factor

  • Single QSFP28 port with speed up to 100Gbps

  • Asset Management Features with thermal sensor

100Gbps InfiniBand and Ethernet Controller Card, Super I/O Module (SIOM) Form Factor, Based on Mellanox ConnectX-6 Controller, Single SFP28 Connectors with Speed up to 100Gbps, Bracket Included : Internal Bracket for 2U+ Chassis (Storage Servers), RoHS Compliant 6/6, (AOC-MIBE6-M1C-O) - Can be ordered in bundle with Supermicro System ONLY

$ 1,227.00$ 1,227.001227.0USD

$ 1,227.00

Option not available

    This combination does not exist.

    Add to Cart

    The Ultimate InfiniBand Adapter in Supermicro Super I/O Module (SIOM) Form Factor


    The AOC-MIBE6-m1C is a powerful and versatile InfiniBand and Ethernet controller in a flexible small form-factor SIOM. Featuring Mellanox® ConnectX-6 controller, it can provide up to 100Gbps InfiniBand EDR/HDR-100 or 100Gbps Ethernet connectivities optimized for high-performance computing networks and are ideal for demanding Enterprise and HPC applications.


    Key Features


    • Super I/O Module (SIOM) Form Factor

    • Mellanox ConnectX-6 Controller

    • Up to 100Gbps InfiniBand EDR/HDR-100 or 100Gbps Ethernet

    • NC-SI for Remote Management

    • VXLAN and NVGRE

    • Asset Management Features with thermal sensor

    • PCI-E Gen4 and PCI-E Gen3 support

    Extra Specifications for Supermicro AOC-MIBE6-M1C Single-port 100Gbps Versatile InfiniBand and Ethernet Controller Card - Super I/O Module (SIOM) Form Factor

    Main Specifications
    Device TypeVersatile InfiniBand and Ethernet Controller Card
    Form FactorSuper I/O Module (SIOM)
    InterfacePCI-E Gen4 and PCI-E Gen3 support
    Dimensions (WxDxH)Card PCB dimensions: 92mm (3.62in) x 87.1mm (3.43in) (W x D)
    Connectivity
    ConnectorsSingle QSFP28 port with speed up to 100Gbps
    Networking
    Controller TypeMellanox ConnectX-6 Controller
    Networking FeaturesJumbo frame support (9.6KB), IEEE 802.3ad, 802.1AX Link Aggregation, VMware NetQueue support, IEEE 802.1Q, 802.1P VLAN tags and priority, IEEE 802.3az Energy Efficient Ethernet, IEEE 802.3ap based autonegotiation and KR startup, IEEE 802.1Qau (QCN) – Congestion Notification
    Management FeaturesJumper for standby power (default disabled), Network Controller Sideband Interface (NC-SI), NC-SI is not supported during standby with default setting, Preboot eXecution Environment (PXE) support, iSCSI remote boot support, Asset Management with thermal sensor
    Software / System Requirements
    OS SupportWindows Server, Linux RHEL, Linux SLES, Linux Ubuntu, Linux CentOS, FreeBSD, VMware, OpenFabrics Enterprise Distribution (OFED), OpenFabrics Windows Distribution (WinOF-2)
    Power
    Power Consumption20 W
    Environmental Parameters
    Operating TemperatureOperating temperature: 0°C to 55°C (32°F to 131°F)
    Storage humidity: 90% non-condensing relative humidity at 35°C
    Storage temperature: -40°C to 65°C (-40°F to 149°F)
    Miscellaneous
    Compatible MotherboardsSupermicro motherboards with Super I/O Module slot
    Compliant StandardsRoHS Compliant 6/6
    Bracket1x BKT-0164L

    Warranty:3 years, 120 days advance replacement (doa)
    Coverage:Replacement or repair
    Average Service Time:Overnight replacement for 120 days, 2 weeks afterward
    E-mail:returnservices@wiredzone.com

    If you need Technical Support for this item please contact:

    Provider:Supermicro
    Type of Support:FULL
    Phone No.:408-503-8000
