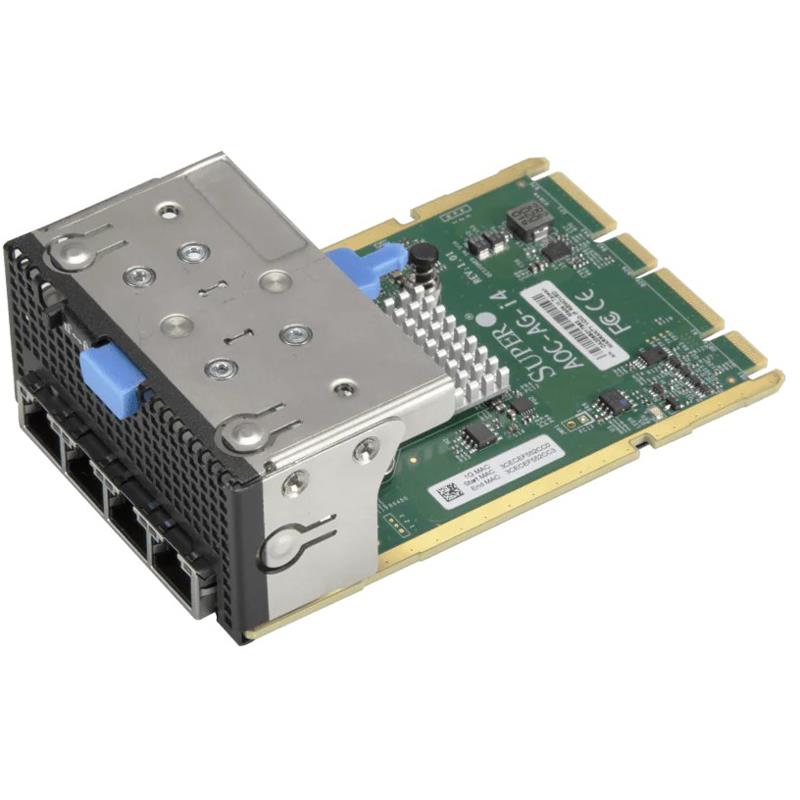

Supermicro AOC-AG-I4 i350 Gigabit Ethernet Adapter Card - 4-Port 1Gbps RJ45 Connectors Advanced I/O Module (AIOM) OCP 3.0

Reliable and proven Gigabit Ethernet technology
Asset Management Features with thermal sensor
Secure networking port for server remote management
4-port Gigabit Ethernet Adapter with a 0.5U height bracket

Gigabit Ethernet Adapters Card, Advanced I/O Module (AIOM) Form Factor, Based on Intel i350 GbE Controller, Quad RJ45 connectors with Speed up to 1Gbps, Bracket Included : 1U Height Bracket, RoHS Compliant 6/6, (AOC-AG-I4-O) - Can be ordered in bundle with Supermicro System ONLY

Advanced I/O Module (AIOM) Gigabit Ethernet Adapters

The Supermicro Advanced I/O Module (AIOM) is the latest form factor designed to provide a wide range of networking options as well as other I/O technologies. The GbE adapter AOC-AG-i4(M) is the most flexible and scalable GbE solution providing 4 RJ45 ports. Based on the Intel network controller i350, and with performance-enhancing features, power management technologies, the AOC-AG-i4(M) provides a quality networking choice for datacenters while reducing CPU utilization and power consumption. With the added NC-SI feature, this adapter also functions as a secure networking port for server remote management.

Key Features

Advanced I/O Module (AIOM) Form Factor
4x 1Gbps ports with RJ45 Connectors
Intel i350 GbE controller
Energy Efficient Ethernet (EEE)
Reliable and proven Gigabit Ethernet technology
Asset Management Features with thermal sensor
NC-SI for Remote Management

Extra Specifications for Supermicro AOC-AG-I4 i350 Gigabit Ethernet Adapter Card - 4-Port 1Gbps RJ45 Connectors Advanced I/O Module (AIOM) OCP 3.0

Main Specifications
Device Type	Ethernet Adapter Card
Form Factor	Advanced I/O Module (AIOM)
Dimensions (WxDxH)	PCB dimensions: 76mm x 115mm (W x D)
Connectivity
Connectors	4x 1Gbps ports: 2x RJ45 Connectors
Networking
Controller Type	Intel i350 GbE Controller
Virtualization Features	PC-SIG SR-IOV support, VM to VM Packet forwarding (Packet Loopback), Flexible Port Partitioning, IEEE 802.1q VLAN support, IEEE 802.1q advanced packet filtering, Jumbo Frames support
Performance	TCP/UDP, IPv4 and IPv6 checksum offloads to improve CPU usage, Low Latency Interrupts, Tx TCP segmentation offload (IPv4, IPv6) increases throughput and lowers processor usage, Receive Side Scaling (RSS) for Windows environment, Scalable I/O for Linux environments, Intelligent interrupt generation
Management Features	Preboot eXecution Environment (PXE) support, iSCSI Remote Boot Support, Asset Management support on Supermicro platforms, NC-SI for remote management
Power Management and Efficiency	Energy Efficient Ethernet (EEE), DMA Coalescing reduces platform power consumption, PCI Express Active State Power Management (ASPM), LAN disable function, Low Power Link Up – Link Speed Control
Power
Power Consumption	4.4W
Software / System Requirements
OS Supports	Windows Server, RedHat Linux, SUSE Linux, FreeBSD, UEFI, VMWare
Environmental Parameters
Operating Temperature	Storage temperature: -40°C to 70°C (-40°F to 158°F)
	Storage humidity: 90% non-condensing relative humidity at 35°C
Miscellaneous
Compliant Standards	RoHS Compliant 6/6
Bracket	1x BKT-0177L

Warranty:	3 years, 120 days advance replacement (doa)
Coverage:	Replacement or repair
Average Service Time:	Overnight replacement for 120 days, 2 weeks afterward
E-mail:	returnservices@wiredzone.com

If you need Technical Support for this item please contact:
Provider:	Supermicro
Type of Support:	FULL
Phone No.:	408-503-8000
URL:	Click here for Manufacturer Website
