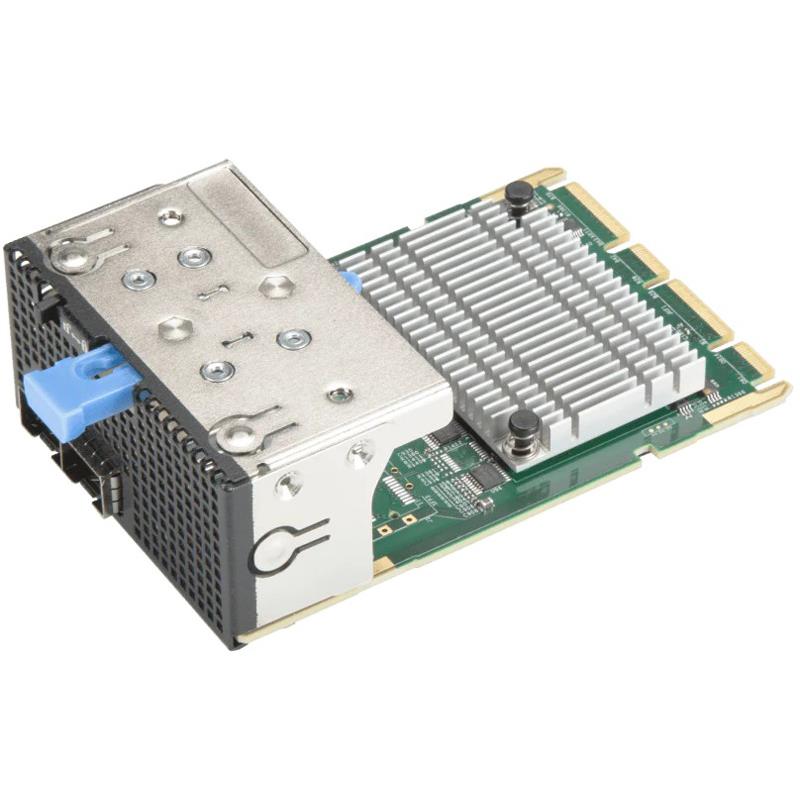

Supermicro AOC-ATG-i2S X710-BM2 10GbE Ethernet Adapter Card 2x 10Gbps Ports With SFP+ Connectors Advanced I/O Module (AIOM) OCP 3.0

Dual 10Gbps ports with SFP+ connectors
Advanced I/O Module (AIOM) Form Factor
Network Virtualization: VXLAN and NVGRE
Supports both Direct Attach Copper and Fiber Cables

10GbE Ethernet Adapter Card, Advanced I/O Module (AIOM) Form Factor, Based on Intel X710-BM2 controller, Dual SFP+ connectors with Speed up to 10Gbps per port, Bracket Included : 1U Height Bracket, RoHS Compliant 6/6, (AOC-ATG-I2S-O)

The Supermicro Advanced I/O Module (AIOM) is the latest form factor designed to provide a wide range of networking options as well as other I/O technologies. The 10GbE adapter AOC-ATG-i2SM is a flexible and scalable 10GbE solution providing 2 SFP+ ports. Based on Intel X710-BM2 network controller with performance-enhancing features and power management technologies, the AOC-ATG-i2SM provides a quality networking choice for data centers while reducing CPU utilization and power consumption. With the added NC-SI feature, this adapter also can function as a secure networking port for server remote management.

Advanced I/O Module (AIOM) Form Factor
2x 10Gbps ports with SFP+ connectors
Intel X710-BM2 Ethernet Controller
Network Virtualization: VXLAN and NVGRE
Intel Ethernet Flow Director
Data Plane Developer Kit for efficient packet processing (DPDK)
Asset Management Features
NC-SI for Remote Management
Supports both Direct Attach Copper and Fiber Cables

Extra Specifications for Supermicro AOC-ATG-i2S X710-BM2 10GbE Ethernet Adapter Card 2x 10Gbps Ports With SFP+ Connectors Advanced I/O Module (AIOM) OCP 3.0

Main Specifications
Device Type	Network adapter - 2 ports
Interface	PCI Express 3.0 x8
Form Factor	Advanced I/O Module (AIOM)
Dimensions (WxDxH)	PCB dimensions: 76mm x 115mm (W x D)
Networking
Controller Type	Intel X710-BM2
Data Transfer Rate	10 Gbps
Virtualization Features	Virtual Machine Devices queues (VMDq), Single-Root I/O Virtualization (SR-IOV), VLAN, VXLAN and NVGRE, GENEVE
Management Features	Asset Management support with thermal sensor, NC-SI for remote management, PXE remote boot, iSCSI remote boot
Connectivity
Connectors	2x SFP+
Expansion / Connectivity
Expansion / Connectivity	2x SFP+ connectors with speed up to 10Gbps per port
Power
Power Consumption	ACPI compliant power management, PCI Express Active State Power Management (ASPM), Energy Efficient Ethernet (IEEE 802.3az)
Software / System Requirements
OS Support	Windows Server, Linux RHEL, Linux SLES, Linux Ubuntu, Linux CentOS, FreeBSD, VMware
Environmental
Operating Environment	Storage humidity: 90% non-condensing relative humidity at 35°C
	Storage condition: -40°C to 70°C (-40°F to 158°F)
Miscellaneous
Bracket	1x BKT-0171L
Compliant Standards	RoHS Compliant 6/6

Warranty:	3 years, 120 days advance replacement (doa)
Coverage:	Replacement or repair
Average Service Time:	Overnight replacement for 120 days, 2 weeks afterward
E-mail:	returnservices@wiredzone.com

If you need Technical Support for this item please contact:
Provider:	Supermicro
Type of Support:	FULL
Phone No.:	408-503-8000
URL:	Click here for Manufacturer Website
