- Supermicro AOC-ATG-i4S XL710-BM1 10GbE Ethernet Adapter Card 4-Port SFP+ Connectors Advanced I/O Module (AIOM) OCP 3.0 1U Height Bracket

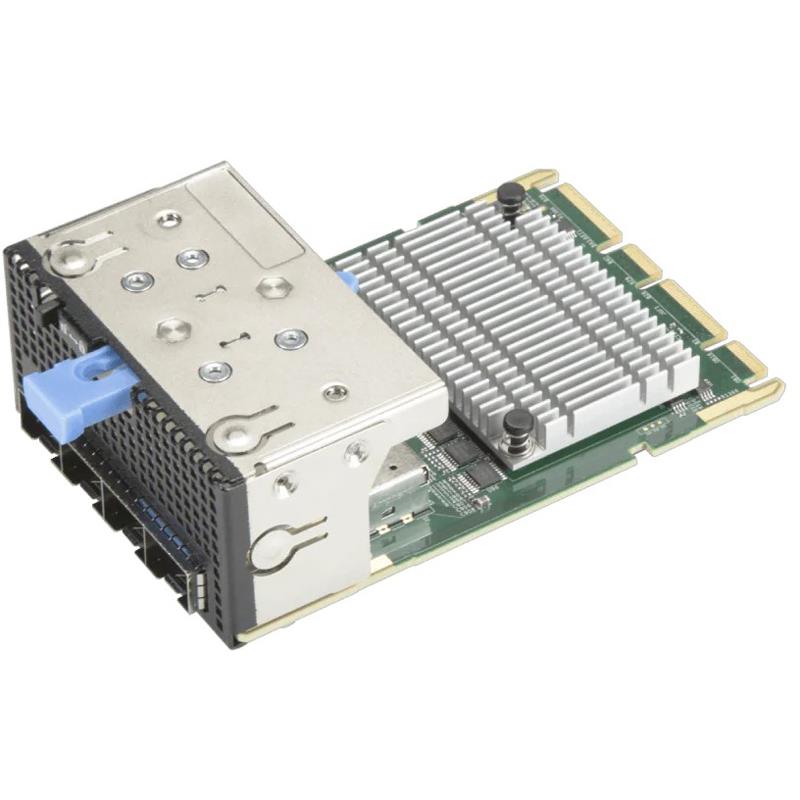

Supermicro AOC-ATG-i4S XL710-BM1 10GbE Ethernet Adapter Card 4-Port SFP+ Connectors Advanced I/O Module (AIOM) OCP 3.0 1U Height Bracket
Intel XL710-BM1 Ethernet Controller
4x 10Gbps ports with SFP+ connectors
Advanced I/O Module (AIOM) Form Factor
Network Virtualization: VXLAN and NVGRE
10GbE Ethernet Adapter Card, Advanced I/O Module (AIOM) Form Factor, Based on Intel XL710-BM1 controller, Quad SFP+ connectors with Speed up to 10Gbps per port, Bracket Included : 1U Height Bracket, RoHS Compliant 6/6, (AOC-ATG-I4S-O)
Advanced I/O Module (AIOM) 10GbE Ethernet Adapter
The Supermicro Advanced I/O Module (AIOM) is the latest form factor designed to provide a wide range of networking options as well as other I/O technologies. The 10GbE adapter AOC-ATG-i4S(M) is a flexible and scalable 10GbE solution providing 4 SFP+ ports. Based on the Intel® XL710-BM1 network controller with performance-enhancing features and power management technologies, the AOC-ATG-i4S(M) provides a quality networking choice for data centers while reducing CPU utilization and power consumption. With the added NC-SI feature, this adapter can also function as a secure networking port for server remote management.
Key Features
Advanced I/O Module (AIOM) Form Factor
4x 10Gbps ports with SFP+ connectors
Intel XL710-BM1 Ethernet Controller
Network Virtualization: VXLAN and NVGRE
Intel Ethernet Flow Director
Data Plane Developer Kit for efficient packet processing (DPDK)
Asset Management Features
NC-SI for Remote Management
Supports both Direct Attach Copper and Fiber Cables
Extra Specifications for Supermicro AOC-ATG-i4S XL710-BM1 10GbE Ethernet Adapter Card 4-Port SFP+ Connectors Advanced I/O Module (AIOM) OCP 3.0 1U Height Bracket
| Main Specifications | ||
| Device Type | 10 Gigabit Ethernet Adapter | |
| Form Factor | Advanced I/O Module (AIOM) | |
| Dimensions (WxDxH) | PCB dimensions: 76mm x 115mm (W x D) | |
| Connectivity | ||
| Connectors | 4x SFP+ connectors with speed up to 10Gbps per port | |
| Networking | ||
| Controller Type | Intel XL710-BM1 Ethernet Controller | |
| Networking Features | IEEE 802.3ad, 802.1AX Link Aggregation, IEEE 802.1Q VLAN, MSI and MSI-X support, Intel Flow Director, Jumbo Frames (up to 9.5KB), IEEE 802.3x Flow Control, Teaming support, Checksum Offload (IPv4/IPv6, SCTP, TCP, UDP, Tx/Rx) | |
| Virtualization Features | Virtual Machine Devices queues (VMDq), Single-Root I/O Virtualization (SR-IOV), VLAN, VXLAN and NVGRE, GENEVE | |
| Management Features | Asset Management support with thermal sensor, NC-SI for remote management, PXE remote boot, iSCSI remote boot | |
| Power | ||
| Power Savings | ACPI compliant power management, PCI Express Active State Power Management (ASPM), Energy Efficient Ethernet (IEEE 802.3az) | |
| Power Consumption | 7W | |
| Software / System Requirements | ||
| OS Supports | Windows Server, Linux RHEL, Linux SLES, Linux Ubuntu, Linux CentOS, FreeBSD, VMware | |
| Environmental Parameters | ||
| Operating Temperature | Storage humidity: 90% non-condensing relative humidity at 35°C | |
| Storage condition: -40°C to 70°C (-40°F to 158°F) | ||
| Miscellaneous | ||
| Compliant Standards | RoHS Compliant 6/6 | |
| Cables Required | SFP+ direct attach twin-axial copper cables up to 5m, Fiber-optic cables (with required optional SFP+ transceivers) | |
| Bracket | 1x BKT-0158L | |
| Warranty: | 3 years, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
