- Supermicro AOC-AG-I2 i350 25GbE Ethernet Adapter Card - 2x 1Gbps Ports With RJ45 Connectors Advanced I/O Module (AIOM) OCP 3.0 Form Factor

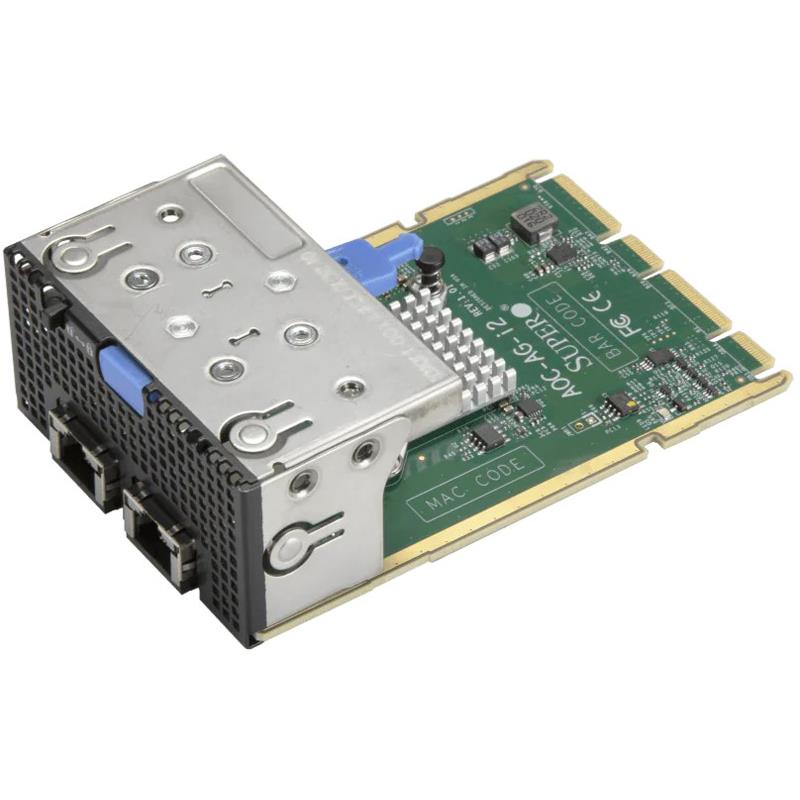

Supermicro AOC-AG-I2 i350 25GbE Ethernet Adapter Card - 2x 1Gbps Ports With RJ45 Connectors Advanced I/O Module (AIOM) OCP 3.0 Form Factor
2x 1Gbps ports with RJ45 Connectors
Advanced I/O Module (AIOM) Form Factor
Secure networking port for server remote management
Gigabit Ethernet Adapters Card, Advanced I/O Module (AIOM) Form Factor, Based on Intel i350 GbE Controller, Dual RJ45 connectors with Speed up to 1Gbps, Bracket Included : 1U Height Bracket, RoHS Compliant 6/6, (AOC-AG-I2-O) - Can be ordered in bundle with Supermicro System ONLY
Advanced I/O Module (AIOM) Gigabit Ethernet Adapters
The Supermicro Advanced I/O Module (AIOM) is the latest form factor designed to provide a wide range of networking options as well as other I/O technologies. The GbE adapter AOC-AG-i2(M) is the most flexible and scalable GbE solution providing 2 RJ45 ports. Based on Intel® network controller i350, and with performance-enhancing features, power management technologies, the AOC-AG-i2(M) provides a quality networking choice for datacenters while reducing CPU utilization and power consumption. With the added NC-SI feature, this adapter also functions as a secure networking port for server remote management.
Key Features
Advanced I/O Module (AIOM) Form Factor
2x 1Gbps ports with RJ45 Connectors
Intel i350 GbE controller
Energy Efficient Ethernet (EEE)
Reliable and proven Gigabit Ethernet technology
Asset Management Features with thermal sensor
NC-SI for Remote Management
Extra Specifications for Supermicro AOC-AG-I2 i350 25GbE Ethernet Adapter Card - 2x 1Gbps Ports With RJ45 Connectors Advanced I/O Module (AIOM) OCP 3.0 Form Factor
| Main Specifications | ||
| Device Type | Gigabit Ethernet Adapter | |
| Form Factor | Advanced I/O Module (AIOM) | |
| Dimensions (WxDxH) | PCB dimensions: 76mm x 115mm (W x D) | |
| Connectivity | ||
| Connectors | 2x 1Gbps ports with RJ45 Connectors | |
| Networking | ||
| Networking Features | IEEE 802.3 auto-negotiation for speed, duplex, and flow control, IEEE 802.3x and 802.3z compliant flow control support, Automatic cross-over detection function (MDI/MDI-X), 1Gb/s Ethernet IEEE 802.3, 802.3u, 802.3ab PHY specifications Compliant | |
| Virtualization Features | PC-SIG SR-IOV support, VM to VM Packet forwarding (Packet Loopback), Flexible Port Partitioning, IEEE 802.1q VLAN support, IEEE 802.1q advanced packet filtering, Jumbo Frames support | |
| Performance | TCP/UDP, IPv4 and IPv6 checksum offloads to improve CPU usage, Low Latency Interrupts, Tx TCP segmentation offload (IPv4, IPv6) increases throughput and lowers processor usage, Receive Side Scaling (RSS) for Windows environment, Scalable I/O for Linux environments, Intelligent interrupt generation | |
| Management Features | Preboot eXecution Environment (PXE) support, iSCSI Remote Boot Support, Asset Management support on Supermicro platforms, NC-SI for remote management | |
| Power Management and Efficiency | Energy Efficient Ethernet (EEE), DMA Coalescing reduces platform power consumption, PCI Express Active State Power Management (ASPM), LAN disable function, Low Power Link Up – Link Speed Control | |
| Software / System Requirements | ||
| OS Supports | Windows Server, RedHat Linux, SUSE Linux, FreeBSD, UEFI, VMWare | |
| Environmental Parameters | ||
| Operating Temperature | Storage temperature: -40°C to 70°C (-40°F to 158°F) | |
| Storage humidity: 90% non-condensing relative humidity at 35°C | ||
| Miscellaneous | ||
| Compliant Standards | RoHS Compliant 6/6 | |
| Bracket | 1x BKT-0167L | |
