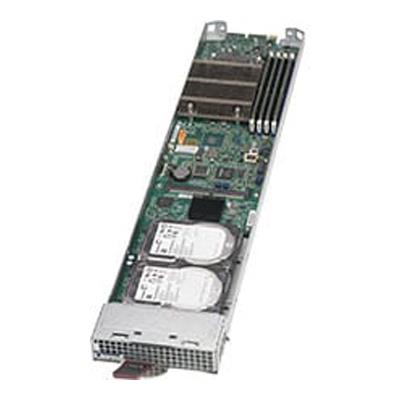

- Supermicro MBS-314E-6119M MicroBlade 3U Barebone Single Intel Xeon E-2100 / E-2200 Processors
Supermicro MBS-314E-6119M MicroBlade 3U Barebone Single Intel Xeon E-2100 / E-2200 Processors
• 196 UP nodes per 42U Rack
• 28/14 UP nodes in 6U/3U
Barebone 3U Rackmount SuperServer Per Node: Intel Xeon E-2100 / E-2200 Processors, Intel C246 chipset, Supports Up to 128GB DDR4-2666MHz VLP UDIMM in 4 DIMM slots, 1x Internal 2x 2.5in NVMe/SATA3 drives, M.2 Key: M-Key (M.2 Form Factor: 2280/22110), 1x SATA DOM, Network Controller: Dual 1GbE LAN ports, IPMI v.2.0 via Chassis Management Module - (MBS-314E-6119M + MBD-B2SC1-CPU)
1. Socket H4 (LGA 1151) supports Intel® Xeon® processor E-2100 / E-2200 series
2. Up to 128GB ECC VLP UDIMM DDR4-2666MHz in 4 DIMM slots
3. Up to 2x 2.5" NVMe/SATA3 drives M.2 Interface: 1 PCI-E 3.0 x4 / SATA3 M.2 Form Factor: 2280/22110 M.2 Key: M-Key
4. Dual 1GbE LAN ports via Intel i350 Dedicated LAN supports IPMI 2.0
5. Aspeed AST2500
Extra Specifications for Supermicro MBS-314E-6119M MicroBlade 3U Barebone Single Intel Xeon E-2100 / E-2200 Processors
| Switch Module | ||
| MBM-GEM-004 | Broadcom BCM56151 1GbE Switch | |
| 4x 10Gbps SFP+ and 8x 1Gbps RJ45 uplinks | ||
| 40x 1Gbps downlinks | ||
| 1 Console port | ||
| Details | See Details | |
| Central Management Module (CMM) | ||
| MBM-CMM-FIO | CMM with Front IO support | |
| Details | See Details | |
| Processor (per node) | ||
| CPU | Single Socket H4 (LGA 1151), CPU TDP support up to 95W | |
| Support Intel® Xeon® processor E-2100 / E-2200 series | ||
| Cores | Up to 8 cores, 12 threads | |
| System Memory (per node) | ||
| Memory Capacity | 4 DDR4 DIMM sockets | |
| Supports up to 128GB DDR4 ECC VLP UDIMM | ||
| Memory Type | 2666MHz ECC DDR4 UDIMM | |
| DIMM Sizes | 32GB | |
| Memory Voltage | 1.2 V | |
| Error Detection | Corrects single-bit errors | |
| Detects double-bit errors (using ECC memory) | ||
| On-Board Devices (per node) | ||
| Chipset | Intel® C246 chipset | |
| Network Controllers | Dual 1GbE LAN ports | |
| IPMI | Support for Intelligent Platform Management Interface (IPMI) v.2.0 via Chassis Management Module (CMM) | |
| System BIOS | ||
| BIOS Type | 128Mb Flash EEPROM | |
| BIOS Features | SMBIOS 2.7.1 | |
| Plug and Play (PnP) | ||
| APM 1.2 | ||
| Dimensions | ||
| Height | 1.2" (30.48mm) | |
| Width | 4.94" (125.48mm) | |
| Depth | 23.2" (589.28mm) | |
| Weight | Gross Weight: 120.3 lbs (54.57 kg) | |
| Available Color | Silver Grey | |
| Front Panel | ||
| LEDs | Power LED | |
| UID / KVM LED | ||
| Network Activity LED | ||
| Fault LED | ||
| Drive Bays (per node) | ||
| Internal | 2x 2.5" NVMe/SATA3 drives | |
| M.2 | M.2 Key: M-Key | |
| M.2 Interface: 1 PCI-E 3.0 x4 | ||
| M.2 Form Factor: 2280/22110 | ||
| Others | 1x SATA DOM | |
| Input / Output | ||
| TPM | 1 TPM Header | |
| Operating Environment / Compliance | ||
| Environmental Spec. | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Operating Temperature: 10°C to 38°C (50°F to 100.4°F) | ||
| Electromagnetic Compatibility (EMC) | ||
| United States / Canada | FCC- Emissions (US) Verification | |
| Europe | EN55022 - Emissions | |
| EN55024 - Immunity | ||
| EN61000-3-2 - Harmonics | ||
| EN61000-3-3 - Voltage Flicker | ||
| CE - EMC Directive 89/336/EEC | ||
| Product SKUs | ||
| Product SKUs | ||
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Server Enclosure | MBE-314E-222 | 1 | [NR]Enterprise MicroBlade3U w/ 2x 2200W PSU | |
| MicroBlade Sled | MBI-6119M-T2N | 14 | Intel Coffee Lake E-2100 support up to 2x2.5 SATA/NVMe | |
| Switch | MBM-GEM-004 | 2 | Broadcom 1G switch for Microblade with 10G and 1G uplinks | |
| CMM | MBM-CMM-FIO | 1 | MicroBlade Chassis Management Module with Front IO support | |
| Heatsink / Retention | SNK-P1040V | 14 | Low Profile CPU Heat Sink for MicroBlade Server | |
| Software | SFT-OOB-LIC • | 14 | OOB Management Package (per node license) |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| TPM security module(optional, not included) | AOM-TPM-9670V | $ 52.00 | 1 | TPM module (Vertical) TPM 2.0 | ||
| TPM security module(optional, not included) | AOM-TPM-9671V | $ 52.00 | 0 | TPM module (Vertical) TPM 1.2. | ||
| SATA DOM | MEM-IDSAHM3A-016G | 1 | SATA3 DOM SH 3ME3 V2 16GB MLC w/ Pin8 VCC Horizontal | |||
| SATA DOM | MEM-IDSAHM3A-032G | 0 | SATA3 DOM SH 3ME3 V2 32GB MLC w/ Pin8 VCC Horizontal | |||
| SATA DOM | MEM-IDSAHM3A-064G | 0 | SATA3 DOM SH 3ME3 V2 64GB MLC w/ Pin8 VCC Horizontal | |||
| SATA DOM | MEM-IDSAHM3A-128G | 0 | SATA3 DOM SH 3ME3 V2 128GB MLC w/ Pin8 VCC Horizontal |
| Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 1 year, 2 weeks afterward |
