| Product SKUs |
| MicroBlade | MBI-310T-4C2 |
| Motherboard |
| Motherboard | MBD-B3ST1-CPU-001 |
| Processor |
| CPU | Single Socket H5 (LGA 1200), CPU TDP support up to 95W |
| Support Intel® Xeon® processor E-2300 series |
| Cores | Up to 8 cores, 16 threads |
| System Memory |
| Memory Capacity | 4 DDR4 DIMM sockets, Supports up to 128GB DDR4 ECC VLP UDIMM |
| DIMM Sizes | 32GB |
| Memory Voltage | 1.2 V |
| Error Detection | Corrects single-bit errors, Detects double-bit errors (using ECC memory) |
| Cache Memory |
| Memory Type | 3200MHz ECC DDR4 UDIMM |
| On-Board Devices |
| Chipset | Intel® C256 chipset |
| SAS | SAS3 (12Gbps) via Avago 3008 |
| Network Controllers | Dual 1GbE LAN ports |
| IPMI | Support for Intelligent Platform Management Interface (IPMI) v.2.0 via Chassis Management Module (CMM) |
| TPM | 1 TPM Header |
| System BIOS |
| BIOS Type | 128Mb Flash EEPROM |
| BIOS Features | SMBIOS 2.7.1, Plug and Play (PnP), APM 1.2 |
| Main Specifications |
| Dimensions (WxDxH) | 1.2" (30.48mm) x 4.94" (125.48mm) x 23.2" (589.28mm) |
| Weight | Gross Weight: 3.3 lbs (1.5 kg) |
| Enclosure Color | Silver Grey |
| Front Panel |

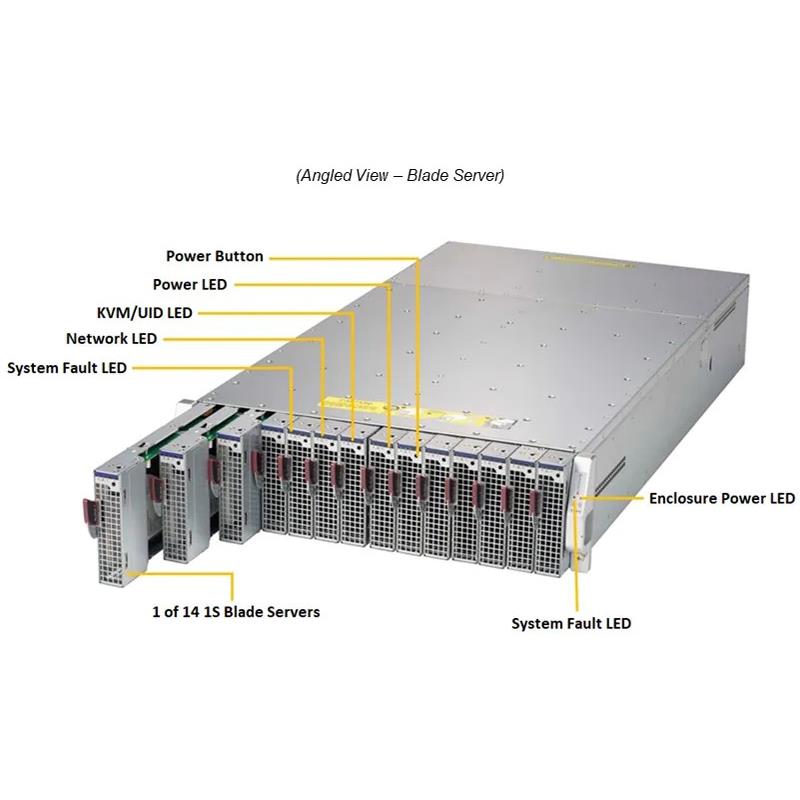

| LEDs | Power LED, UID / KVM LED, Network Activity LED, Fault LED |
| Expansion / Connectivity |
| M.2 | M.2 Key: M-Key |
| M.2 Form Factor: 2280/22110 |
| 2x 2.5" SAS3 (12Gbps) drives |
| M.2 Interface: 1 SATA3/NVMe (PCIe 3.0 from PCH) |
| Input / Output |
| DOM | 1x SATA DOM support |
| Environmental |
| Operating Environment | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Operating Temperature: 10°C to 38°C (50°F to 100.4°F) |
| Electromagnetic Compatibility (EMC) |
| United States / Canada | FCC- Emissions (US) Verification |
| Europe | EN55022 - Emissions, EN55024 - Immunity, EN61000-3-2 - Harmonics, EN61000-3-3 - Voltage Flicker, CE - EMC Directive 89/336/EEC |
