- Supermicro MBS-314E-310T MicroBlade 3U Barebone Single Intel Xeon E-2300 Processors

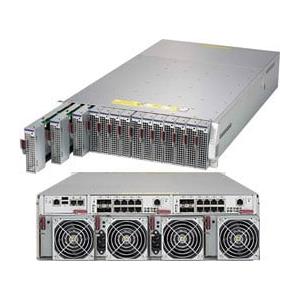

Supermicro MBS-314E-310T MicroBlade 3U Barebone Single Intel Xeon E-2300 Processors
• Cyber Security
• Cloud Service • Dedicated Hosting
• Cloud Service • Dynamic Front End Web
• Visual & Audio • Media Delivery Transcoding
Barebone 3U Rackmount SuperServer Per Node: Intel Xeon E-2300 Processors, Intel C256 chipset, Supports Up to 128GB DDR4-3200MHz VLP UDIMM in 4 DIMM slots, 1x Internal 2x 2.5in U.2 NVMe (7mm) drives, M.2 Key: M-Key (M.2 Form Factor: 2280/22110), 1x SATA DOM - (MBS-314E-310T + MBD-B3ST1-CPU-001)
To maintain quality and integrity, this product is sold only as a completely-assembled system (with minimum 14 CPUs, 56 DIMMs).
1. 196 UP nodes per 42U Rack
2. 14 UP nodes in 3U
3. Per blade supports Intel® Xeon® processor E-2300 series
4. Per blade support up to 128GB ECC VLP UDIMM
5. Per blade support up to 2x 2.5" U.2 NVMe (7mm) drives
6. Per System supports 10GbE LAN and two switch modules for redundancy
7. Per system supports Central Management Module
8. Front-loading nodes for easy and servicing
9. N+1 or N+N power redundancy with Titanium level efficiency (96%)
10. Out of Band (OOB) software management licenses
Extra Specifications for Supermicro MBS-314E-310T MicroBlade 3U Barebone Single Intel Xeon E-2300 Processors
| Product SKUs | ||
| Product SKUs | ||
| Switch Module | ||
| MBM-XEM-002+ | Broadcom BCM56846 10GbE Low Latency Switch | |
| 2x 40G, 4x 10G, and 1x 1G uplinks | ||
| 56x 10/1Gbps downlinks (MicroBlade) | ||
| 1 Console port, 1 USB port | ||
| Details | See Details | |
| Central Management Module (CMM) | ||
| MBM-CMM-FIO | CMM with Front IO support | |
| Details | See Details | |
| Processor (per node) | ||
| CPU | Single Socket H5 (LGA 1200), CPU TDP support up to 95W | |
| Support Intel® Xeon® processor E-2300 series | ||
| Cores | Up to 8 cores, 16 threads | |
| System Memory (per node) | ||
| Memory Capacity | 4 DDR4 DIMM sockets | |
| Supports up to 128GB DDR4 ECC VLP UDIMM | ||
| Memory Type | 3200MHz ECC DDR4 UDIMM | |
| DIMM Sizes | 32GB | |
| Memory Voltage | 1.2 V | |
| Error Detection | Corrects single-bit errors | |
| Detects double-bit errors (using ECC memory) | ||
| On-Board Devices (per node) | ||
| Chipset | Intel® C256 chipset | |
| Network Controllers | Dual 10GbE LAN ports | |
| IPMI | Support for Intelligent Platform Management Interface (IPMI) v.2.0 via Chassis Management Module (CMM) | |
| System BIOS | ||
| BIOS Type | 128Mb Flash EEPROM | |
| BIOS Features | SMBIOS 2.7.1 | |
| Plug and Play (PnP) | ||
| APM 1.2 | ||
| Dimensions | ||
| Height | 5.215" (132.5mm) | |
| Width | 17.67" (449mm) | |
| Depth | 36.10" (917mm) | |
| Weight | Gross Weight: 139.20 lbs (63.14 kg) | |
| Available Colors | Silver Grey | |
| Front Panel | ||
| LEDs | Power LED | |
| UID / KVM LED | ||
| Network Activity LED | ||
| Fault LED | ||
| Drive Bays (per node) | ||
| Internal | 2x 2.5" U.2 NVMe (7mm) drives | |
| M.2 | M.2 Key: M-Key | |
| M.2 Interface: 1 PCI-E 3.0 x4 | ||
| M.2 Form Factor: 2280/22110 | ||
| Others | 1x SATA DOM | |
| Input / Output | ||
| TPM | 1 TPM Header | |
| Operating Environment / Compliance | ||
| Environmental Spec. | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Operating Temperature: 10°C to 38°C (50°F to 100.4°F) | ||
| Electromagnetic Compatibility (EMC) | ||
| United States / Canada | FCC- Emissions (US) Verification | |
| Europe | EN55022 - Emissions | |
| EN55024 - Immunity | ||
| EN61000-3-2 - Harmonics | ||
| EN61000-3-3 - Voltage Flicker | ||
| CE - EMC Directive 89/336/EEC | ||
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Server Enclosure | MBE-314E-222 | 1 | Enterprise MicroBlade3U w/ 2x 2200W PSU | |
| MicroBlade Sled | MBI-310T-4T2N | 14 | Xeon E-2300 RKT support up to 2x 2.5" SATA/NVMe HDD | |
| Switch | MBM-XEM-002+ | 2 | 10G Blade Switch with 2x40G, 4x10G, and 1x1G uplink ports | |
| CMM | MBM-CMM-FIO | 1 | MicroBlade Chassis Management Module with Front IO support | |
| Heatsink / Retention | SNK-P1040V | 14 | Low Profile CPU Heat Sink for MicroBlade Server | |
| Software | SFT-OOB-LIC • | 14 | OOB Management Package (per node license) |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| TPM security module(optional, not included) | AOM-TPM-9670V | $ 52.00 | 1 | TPM module (Vertical) TPM 2.0 | ||
| TPM security module(optional, not included) | AOM-TPM-9671V | $ 52.00 | 0 | TPM module (Vertical) TPM 1.2. | ||
| SATA DOM | - | 0 | Supermicro SATA DOM Solutions [Details] | |||
| Heatsink / Retention | SNK-P1040V | 0 | Low Profile Proprietary Passive CPU Heat Sink for B2SC1 Associated Micro Blade Servers | |||
| SATA DOM | MEM-IDSAHT1-032G | 1 | IND SATA3 DOM SH 3TE7 32GB 3D TLC w/Pin8 VCC Horizontal | |||
| SATA DOM | MEM-IDSAHT1-064G | 0 | IND SATA3 DOM SH 3TE7 64GB 3D TLC w/Pin8 VCC Horizontal | |||
| SATA DOM | MEM-IDSAHT1-128G | 0 | IND SATA3 DOM SH 3TE7 128GB 3D TLC w/Pin8 VCC Horizontal | |||
| SATA DOM | MEM-IDSAHT1-256G | 0 | IND SATA3 DOM SH 3TE7 256GB 3D TLC w/Pin8 VCC Horizontal | |||
| SATA DOM | MEM-IDSAHM3A-016G | 0 | IND SATA3 DOM SH 3TE7 32GB 3D TLC w/Pin8 VCC Horizontal | |||
| SATA DOM | MEM-IDSAHM3A-032G | 0 | IND SATA3 DOM SH 3TE7 64GB 3D TLC w/Pin8 VCC Horizontal | |||
| SATA DOM | MEM-IDSAHM3A-064G | 0 | IND SATA3 DOM SH 3TE7 128GB 3D TLC w/Pin8 VCC Horizontal | |||
| SATA DOM | MEM-IDSAHM3A-128G | 0 | IND SATA3 DOM SH 3TE7 256GB 3D TLC w/Pin8 VCC Horizontal | |||
| SATA DOM | - | 0 | SATA3 DOM SH 3ME3 V2 16GB MLC w/ Pin8 VCC Horizontal | |||
| SATA DOM | - | 0 | SATA3 DOM SH 3ME3 V2 32GB MLC w/ Pin8 VCC Horizontal | |||
| SATA DOM | - | 0 | SATA3 DOM SH 3ME3 V2 64GB MLC w/ Pin8 VCC Horizontal | |||
| SATA DOM | - | 0 | SATA3 DOM SH 3ME3 V2 128GB MLC w/ Pin8 VCC Horizontal | |||
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
| Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 1 year, 2 weeks afterward |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | Supermicro |
| Type of Support: | FULL |
| Phone No.: | 408-503-8000 |
| URL: | Click here for Manufacturer Website |
