| Motherboard |
| Motherboard | Super X12DSC-A6 |
| Processor |
| CPU | 3rd Gen Intel® Xeon® Scalable processors |
| Dual Socket P+ (LGA-4189) |
| Support CPU TDP 120-205W |
| Cores | Up to 38C/76T; Up to 57MB Cache |
| System Memory |
| Memory | Memory Capacity: 16 DIMM slots |
| Memory Type: 3200MHz ECC DDR4 RDIMM;LRDIMM |
| Up to 4TB: 16x 256 GB DRAM |
| Memory Voltage | 1.2 V |
| Error Detection | ECC |
| On-Board Devices |
| Chipset | Intel® C621A |
| Network Connectivity | 2x 10GbE BaseT with Intel® X550 |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Input / Output |
| LAN | 1 RJ45 Dedicated IPMI LAN port |
| USB | 2 USB 3.0 port(s) (2 Rear_USB) |
| Video | 1 VGA port(s) |
| Serial Port | 1 COM Port(s) (1 rear) |
| DOM | 2 Super DOM (Disk on Module) port |
| System BIOS |
| BIOS Type | AMI 128MB SPI Flash EEPROM |
| Management |
| Software | Watch Dog |
| NMI |
| SuperDoctor® 5 |
| IPMI 2.0 |
| SUM |
| Power Configurations | Power-on mode for AC power recovery |
| ACPI Power Management |
| PC Health Monitoring |
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory |
| 4+1 Phase-switching voltage regulator |
| FAN | Status monitor for speed control |
| Pulse Width Modulated (PWM) fan connectors |
| Fans with tachometer monitoring |
| Temperature | Monitoring for CPU and chassis environment |
| Thermal Control for fan connectors |
| Chassis |
| Form Factor | 2U Rackmount |
| Model | CSE-826STS-R1K62P1 |
| Dimensions and Weight |
| Height | 3.5" |
| Width | 17.2" |
| Depth | 34" |
| Package | 12" (H) x 29" (W) x 52" (D) |
| Weight | Net Weight: 52 lbs (23.59 kg) |
| Gross Weight: 74.5 lbs (33.79 kg) |
| Available Color | Silver |
| Front Panel |
| Buttons | Power On/Off |
| LEDs | HDD activity |
| Power status |
| Network activity |
| System information (overheat/UID) |
| Drive Bays / Storage |
| Hot-swap | 24x 3.5" hot-swap SATA3/SAS2 drive bays |
| M.2 | 2 M.2 NVMe OR 2 M.2 SATA3 |
| System Cooling |
| Fans | 5 Heavy Duty 8cm Fan(s) |
| Power Supply |
| Dimension (W x H x L) | 73.5 x 40 x 203 mm |
| AC Input | 1000W: 100-127Vac / 50-60Hz |
| 1600W: 200-240Vac / 50-60Hz |
| +12V | Max: 83A / Min: 0A (100Vac-127Vac) |
| Max: 133A / Min: 0A (200Vac-240Vac) |
| 12V SB | Max: 2.1A / Min: 0A |
| Output Type | Gold Finger Connector |
| Certification | Titanium Level |
| Operating Environment |
| RoHS | RoHS Compliant |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) |
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) |
| Operating Relative Humidity: 8% to 90% (Non-Condensing) |
| Non-operating Relative Humidity: 5% to 95% (Non-Condensing) |
| Product SKUs |

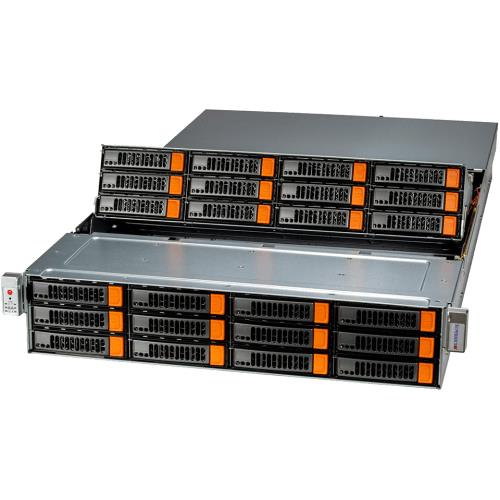

| Product SKUs | SSG-620P-E1CR24H |
| Expansion Slots |
| PCI-Express (PCIe) | 1 PCIe 4.0 x16 AIOM slot(s) |
| 2 PCIe 4.0 x16 LP slot(s) |
