- Supermicro SSG-620P-E1CR24L Storage 2U Barebone Dual 3rd Gen Intel Xeon Scalable processors
Supermicro SSG-620P-E1CR24L Storage 2U Barebone Dual 3rd Gen Intel Xeon Scalable processors
• Enterprise Server
• iSCSI SAN
• HPC, Data Center
• Database Processing & Storage
• Corporate Database
• Appliance Optimized Storage Building Blocks
Barebone 2U Rackmount SuperServer 3rd Gen Intel Xeon Scalable processors, Intel C621A, Supports Up to 4TB DDR4-3200MHz L/RDIMM in 16 DIMM slots, On-Board : Controller via Broadcom 3808 (HBA mode), 24x 3.5in Hot-Swap SATA3/SAS3 drive bays, 2 M.2 NVMe OR 2 M.2 SATA3, Network Controller: 2x 10GbE Base-T, 1 Dedicated IPMI LAN port, 2 SuperDOM (Disk on Module) port, 1600W Power Supply, (SSG-620P-E1CR24L + X12DSC-A6)
To maintain quality and integrity, this product is sold only as a completely-assembled system (with Minimum 2 CPUs, 2 DIMMs and 6 Storage Devices HDD/HDS/M.2, and 1 NIC).
1. Dual socket 3rd Gen Intel® Xeon® Scalable processors, up to 72 Cores Per Node
2. 16 ECC DDR4-3200: LRDIMM/RDIMM

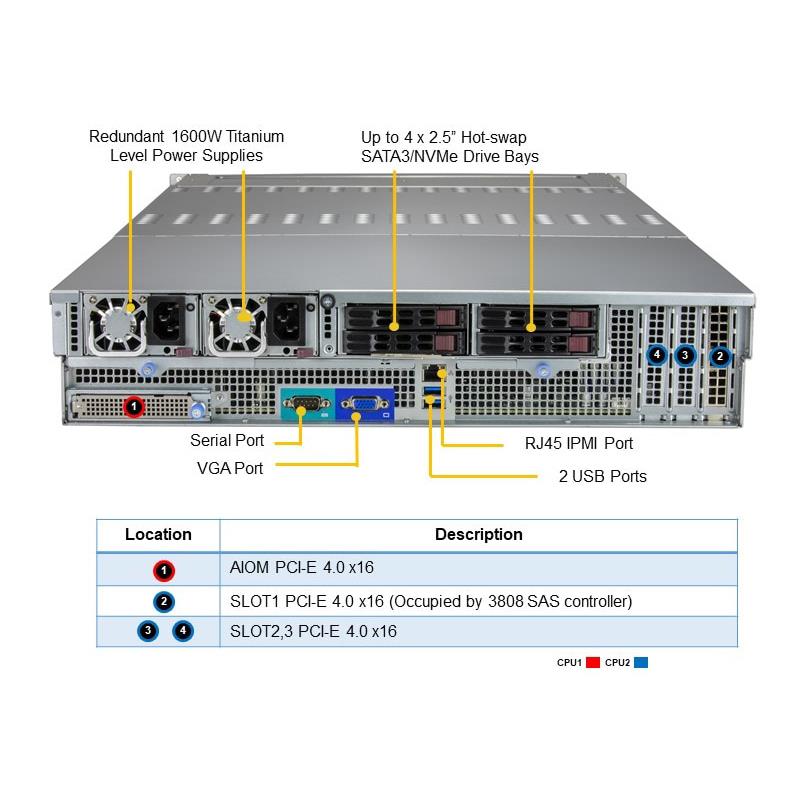

3. 3 x PCIe 4.0 x16 Slots Dedicated PCIe 4.0 AIOM slot
4. Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN per node
5. 24 3.5" Hot-swap SAS3/SATA3 drives, 4 x Rear SATA/NVMe Slots, 2x SATA/NVMe M.2 (form factor: 2280)
6. 5x 8cm hot-swap counter-rotate redundant PWM cooling fans
7. 1600W Redundant Power Supplies Titanium Level (96%)
8. HBA Controller support via Broadcom® 3808
Extra Specifications for Supermicro SSG-620P-E1CR24L Storage 2U Barebone Dual 3rd Gen Intel Xeon Scalable processors
| Motherboard | ||
| Motherboard | Super X12DSC-A6 | |
| Processor | ||
| CPU | 3rd Gen Intel® Xeon® Scalable processors | |
| Dual Socket P+ (LGA-4189) | ||
| Support CPU TDP 120-205W | ||
| Cores | Up to 38C/76T; Up to 57MB Cache | |
| System Memory | ||
| Memory | Memory Capacity: 16 DIMM slots | |
| Memory Type: 3200MHz ECC DDR4 RDIMM;LRDIMM | ||
| Up to 4TB: 16x 256 GB DRAM | ||
| Memory Voltage | 1.2 V | |
| Error Detection | ECC | |
| On-Board Devices | ||
| Chipset | Intel® C621A | |
| Network Connectivity | 2x 10GbE BaseT with Intel® X550 | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Input / Output | ||
| LAN | 1 RJ45 Dedicated IPMI LAN port | |
| USB | 2 USB 3.0 port(s) (2 Rear_USB) | |
| Video | 1 VGA port(s) | |
| Serial Port | 1 COM Port(s) (1 rear) | |
| DOM | 2 Super DOM (Disk on Module) port | |
| System BIOS | ||
| BIOS Type | AMI 128MB SPI Flash EEPROM | |
| Management | ||
| Software | Watch Dog | |
| NMI | ||
| SuperDoctor® 5 | ||
| IPMI 2.0 | ||
| SUM | ||
| Power Configurations | Power-on mode for AC power recovery | |
| ACPI Power Management | ||
| PC Health Monitoring | ||
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory | |
| 4+1 Phase-switching voltage regulator | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for fan connectors | ||
| Chassis | ||
| Form Factor | 2U Rackmount | |
| Model | CSE-826STS-R1K62P1 | |
| Dimensions and Weight | ||
| Height | 3.5" | |
| Width | 17.2" | |
| Depth | 34" | |
| Package | 12" (H) x 29" (W) x 52" (D) | |
| Weight | Net Weight: 52 lbs (23.59 kg) | |
| Gross Weight: 74.5 lbs (33.79 kg) | ||
| Available Color | Silver | |
| Front Panel | ||
| Buttons | Power On/Off | |
| LEDs | HDD activity | |
| Power status | ||
| Network activity | ||
| System information (overheat/UID) | ||
| Drive Bays / Storage | ||
| Hot-swap | 24x 3.5" hot-swap SATA3/SAS3 drive bays | |
| M.2 | 2 M.2 NVMe OR 2 M.2 SATA3 | |
| System Cooling | ||
| Fans | 5 Heavy Duty 8cm Fan(s) | |
| Power Supply | ||
| Dimension (W x H x L) | 73.5 x 40 x 203 mm | |
| AC Input | 1000W: 100-127Vac / 50-60Hz | |
| 1600W: 200-240Vac / 50-60Hz | ||
| +12V | Max: 83A / Min: 0A (100Vac-127Vac) | |
| Max: 133A / Min: 0A (200Vac-240Vac) | ||
| 12V SB | Max: 2.1A / Min: 0A | |
| Output Type | Gold Finger Connector | |
| Certification | Titanium Level | |
| Operating Environment | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
| Operating Relative Humidity: 8% to 90% (Non-Condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (Non-Condensing) | ||
| Product SKUs | ||
| Product SKUs | SSG-620P-E1CR24L | |
| Expansion Slots | ||
| PCI-Express (PCIe) | 1 PCIe 4.0 x16 AIOM slot(s) | |
| 2 PCIe 4.0 x16 LP slot(s) | ||
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X12DSC-A6 | 1 | Super X12DSC-A6 Motherboard | |
| Motherboard / Chassis | CSE-826STS-R1K62P1 | 1 | 2U Chassis | |
| Add-on Card / Module | AOC-S3808L-L8IT-P | 1 | 8 int 12Gb/s SAS3 ports, x8 Gen4, HBA - LP,122HDDw/exp,R | |
| Backplane | BPN-SAS3-826SEL1-N4 | 2 | 12-port 2U Simply-Double SAS3 12Gbps single-expander backplane, support up to 8x 3.5-inch SAS3/SATA3 HDD and 4x NVMe/SAS3/SATA3 storage devices | |
| Cable | CBL-0296L | 2 | 9" 4 PIN FAN PWS EXTENSION CORD, PBF | |
| Cable | CBL-PWEX-0702 | 1 | 8 Pin Female to RA(Right Angle) Big 4 Pin Female Power, 32cm | |
| Cable | CBL-SAST-0836 | 2 | MINI SAS HD,INT,48CM,32AWG w/oSB | |
| Cable | CBL-SAST-1264-100 | 1 | Slimline x8 (STR) to 2x MiniSAS HD x4,65CM,100 OHM,RoHS | |
| Cable | CBL-0459L | 2 | AC Power Cord Latch Clamp | |
| Cable | CBL-CDAT-0728 | 1 | 4 Pin to 4 Pin I2C Cable, 65cm, 26AWG, 4 Wires, Pinout 1-1 | |
| Cable | CBL-PWEX-0901 | 2 | BPN PWEX,2X4F to 2X4F,GPU,P4.2,BLK*4,YEL*2,RED*2,33CM,18AWG, | |
| Cable | CBL-PWEX-0903 | 2 | BPN2GPU,2X4F to 2X4F,P4.2,BK*4/YL*2/RD*2,63.5CM,18AWG,RoHS | |
| Cable | CBL-PWEX-1042-05 | 2 | [NR]GPU,(2x4F to 2x4F),P4.2,5CM,16AWG,10A/pin,RoHS | |
| Software | SFT-OOB-LIC | 1 | License key for enabling OOB BIOS management | |
| Heatsink / Retention | SNK-P0077V | 2 | X12 ICX/CPX CPU Heatsink (78x113x25.5mm), VC Base, Cu Fin | |
| *Power Supply | PWS-1K62A-1R | 2 | AC-DC 1600W, Titanium Level, Redundancy, 1U, DC Output: +12V and +12Vs, 203 x 73.5 x 40 mm, AC Input: 90 - 264 VAC/47-63Hz, PMBus 1.2 with DSP controller,HF,RoHS/REACH | |
| *Power Distributor | PDB-PT226S-3824 | 1 | 2U Simply double PDB support redundant power 2.6KW for CS226 | |
| *Fan | FAN-0154L4 | 2 | 40x40x28 mm, 22.5K RPM, SC813MF Middle Cooling Fan,RoHS/REACH | |
| *Fan | FAN-0168L4 | 5 | 80x80x38 mm, 13.5K RPM, Middle Cooling Fan for SC226S Chassis (48-bay) | |
| *Front Panel | FPB-TB826-T | 1 | Chassis transfer board for SC826 | |
| *Drive Tray(s) | MCP-220-00133-0B | 24 | Black gen 8 hot-swap 3.5\" HDD tray | |
| *Drive Tray(s) | MCP-290-82607-0N | 2 | 826B/216B rear dummy cover for 2 X 2.5 | |
| *Rear Window | MCP-240-82620-0N | 1 | SC826S2 rear window w/ 3x LP and 1x AIOM slots for X12DSC | |
| *Rail Set | MCP-290-00168-0N | 1 | Cable Management Arm, 1U height, 7.5 deep cable arm | |
| *Air Shroud | MCP-310-82615-0B | 1 | 1U air shroud set for CSE-826S2 to support X12DSC-A6 | |
| *Air Shroud | MCP-310-82616-0B | 1 | 1U air shroud for CSE-826S2 to support rear drive kits |
