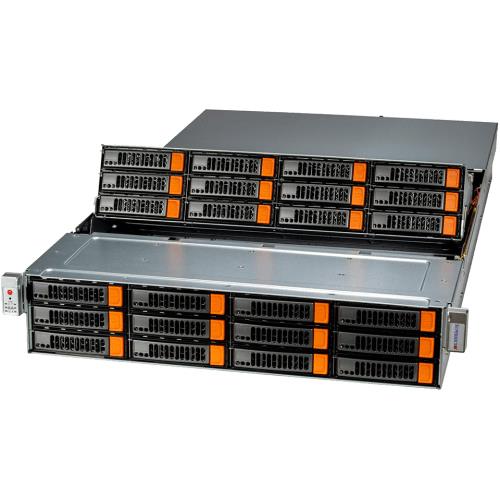

Supermicro SSG-620P-E1CR24L Storage 2U Barebone Dual Intel Xeon Scalable Processors 3rd Generation
• Enterprise Server
• iSCSI SAN
• HPC, Data Center
• Database Processing & Storage
• Corporate Database
• Appliance Optimized Storage Building Blocks
Barebone 2U Rackmount SuperServer, Supports Dual Socket P+ (LGA-4189), Supporting Intel Xeon Scalable Processors 3rd Generation (Up to 38C/76T) Up to 57MB Cache per CPU), Intel C621A, Supports Up to 4TB DDR4-3200MHz L/RDIMM in 16 DIMM slots, On-Board: Controller via Broadcom 3808 (HBA mode), 24x 3.5in Hot-Swap SATA3/SAS3 drive bays, 2 M.2 NVMe OR 2 M.2 SATA3, Network Controller: 2x 10GbE Base-T, 1 Dedicated IPMI LAN port, 2 SuperDOM (Disk on Module) port, 1600W Power Supply, (SSG-620P-E1CR24L + X12DSC-A6)
1. Dual socket 3rd Gen Intel® Xeon® Scalable processors, up to 72 Cores Per Node
2. 16 ECC DDR4-3200: LRDIMM/RDIMM
3. Dedicated PCIe 4.0 AIOM slot 3 x PCIe 4.0 x16 Slots
4. Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN per node
5. 24 3.5" Hot-swap SAS3/SATA3 drives, 4 x Rear SATA/NVMe Slots, 2x SATA/NVMe M.2 (form factor: 2280)
6. 5x 8cm hot-swap counter-rotate redundant PWM cooling fans
7. 1600W Redundant Power Supplies Titanium Level (96%)
8. HBA Controller support via Broadcom® 3808
Extra Specifications for Supermicro SSG-620P-E1CR24L Storage 2U Barebone Dual Intel Xeon Scalable Processors 3rd Generation
| Motherboard | ||
| Motherboard | Super X12DSC-A6 | |
| Processor | ||
| CPU | 3rd Gen Intel® Xeon® Scalable processors | |
| Dual Socket P+ (LGA-4189) | ||
| Support CPU TDP 120-205W | ||
| Cores | Up to 38C/76T; Up to 57MB Cache | |
| System Memory | ||
| Memory | Memory Capacity: 16 DIMM slots | |
| Memory Type: 3200MHz ECC DDR4 RDIMM;LRDIMM | ||
| Up to 4TB: 16x 256 GB DRAM | ||
| Memory Voltage | 1.2 V | |
| Error Detection | ECC | |
| On-Board Devices | ||
| Chipset | Intel® C621A | |
| Network Connectivity | 2x 10GbE BaseT with Intel® X550 | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Input / Output | ||
| LAN | 1 RJ45 Dedicated IPMI LAN port | |
| USB | 2 USB 3.0 port(s) (2 Rear_USB) | |
| Video | 1 VGA port(s) | |
| Serial Port | 1 COM Port(s) (1 rear) | |
| DOM | 2 Super DOM (Disk on Module) port | |
| System BIOS | ||
| BIOS Type | AMI 128MB SPI Flash EEPROM | |
| Management | ||
| Software | Watch Dog | |
| NMI | ||
| SuperDoctor® 5 | ||
| IPMI 2.0 | ||
| SUM | ||
| Power Configurations | Power-on mode for AC power recovery | |
| ACPI Power Management | ||
| PC Health Monitoring | ||
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory | |
| 4+1 Phase-switching voltage regulator | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for fan connectors | ||
| Chassis | ||
| Form Factor | 2U Rackmount | |
| Model | CSE-826STS-R1K62P1 | |
| Dimensions and Weight | ||
| Height | 3.5" | |
| Width | 17.2" | |
| Depth | 34" | |
| Package | 12" (H) x 29" (W) x 52" (D) | |
| Weight | Net Weight: 52 lbs (23.59 kg) | |
| Gross Weight: 74.5 lbs (33.79 kg) | ||
| Available Color | Silver | |
| Front Panel | ||
| Buttons | Power On/Off | |
| LEDs | HDD activity | |
| Power status | ||
| Network activity | ||
| System information (overheat/UID) | ||
| Drive Bays / Storage | ||
| Hot-swap | 24x 3.5" hot-swap SATA3/SAS3 drive bays | |
| M.2 | 2 M.2 NVMe OR 2 M.2 SATA3 | |
| System Cooling | ||
| Fans | 5 Heavy Duty 8cm Fan(s) | |
| Power Supply | ||
| Dimension (W x H x L) | 73.5 x 40 x 203 mm | |
| AC Input | 1000W: 100-127Vac / 50-60Hz | |
| 1600W: 200-240Vac / 50-60Hz | ||
| +12V | Max: 83A / Min: 0A (100Vac-127Vac) | |
| Max: 133A / Min: 0A (200Vac-240Vac) | ||
| 12V SB | Max: 2.1A / Min: 0A | |
| Output Type | Gold Finger Connector | |
| Certification | Titanium Level | |
| Operating Environment | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
| Operating Relative Humidity: 8% to 90% (Non-Condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (Non-Condensing) | ||
| Product SKUs | ||
| Product SKUs | SSG-620P-E1CR24L | |
| Expansion Slots | ||
| PCI-Express (PCIe) | 1 PCIe 4.0 x16 AIOM slot(s) | |
| 2 PCIe 4.0 x16 LP slot(s) | ||
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| Converter Tray | MCP-220-00140-0B • | 0 | Black gen 8 hot-swap 3.5-to-2.5 Tool-less HDD tray, orange tab | |||
| Network Cards | More | 0 | AOC Compatibility Matrix (Select Storage & Generation) | |||
| Network Cards | AOC-S25G-M2S | $ 204.00 | 0 | Standard LP, 2x 25GbE SFP28, Mellanox ConnectX-4 LX EN | ||
| Network Cards | AOC-S40G-I2Q | $ 377.00 | 0 | Standard LP 2-port 40GbE controller, Intel Fortville XL710 | ||
| Network Cards | AOC-SGP-I2 • | 0 | Standard LP 2-port GbE, Intel 82575 | |||
| NVMe Kit (1-2 NVMe Drive Support) | MCP-220-82620-0N | $ 115.00 | 1 | NVMe cage, includes BPN and drive trays | ||
| NVMe Kit (1-2 NVMe Drive Support) | CBL-SAST-1244-85 | $ 40.50 | 1 | Slimline x8 to Slimline x8 Cable, 45 CM - used for 1st NVMe cage | ||
| NVMe Kit (1-2 NVMe Drive Support) | CBL-PWEX-0702 • | 1 | Power Cable | |||
| NVMe Kit (1-2 NVMe Drive Support) | CBL-PWEX-1276 | $ 21.50 | 1 | Power Cable | ||
| NVMe Kit (3-4 NVMe Drive Support) | MCP-220-82620-0N | $ 115.00 | 2 | NVMe cage, includes BPN and drive trays | ||
| NVMe Kit (3-4 NVMe Drive Support) | CBL-PWEX-1276 | $ 21.50 | 2 | Power Cable | ||
| NVMe Kit (3-4 NVMe Drive Support) | CBL-PWEX-0702 • | 1 | Power Cable | |||
| NVMe Kit (3-4 NVMe Drive Support) | CBL-SAST-1244-85 | $ 40.50 | 1 | Slimline x8 to Slimline x8 Cable, 45 CM - used for 1st NVMe cage | ||
| NVMe Kit (3-4 NVMe Drive Support) | CBL-SAST-1267-85 | 1 | Slimline x8 to Slimline x8 Cable, 67 CM - used for 2nd NVMe cage | |||
| Power Cord | CBL-PWCD-0579-1 | $ 23.00 | 0 | Power Cord Type IEC (C14 to C13) 6 ft (14AWG), 15A, 250V | ||
| Power Cord | CBL-PWCD-0300-IS | $ 20.00 | 0 | PWCD,US,IEC60320 C14 TO C13,6FT,18AWG,RoHS/REACH | ||
| Power Cord | CBL-PWCD-0579 | $ 23.00 | 0 | Power Cord Type IEC (C14 to C13) 6 ft (14AWG), 15A, 250V | ||
| Short Rail | MCP-290-11808-0N | $ 171.50 | 0 | Supermicro 1U Rail Kit (Note: If short rail is used, system will not support cable management arm) | ||
| TPM | AOM-TPM-9671V-O | 1 | TPM 1.2, vertical form factor, provisioned for server | |||
| TPM | AOM-TPM-9670V-O • | 1 | TPM 2.0, vertical form factor, provisioned for server |
| Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 1 year, 2 weeks afterward |
